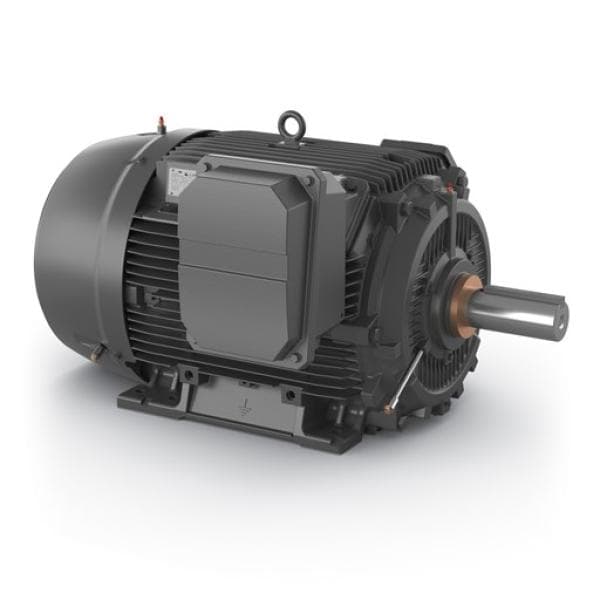

SD100 IEEE841 Motor – 1 to 400 HP, Cast Iron, IP55/IP66, Inverter Duty

Product Details

Quantity

100
Availability (Lead Time)

4-6 Weeks
Product Location

United States
Condition

New
Equipment code

CFIHOS-30000340

Get Quotation Whatsapp

Short Description

SD100 IEEE841 motor with cast iron frame and Inpro/Seal® isolators, rated 1–400 HP. Compliant with Class I & II Div 2 hazardous locations, IP55/IP66 rated, and inverter duty per NEMA MG1 Part 31. Engineered for high reliability and low vibration.

Description

SD100 IEEE841 Motor – 1 to 400 HP, Cast Iron, IP55/IP66, Inverter Duty

The SD100 IEEE841 Motor is an industrial-grade solution developed to exceed IEEE Std. 841 requirements, delivering maximum reliability, energy efficiency, and mechanical durability for demanding applications. Ranging from 1 to 400 horsepower (0.75 to 298 kW), this series is available in NEMA frame sizes 143 to S449, supporting 208-230/460, 230/460, 460, and 575 volts across 2, 4, 6, and 8 pole configurations.

Built with a heavy-duty cast iron frame, the SD100 IEEE841 Motor features IP55 protection as standard, with optional IP66 enclosures for extreme environmental resistance. The motor includes Inpro/Seal® bearing isolators on both ends to eliminate shaft leakage paths and prevent contamination, significantly extending bearing life and reducing downtime.

Automatic grease relief fittings maintain optimal lubrication, preventing over-greasing, while the cast iron, diagonally split terminal box and stainless steel embossed nameplate ensure lasting resilience in corrosive conditions. Epoxy-coated hardware and exterior surfaces add further protection.

Designed for hazardous environments, the motor complies with Class I, Division 2 and Class II, Division 2 standards, offering operational safety in explosive atmospheres. It operates at exceptionally low vibration levels (0.06 IPS), which extends equipment life and improves system reliability.

Inverter-ready per NEMA MG1 Part 31, the SD100 IEEE841 series supports variable torque (20:1) and constant torque (20:1 for frames 140–360) on 2, 4, 6 pole motors, and constant torque (4:1) for all other configurations, making it ideal for controlled speed applications in process-critical industries.

Specifications:

– Motor Type: IEEE Std. 841 Severe Duty Three-Phase Motor
– Horsepower Range: 1 – 400 HP (0.75 – 298 kW)
– NEMA Frame Sizes: 143 – S449
– Voltage Options: 208-230/460, 230/460, 460, 575 V
– Pole Configurations: 2, 4, 6, 8 poles
– Enclosure Protection: IP55 standard, optional IP66
– Construction: Heavy-duty cast iron frame and terminal box
– Terminal Box: Oversized, diagonally split cast iron
– Nameplate: Stainless steel, embossed
– Shaft Seals: Inpro/Seal® bearing isolators (both ends)
– Lubrication: Automatic grease relief system
– Coating: Epoxy paint for corrosion resistance
– Insulation Class: Class F
– Temperature Rise: NEMA Class B
– Mounting Options: Foot-mounted, C-Face, D-Flange
– Hazardous Area Compliance:
• Class I, Division 2
• Class II, Division 2
– Vibration: ≤ 0.06 IPS

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
