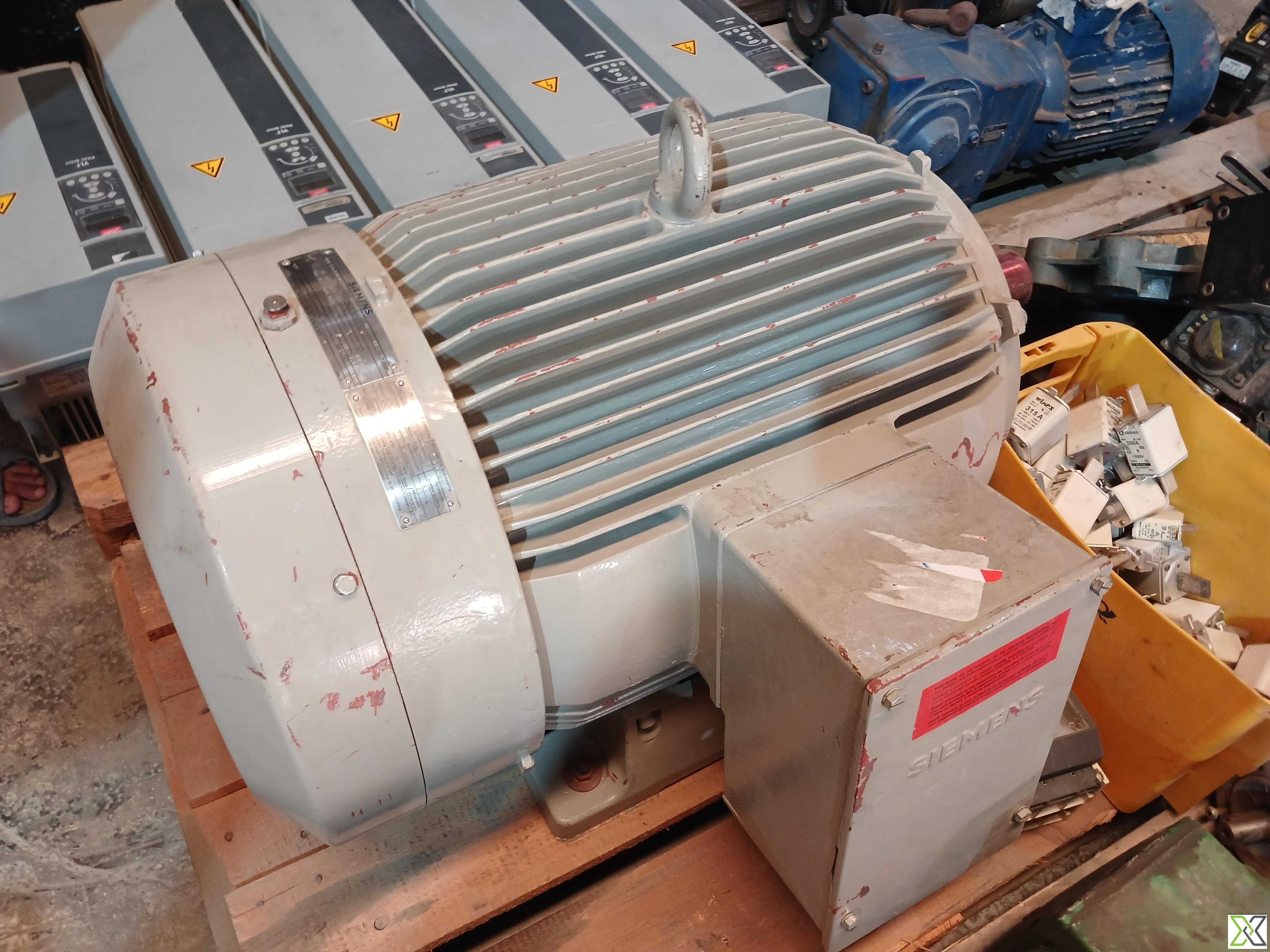

Siemens 1LA8 280-100L 07 Three-Phase AC Induction Motor

ReflowX SKU: REF-4736

Product Details

Quantity

1
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

Surplus
OEM

ReflowX
Equipment code

CFIHOS-30000340

Get Quotation Whatsapp

Short Description

High-efficiency 3-phase AC induction motor from Siemens, rated at 75 kW with IP54 protection, TEFC cooling, and durable bearings for industrial drive applications.

Description

Siemens 1LA8 280-100L 07 Three-Phase AC Induction Motor

The Siemens 1LA8 280-100L 07 is a robust and reliable 3-phase AC induction motor designed for continuous-duty industrial applications. Manufactured in Germany, this motor delivers up to 75 kW of power with a standard operating speed of 1480 RPM at 50 Hz. Featuring a power factor between 0.83 and 0.86, the motor ensures efficient energy usage. It supports a 3 x 400 V power supply and offers excellent protection with an IP54 rating and B-class insulation. Built in B3 mounting configuration, the motor is cooled using the IC411 (TEFC) method, ensuring minimal maintenance and long service life. High-quality bearings (NU217 at the drive end and 6317 at the non-drive end) and reliable lubrication using DIN 51825-K3K grease make it ideal for demanding operating conditions.

Specifications:

– Manufacturer: Siemens
– Country of Origin: Germany
– Model / Type: 1LA8 280-100L 07
– Motor Type: 3-Phase AC Induction Motor
– Rated Power: 51 / 75 kW
– Rated Current: 134 / 170 A
– Rated Voltage: 3 × 400 V
– Speed: 1480 RPM
– Frequency: 50 Hz
– Power Factor (cos φ): 0.83 / 0.86
– Protection Class: IP54
– Insulation Class: B
– Mounting Type: B3 (Foot Mounted)
– Cooling Method: IC411 (TEFC – Totally Enclosed Fan Cooled)
– D-End Bearing: NU217
– N-End Bearing: 6317
– Lubrication Grease: DIN 51825 - K3K
– Relubrication Interval at 25°C: 8,000 hours
– Relubrication Interval at 40°C: 4,000 hours
– Certification: VDE 0530
– Weight: Approx. 233 kg
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	1LA8 280-100L 07
Model Number	1LA8 280-100L 07
Weight	233 kg
Voltage	3 x 400 V
ISO 15926 Pt 4	2752
PCA RDS Code	RDS415124
Speed	1480 RPM
Direction of Rotation	Clockwise
IFC Class	IfcElectricMotor
Normal Output Power	51 / 75 kW
UNSPSC Code	26101600
