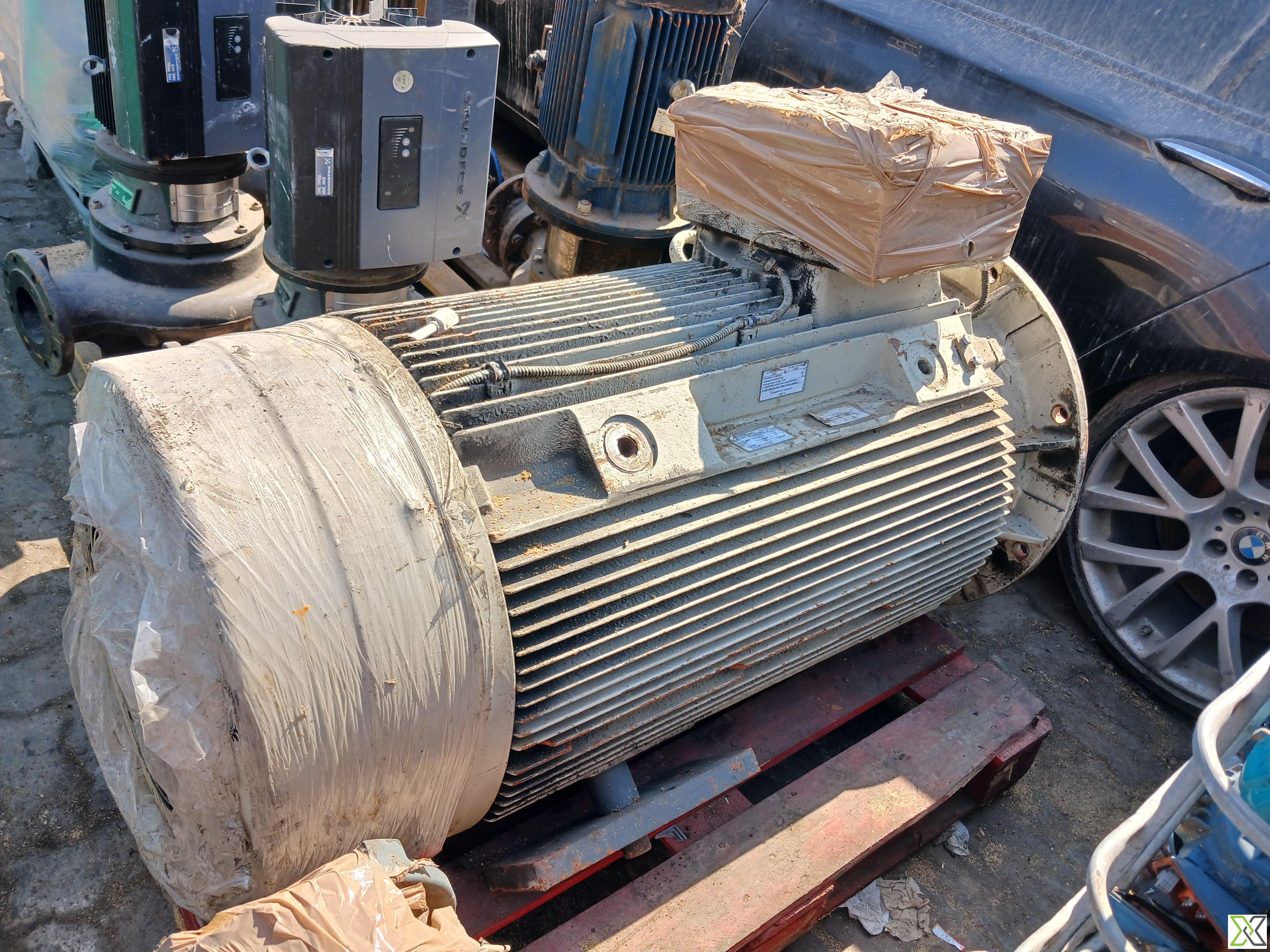

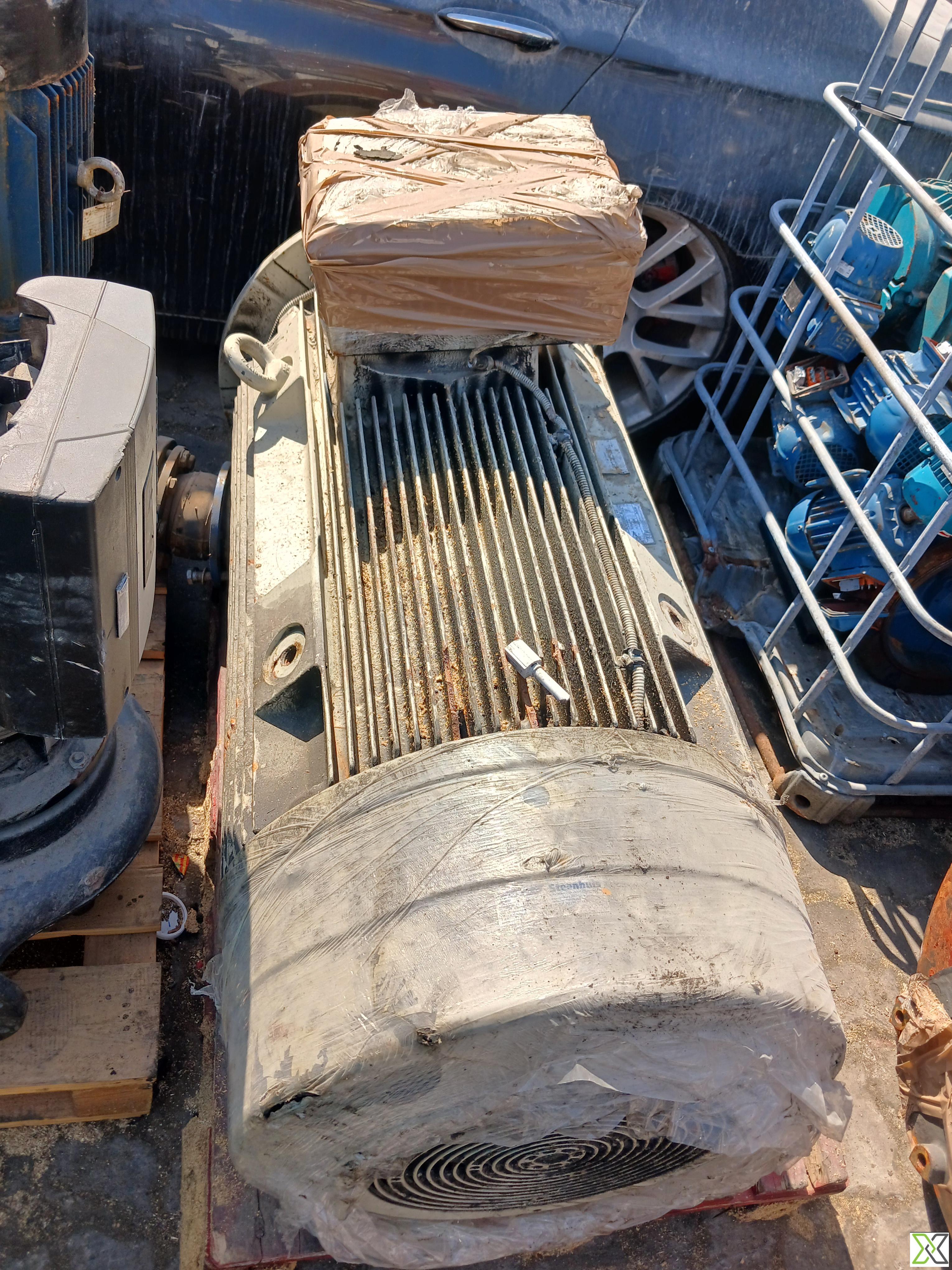

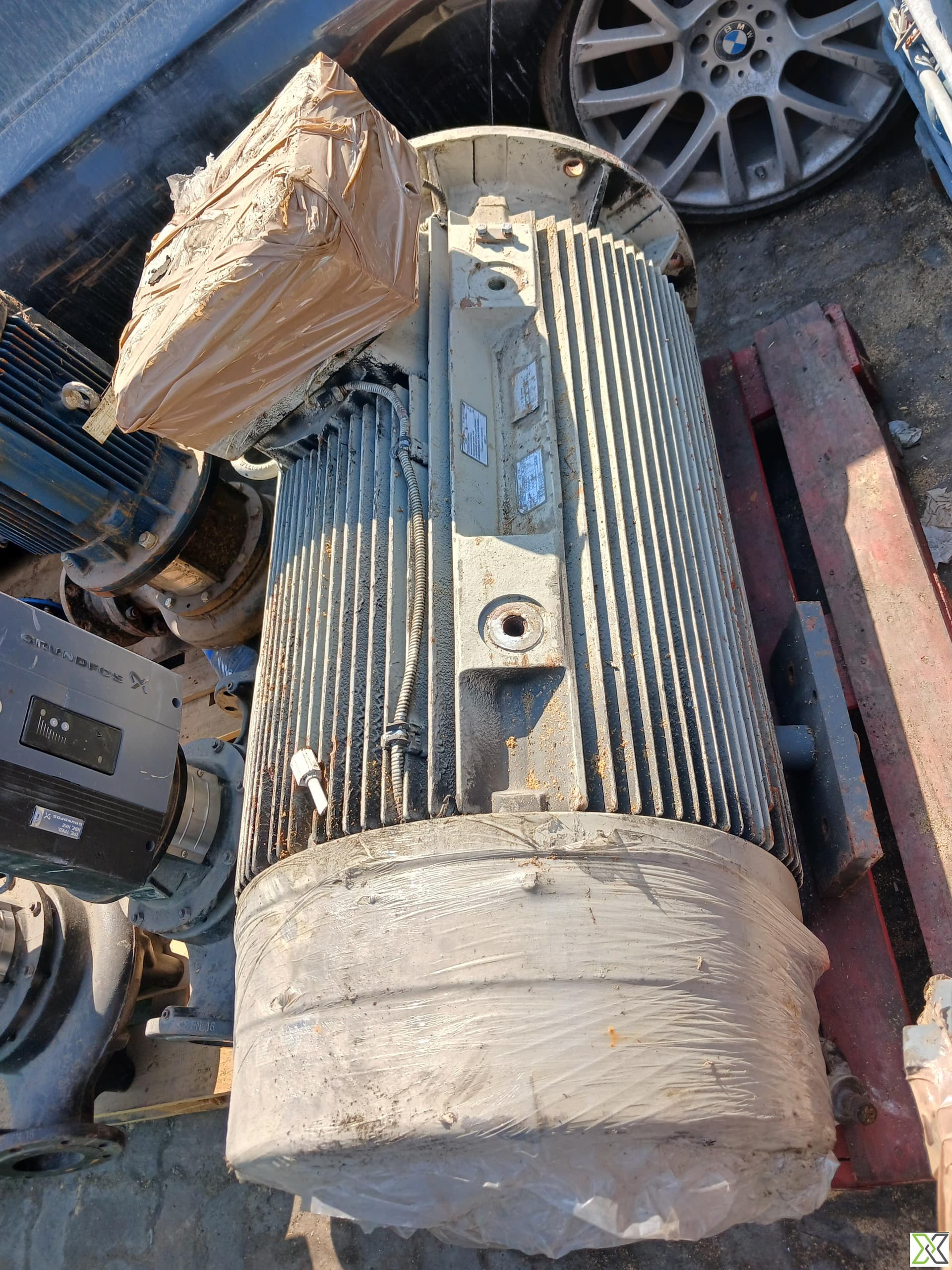

Siemens Electric Motor Model No.: 1LG6374-4AA92-Z

ReflowX SKU: REF-7003

Product Details

Quantity

1
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

Surplus
OEM

Siemens
Equipment code

CFIHOS-30000340

Get Quotation Whatsapp Chat With Seller

Short Description

Manufacturer: Siemens Model No.: 1LG6374-4AA92-Z Country of Origin: Germany Motor Type: IE2 Efficiency Class Power Rating: 35 kW

Description

Siemens 1LG6374-4AA92-Z – Technical Specifications

General Information

Manufacturer: Siemens

Model Number: 1LG6374-4AA92-Z

Country of Origin: Germany

Motor Type: 3-Phase Asynchronous Motor (IE2 Efficiency Class – High Efficiency)

Application: Heavy-duty industrial applications, pumps, fans, compressors

Electrical Specifications

Power Rating: 35 kW (Efficient power output for various industrial applications)

Voltage Options:

400V (Δ) (Delta connection)

690V (Y) (Star connection)

Current: 66 A (At 400V in delta configuration)

Frequency: 50 Hz (Standard industrial frequency)

Power Factor (cos φ): 0.87 (High efficiency with better energy utilization)

Efficiency Class: IE2 (Energy-efficient per IEC 60034 standards)

Mechanical Features

Speed: 1470 RPM (4-pole motor running near synchronous speed)

Mounting Type: IM B5 (Flange-mounted motor for specific installation needs)

Frame Size: Likely 200 – 225 (Estimated based on power rating)

Cooling Type: IC411 (Totally Enclosed Fan Cooled – TEFC for industrial use)

Bearings: Heavy-duty bearings (Designed for extended operational life and low maintenance)

Housing Material: Cast Iron (Durable and corrosion-resistant body)

Thermal & Protection Details

Insulation Class: F (Handles operating temperatures up to 155°C)

Protection Class: IP55 (Dust-protected and resistant to water jets)

Duty Cycle: S1 (Continuous duty operation without overheating risks)

Thermal Protection: Likely PTC / PT100 sensors (For overheating prevention)

Vibration Level: A (Standard) / B (Precision) (Ensures smooth operation in industrial environments)

Physical Characteristics

Weight: ~350 – 450 kg (Estimated based on frame size and material)

Shaft Diameter: ~55 – 65 mm (Based on standard motor sizing)

Flange Size: B5 (Flange-mounted motor with large faceplate for secure installation)

Standard Compliance

IEC 60034-1: International standard for electrical motor performance

DIN VDE 0530: German electrical and mechanical motor design standard

ISO 9001: Quality assurance standard for manufacturing

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	1LG6374-4AA92-Z
Model Number	1LG6374-4AA92-Z
Weight	~350 – 450 kg
CFIHOS ID	CFIHOS-30000340
Color	Gray
ISO 15926 Pt 4	2752
PCA RDS Code	RDS415124
CFIHOS ID	CFIHOS-30000340
Direction of Rotation	counterclockwise
IFC Class	IfcElectricMotor
Explosion Protection Gas Group	Group IIB
Explosion Protection Temperature Class	Temperature Class T3
Explosion Protection Zone	Zone 2
Normal Output Power	15 kW
UNSPSC Code	26101600
