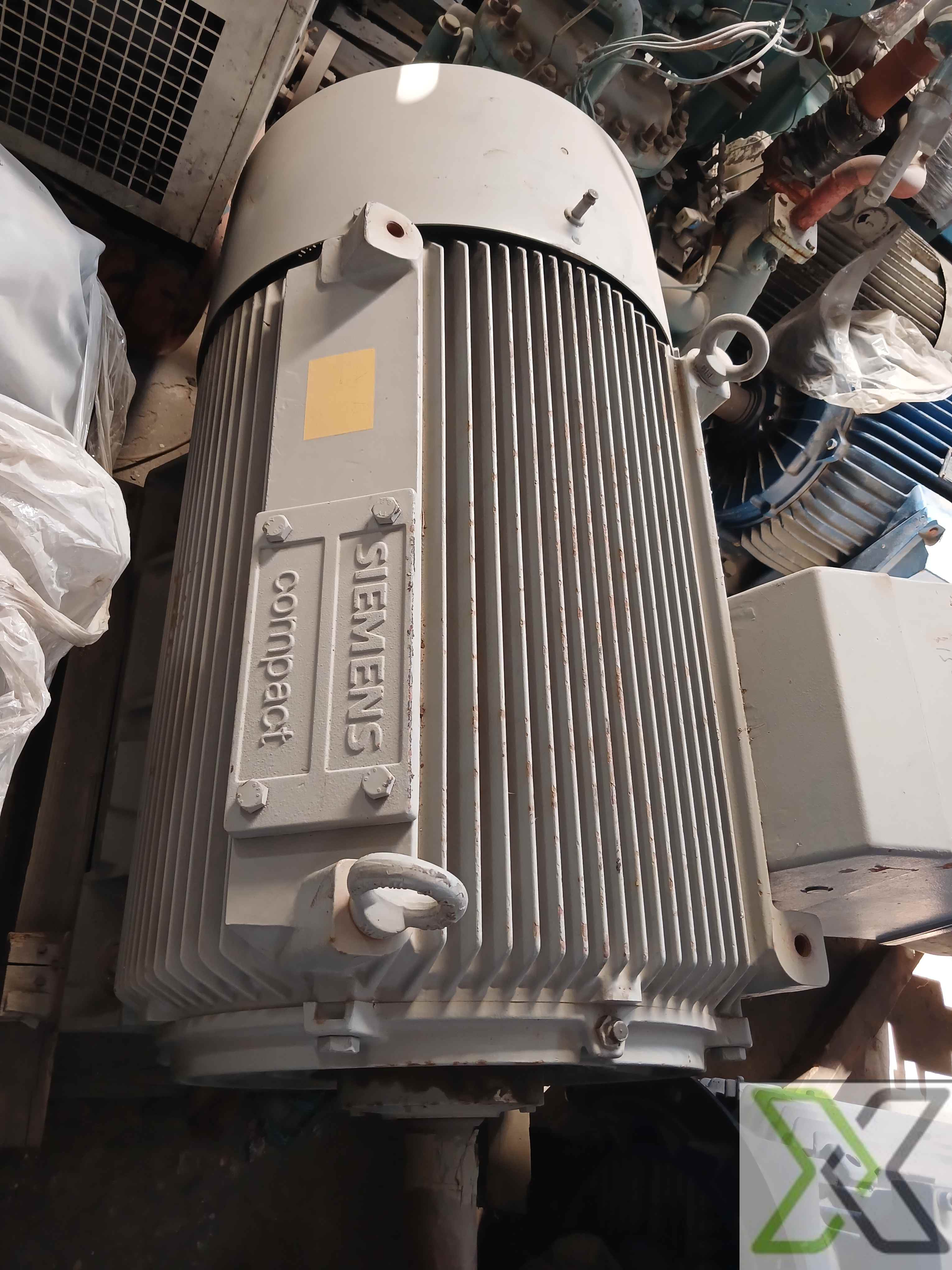

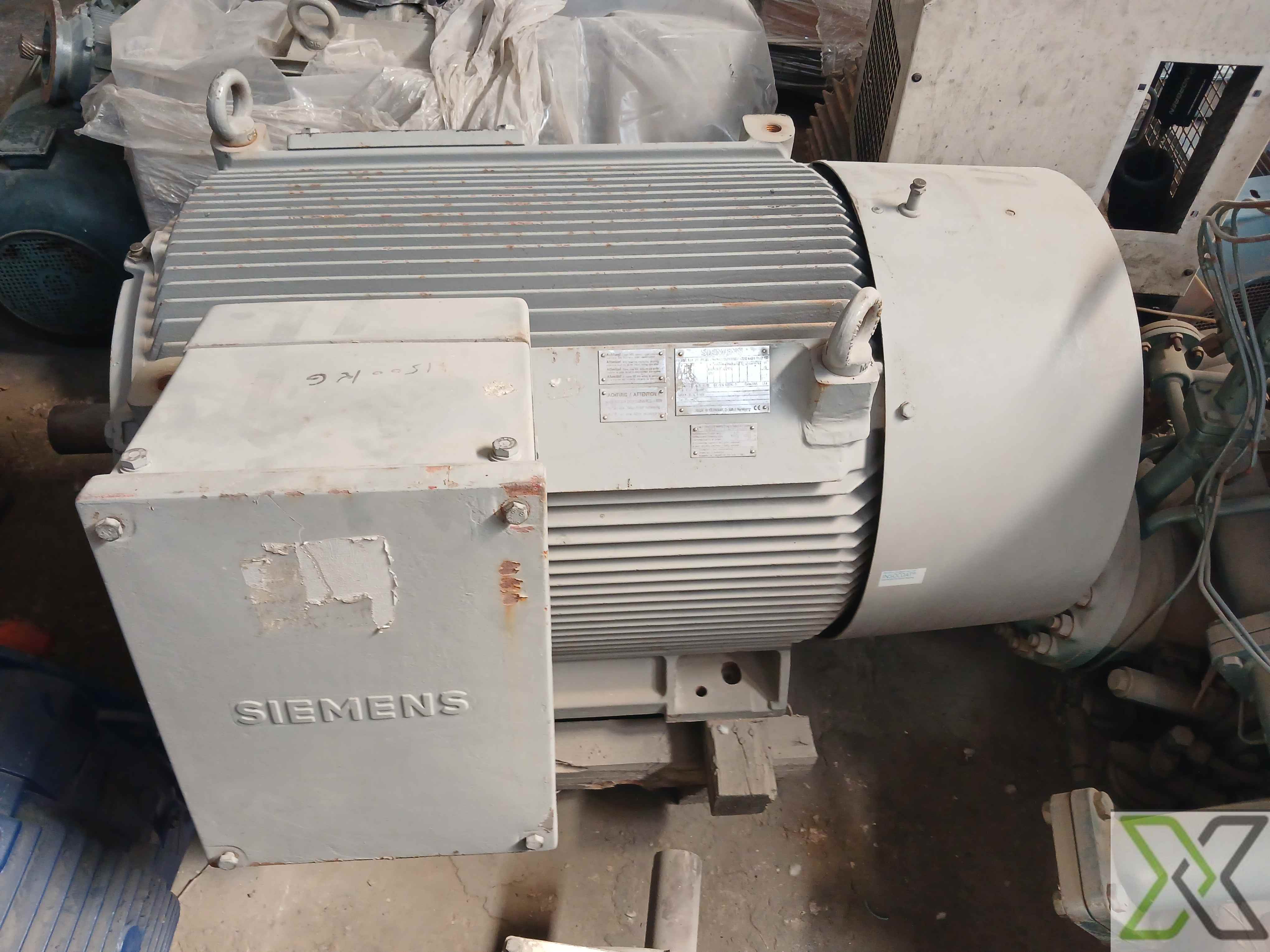

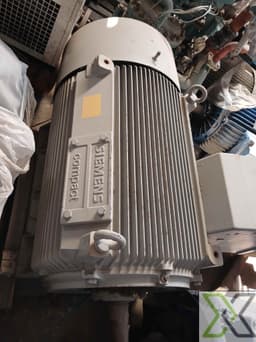

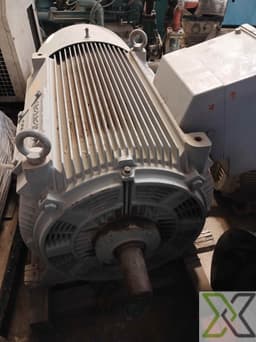

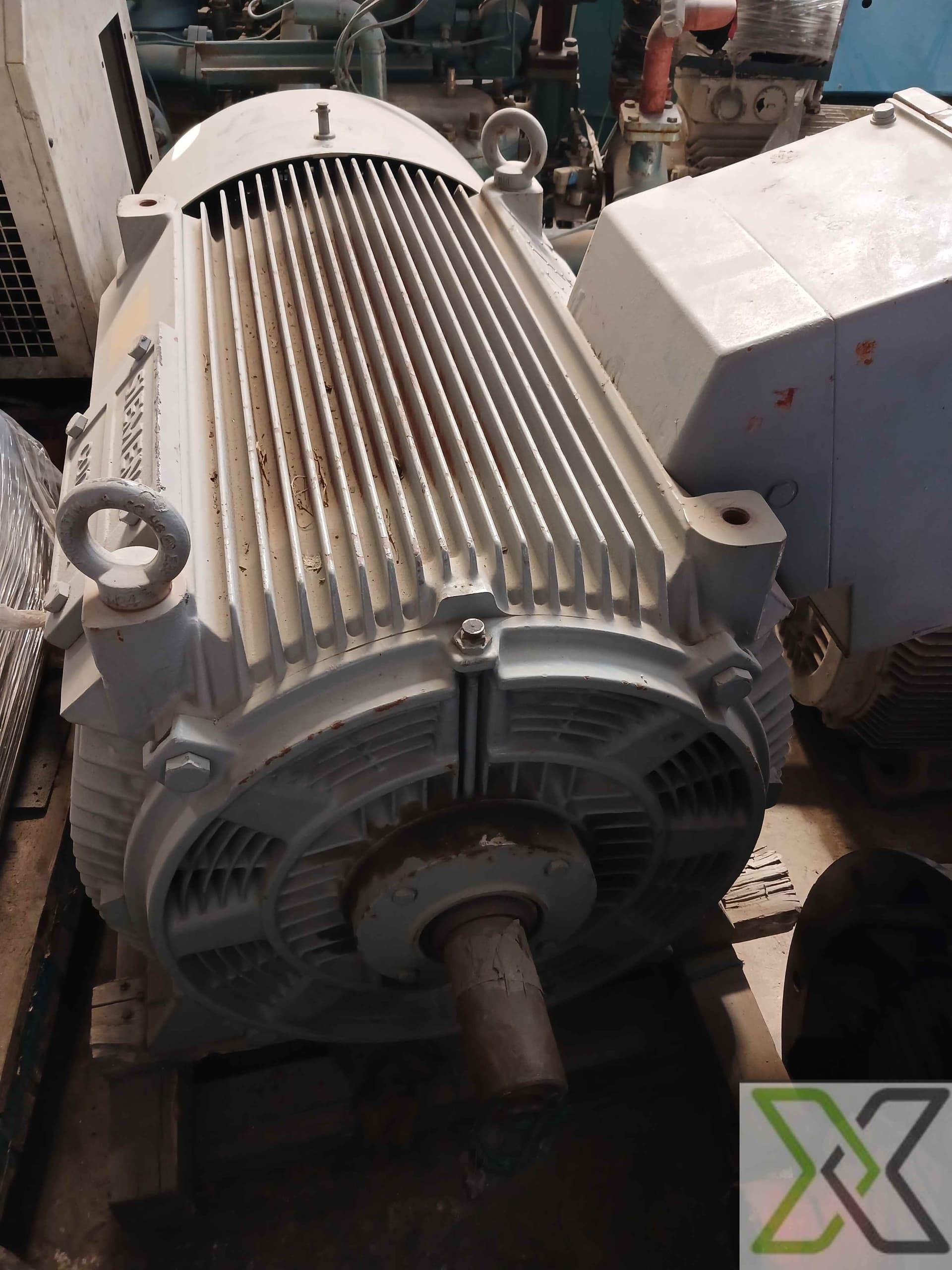

Siemens 1LA7-2PC80-Z Industrial Motor

GENERAL INFORMATION

Brand: Siemens

Model: 1LA7-2PC80-Z

Type: Three-Phase Asynchronous Motor

Application: Industrial Machinery, Heavy-Duty Applications

Country of Manufacture: Germany

TECHNICAL SPECIFICATIONS

Power Output: 650 kW / 375 kW

Voltage: 400V

Frequency: 50Hz

Maximum Speed: 3600 RPM

Phase: Three-Phase

Efficiency Class: IE3 / IE4 (Depending on configuration)

Insulation Class: F (Higher thermal endurance)

Duty Cycle: S1 (Continuous Duty)

Service Factor: 1.15

MECHANICAL FEATURES

Frame Material: High-Strength Cast Iron

Cooling Type: IC411 (Totally Enclosed Fan Cooled - TEFC)

Protection Class: IP55 (Dust Protected, Water Jet Resistant)

Mounting Type: Horizontal / Foot-Mounted (B3) or Optional Configurations

Bearings: Heavy-Duty Roller Bearings for High-Speed Applications

Vibration Level: IEC 60034-14 Compliance

OPERATIONAL CONDITIONS

Operating Temperature Range: -20°C to +55°C

Altitude Rating: ≤1000 m above sea level

Lubrication: Long-Life Grease (Synthetic)

Noise Level: ≤80 dB(A) (Depending on Load Conditions)

CERTIFICATIONS & COMPLIANCE

CE Certified: Yes

ISO 9001 Compliance: Yes

ATEX Certified: Optional for Hazardous Environments

IEC Standards: IEC 60034-1, IEC 60072

DIMENSIONS & WEIGHT

Weight: (Varies based on configuration, typically over 1000 kg)

Shaft Diameter: (Dependent on model variant)

Mounting Hole Spacing: As per IEC Standard Frame Sizes

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
