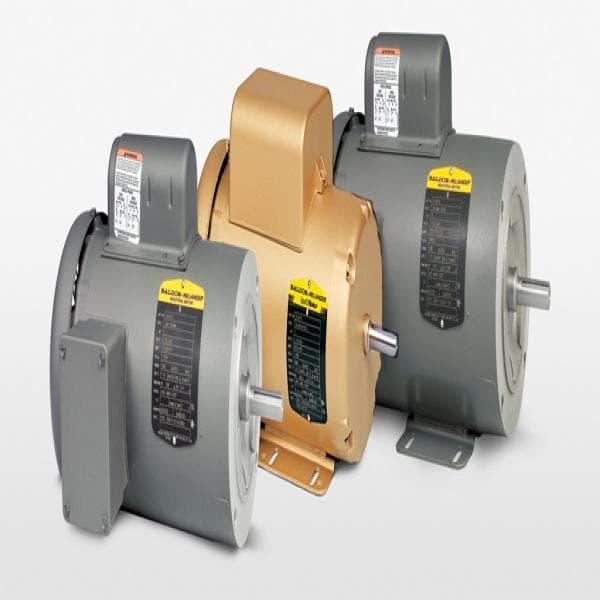

Single Phase Enclosed Motor – General Purpose, 1/12 to 15 hp, TEFC, Premium Efficiency Options

The General Purpose Single Phase Enclosed Motor series is designed for dependable performance in environments that require protection from dust, debris, and moisture. Featuring a Totally Enclosed Fan Cooled (TEFC) enclosure, these motors are ideal for both indoor and outdoor use in industrial, commercial, and agricultural settings.

Available from 1/12 hp to 15 hp, with Super-E® Premium Efficient options ranging from 1/4 to 5 hp, these motors help reduce operational energy costs while delivering consistent power and performance. Their low-noise vibration-dampening base ensures quiet operation, while a dynamically balanced rotor enhances bearing life and smooth functionality.

Flexible mounting options include standard foot-mounted, C-Face with foot, and C-Face without foot configurations. Constructed using heavy gauge steel, these motors are built for long-lasting operation under demanding conditions. A superior internal switch design ensures optimized starting torque and efficient control, making these motors a reliable choice for a wide range of single-phase power applications.

Specifications:

– Motor Type: General Purpose Single Phase Enclosed Motor
– Enclosure: Totally Enclosed Fan Cooled (TEFC)
– Horsepower Range: 1/12 to 15 hp
– Premium Efficiency Range: 1/4 to 5 hp (Super-E®)
– NEMA Frame Sizes: 42 to 250T
– Voltage Options: 115/208–230V, 115/230V
– Mounting Options:

Standard foot-mounted

C-Face with foot

C-Face without foot
– Rotor: Dynamically balanced for smooth operation and longer life
– Base: Vibration-dampening, low-noise operation
– Switch Design: High-performance switch system for torque optimization
– Construction: Heavy gauge steel frame for industrial durability
– Insulation Class: Class F
– Service Factor: 1.15
– Applications: HVAC, compressors, pumps, conveyors, fans, and general machinery
