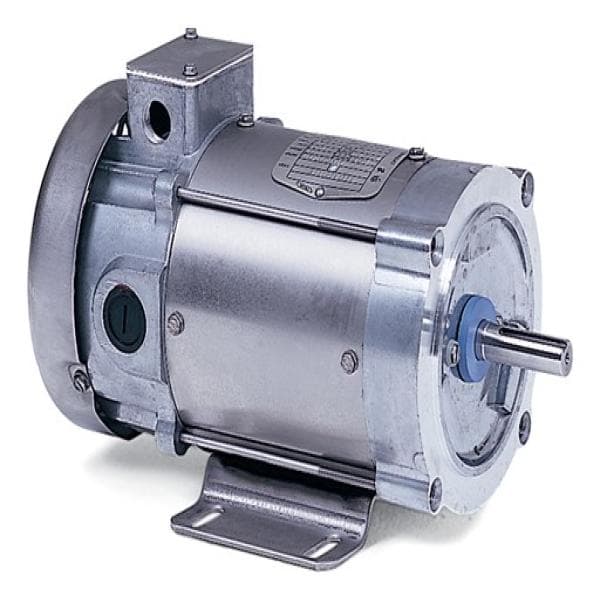

Stainless PM Motor – 1/4 to 1 HP, 300 Series Stainless Steel, 20:1 Constant Torque

Product Details

Quantity

100
Availability (Lead Time)

4-6 Weeks
Product Location

United States
Condition
Equipment code

CFIHOS-30000340

Get Quotation Whatsapp

Short Description

Compact stainless steel permanent magnet motor with 1/4 to 1 HP output, Class F insulation, and 20:1 constant torque. Designed for hygienic and high-moisture industrial environments.

Description

Stainless PM Motor – 1/4 to 1 HP, 300 Series Stainless Steel, 20:1 Constant Torque

The Stainless PM Motor is specifically engineered for demanding environments where hygiene and moisture resistance are paramount. Offering reliable performance in applications such as food processing, pharmaceuticals, and washdown-rated facilities, this motor combines a compact footprint with durable and efficient operation.

Available from 1/4 to 1 horsepower, the motor is designed for high efficiency and flexible operation with a 20:1 constant torque speed range. Constructed entirely from 300 series stainless steel, including the frame, base, shaft, and hardware, the motor provides superior corrosion resistance and longevity in wet and chemically exposed environments.

Moisture-resistant 200°C magnet wire and sealed ball bearings lubricated with moisture-resistant grease ensure consistent performance and protection against environmental degradation. Contact lip seals on the shaft extensions and neoprene gaskets further protect against ingress, ensuring reliable operation even in the harshest conditions.

Class F insulation enables operation under elevated temperatures, while its smooth, easy-to-clean surfaces meet the sanitary requirements of the most demanding industries.

Specifications:

– Motor Type: Stainless Steel Permanent Magnet (PM) Motor
– Horsepower Range: 1/4 to 1 HP
– Speed Range: 20:1 constant torque
– Insulation: Class F
– Construction Material:
• Frame, base, shaft, and hardware: 300 series stainless steel
• Magnet wire: Moisture-resistant rated at 200°C
– Bearings: Sealed ball bearings with moisture-resistant grease
– Seals: Contact lip seals on shaft extensions
– Gaskets: Neoprene for enhanced environmental sealing
– Enclosure: Totally Enclosed, Washdown Duty
– Applications: Food processing, beverage, chemical, pharmaceutical, sanitary conveyors, washdown zones

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
