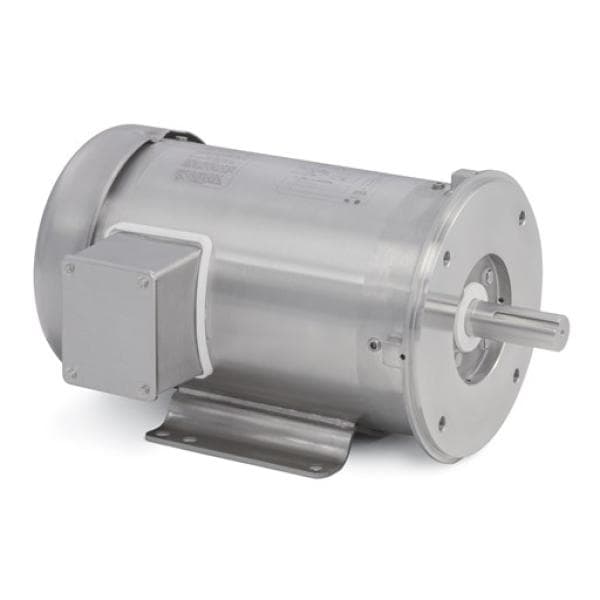

Stainless Steel Motor


Description

The Stainless Steel Motor is expertly designed for reliability and durability across various industrial applications, combining advanced features with robust construction.

Specifications include:

  • Horsepower ranging from 1/3 to 20 hp, accommodating a wide spectrum of operational needs.
  • Frame sizes from 56C to 256TC, ensuring compatibility with diverse equipment.
  • Dual voltage capacity (230/460 and 575 volts), enhancing versatility across electrical systems.
  • Available in both Totally Enclosed Fan Cooled (TEFC) and Totally Enclosed Non-Ventilated (TENV) enclosures to suit specific environmental conditions.
  • IP56 rating, offering protection against dust and high-pressure water jets.
  • Suitable for inverter-duty applications, allowing for variable speed control.
  • Constructed entirely of 300 series stainless steel for the frame, endplates, conduit box, shaft, base, and hardware, ensuring superior corrosion resistance and longevity.
  • Features a laser-etched nameplate that withstands harsh conditions without fading.
  • Includes four condensate drains in each endplate to prevent moisture accumulation.
  • Endplate rabbets are sealed to enhance structural integrity and prevent leaks.
  • The conduit box is welded directly to the frame for a robust and leak-proof seal.
  • Boasts a polished stainless steel finish for a clean, modern appearance.
  • Equipped with a rotating non-contact labyrinth seal on the drive end (DE) and opposite drive end (ODE) to minimize contamination ingress.
  • Utilizes neoprene gaskets for enhanced sealing performance.
  • Incorporates double-sealed ball bearings for increased reliability and extended service life.
