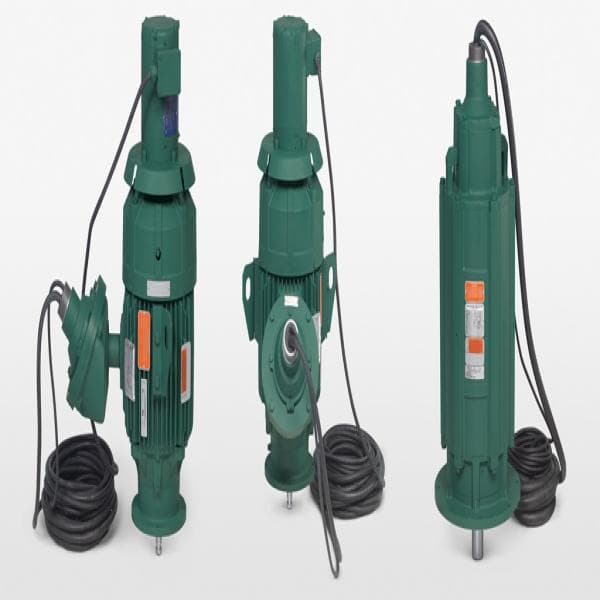

Submersible/Immersible Motor – Cast Iron, Dual Seals, Inverter Duty

Product Details

Quantity

100
Availability (Lead Time)

4-6 Weeks
Product Location

United States
Condition
Equipment code

CFIHOS-30000340

Get Quotation Whatsapp

Short Description

Heavy-duty submersible/immersible motor with cast iron construction, dual carbon ceramic seals, stainless steel shaft, and integrated moisture detection. UL listed for Division 1, Class I, Group C&D hazardous environments.

Description

Submersible/Immersible Motor – Cast Iron, Dual Seals, Inverter Duty

The Submersible/Immersible Motor is purpose-built for industrial operations where equipment must perform reliably while submerged or intermittently exposed to fluids. Engineered with all cast-iron construction and a 416 stainless steel shaft, this motor delivers superior durability and corrosion resistance in aggressive environments.

Key sealing performance is provided by dual carbon ceramic mechanical seals, offering secure isolation from water ingress. Two normally closed thermostats and dual moisture sensing probes are standard, continuously monitoring internal motor conditions to prevent failure and downtime.

Certified by UL for Division 1, Class I, Group C&D environments, this motor meets stringent safety requirements for use in hazardous areas. It operates with a 1.15 service factor, allowing performance beyond nominal ratings under variable conditions.

Designed to be inverter-duty rated, the motor supports 10:1 variable torque operation under a T2A temperature code, with T3C compliance as standard. This makes it ideal for demanding fluid management applications such as wastewater handling, chemical processing, and submerged pumping.

Specifications:

– Construction: All cast-iron housing
– Shaft: 416 stainless steel for corrosion resistance
– Mechanical Seals: Dual carbon ceramic seals
– Thermostats: Two normally closed thermostats
– Cable: 25 feet of standard cable included
– Moisture Monitoring: Dual internal moisture sensing probes
– Service Factor: 1.15
– Certifications: UL Listed for Division 1, Class I, Group C&D
– Temperature Rating: T3C standard; T2A rated for 10:1 variable torque operation
– Inverter Duty: Yes, suitable for variable torque applications
– Applications: Wastewater pumps, immersion tanks, chemical sumps, process drains

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
