Tachometer Generators – Cast Iron Housing, Low Ripple Output, IP54/IP65 Options

Tachometer Generators are precision-engineered devices designed to provide accurate feedback signals in demanding industrial environments. Built with rugged cast iron construction, these units are ideal for applications such as mills and heavy-duty processing lines where electrical shielding and mechanical durability are critical.

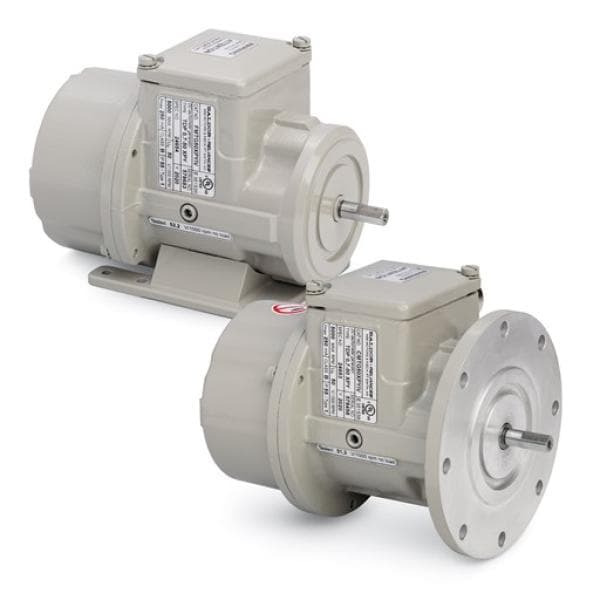

Offered in both C-face flange and foot-mounted versions, they provide flexibility for integration into new and existing systems. With an output signal characterized by extremely low ripple current, they ensure stable and accurate performance for speed monitoring and closed-loop control systems.

These tachometer generators can be configured with either IP54 or IP65 enclosures depending on application requirements, while standard models come rated at IP55, ensuring reliable protection against dust and low-pressure water. Metric flange mounting options and robust ball bearings contribute to long service life and consistent performance.

UL and CSA certifications confirm their suitability for safety-compliant installations across global markets.

Specifications:

– Device Type: Tachometer Generator
– Mounting Options: C-face flange mount or foot mount
– Housing Material: Rugged cast iron construction
– Output Signal: Low ripple current output for stable speed feedback
– Mounting Compatibility: Available with metric mounting flange options
– Enclosure Rating:
 • Standard: IP55
 • Optional: IP54 or IP65
– Bearings: Durable ball bearings for extended life
– Certifications: UL and CSA approved
– Applications: Mill drives, industrial automation, motor speed feedback, closed-loop control systems

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
