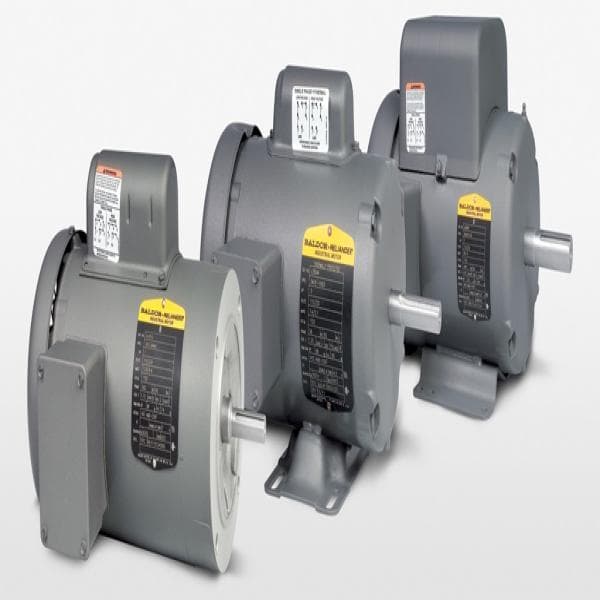

U-Frame Motor – Definite Purpose, 3/4 to 20 HP, TEFC, IP54, Inverter-Ready

Product Details

Quantity

100
Availability (Lead Time)

4-6 Weeks
Product Location

United States
Condition

New
Equipment code

CFIHOS-30000340

Get Quotation Whatsapp

Short Description

Durable and efficient U-Frame motors designed for definite purpose applications, available from 3/4 to 20 HP in NEMA 184 to 286U frames. TEFC design with IP54 protection, inverter-ready, and available in foot-mounted or C-Face footless configurations.

Description

U-Frame Motor – Definite Purpose, 3/4 to 20 HP, TEFC, IP54, Inverter-Ready

The U-Frame Motor – Definite Purpose series is precisely engineered to meet the needs of legacy equipment and heavy-duty industrial applications requiring specific U-frame mounting dimensions. These motors are available in power ratings from 3/4 to 20 horsepower and NEMA frame sizes from 184 to 286U, ensuring compatibility with existing installations and equipment standards.

Designed for durability and dependable operation, these motors feature Totally Enclosed Fan Cooled (TEFC) enclosures and are suitable for both single-phase and three-phase power supplies at 230/460 volts. The robust IP54 rating provides solid protection against dust ingress and splashing water, making these motors suitable for demanding operating environments.

Key design elements include high-performance ball bearings for smooth, long-lasting operation, and construction from heavy-gauge steel and cast iron, delivering exceptional structural integrity. The motors are lubricated with Exxon Polyrex™ EM grease, renowned for its superior high-temperature stability and oxidation resistance.

These motors are inverter-ready, allowing for variable speed applications and enhanced energy control. A Class F insulation system provides thermal resilience and operational safety, ensuring extended motor life even under demanding duty cycles.

Whether for retrofit needs or specific industrial applications, the U-Frame Motor offers dependable, high-performance operation with modern enhancements and classic compatibility.

Specifications:

– Motor Type: Definite Purpose U-Frame Motor
– Horsepower Range: 3/4 – 20 HP
– NEMA Frame Sizes: 184 – 286U
– Voltage: 230/460 V, single and three-phase
– Enclosure: TEFC (Totally Enclosed Fan Cooled)
– Ingress Protection: IP54
– Mounting: Foot-mounted and C-Face footless configurations
– Bearings: High-performance ball bearings
– Lubrication: Exxon Polyrex™ EM grease
– Construction: Heavy-gauge steel and cast iron
– Insulation: Class F system
– Inverter Duty: Yes (Inverter-ready)
– Application: Industrial, retrofit, and legacy equipment

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
