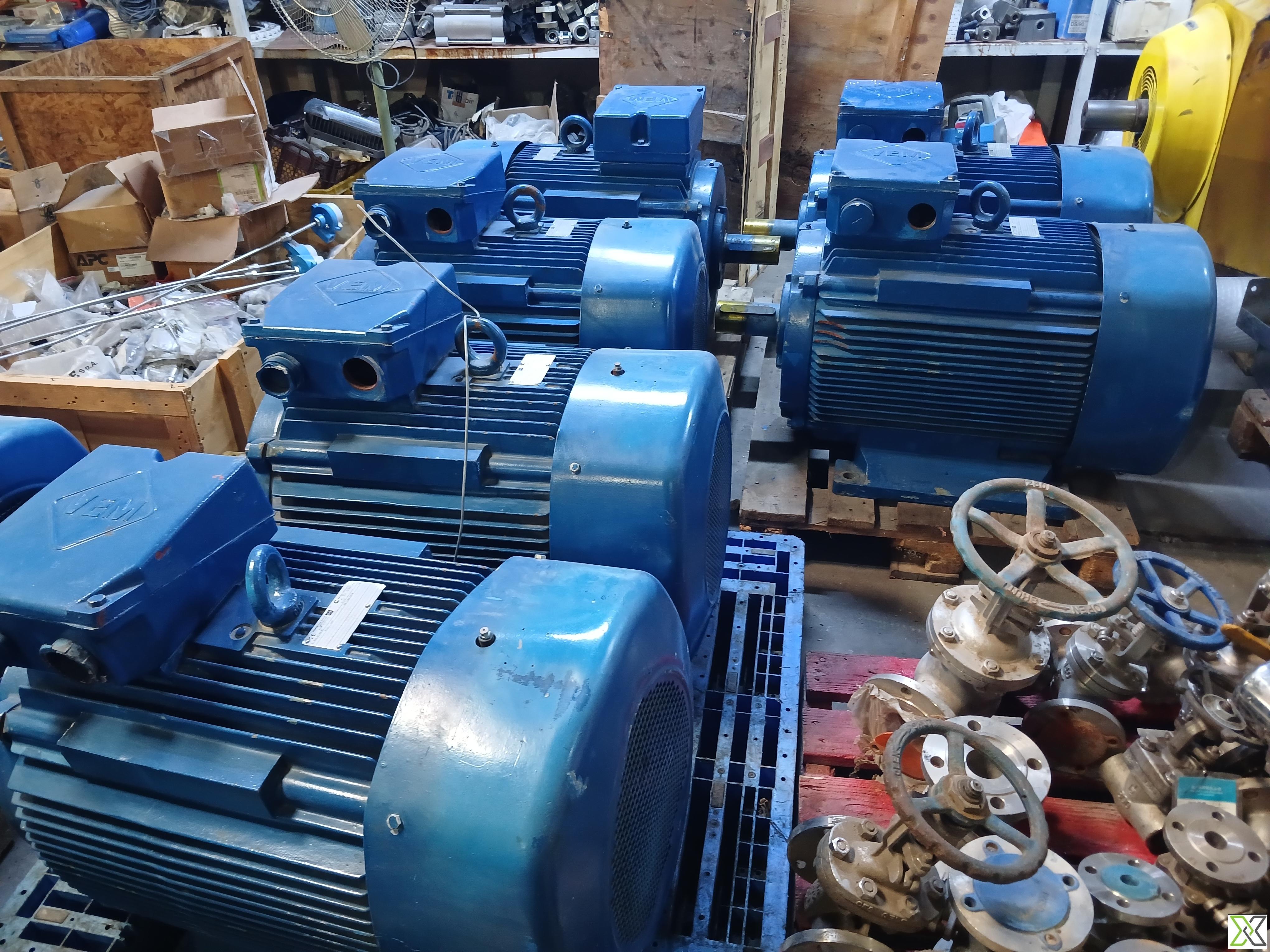

VEM K21R 280 M4 WS 3-Phase Induction Motor - 1997

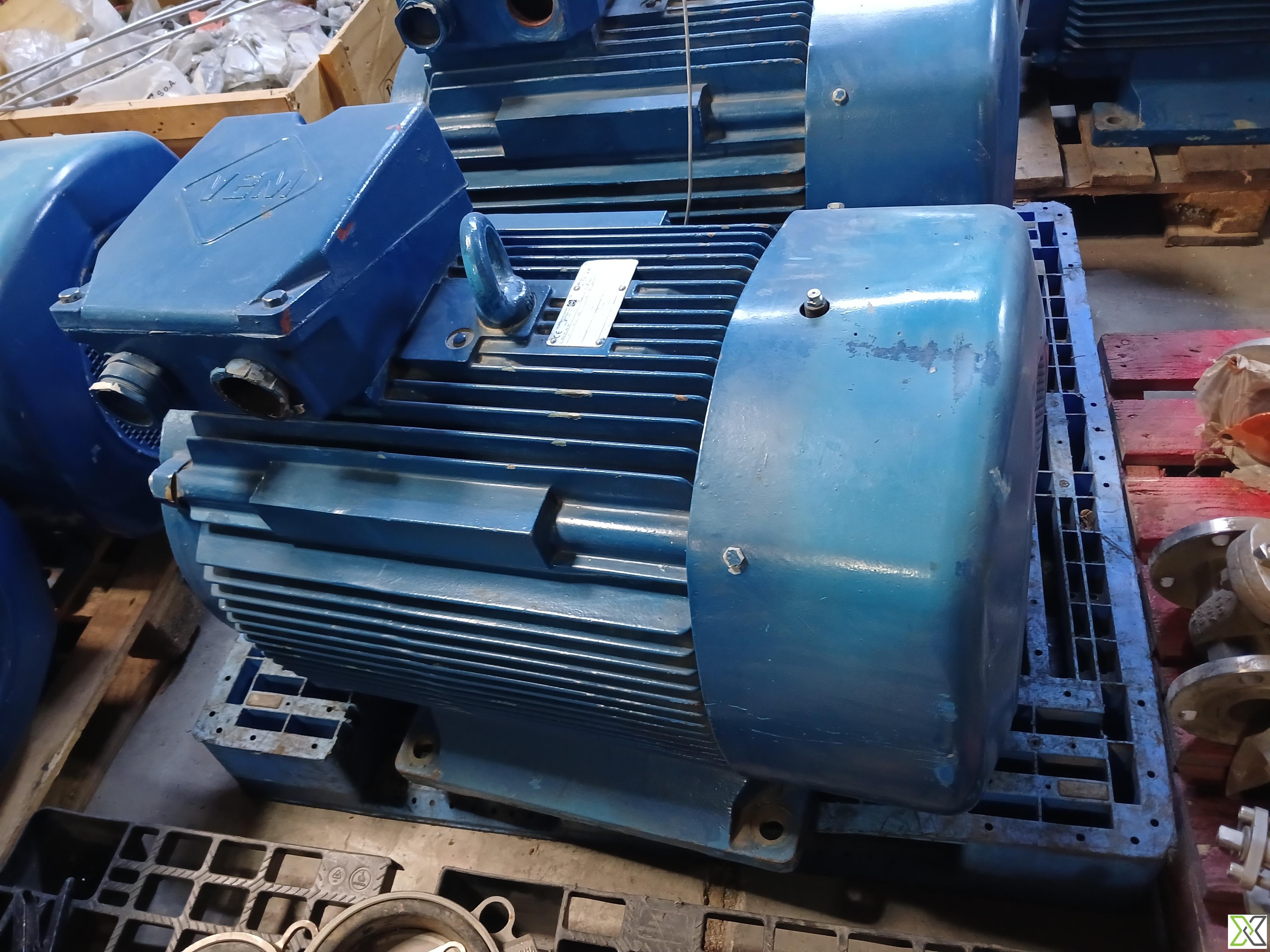

The VEM K21R 280 M4 WS is a high-performance 3-phase asynchronous (induction) motor manufactured by VEM motors GmbH in Germany, designed for rugged industrial operations with continuous (S1) duty. Featuring a horizontal foot-mounted (IM B3) design, this motor is built with a ribbed cast iron housing and an external fan for efficient TEFC (Totally Enclosed Fan-Cooled) heat dissipation, suitable for dusty or humid environments.

With a frame size of 280, the motor's precision-balanced rotor and laminated high-efficiency core ensure smooth operation and minimal vibration. It conforms to DIN EN 60034 / IEC 60034 standards and comes with IP55 enclosure protection, making it resistant to dust ingress and water jets. The motor is equipped with C3-grade ball bearings (6317 C3) on both drive and non-drive ends, extending bearing life in high-demand environments.

Ideal for long-term, maintenance-friendly installation, the K21R 280 M4 WS is suitable for various heavy-duty industrial machines requiring reliable, high-output motors.

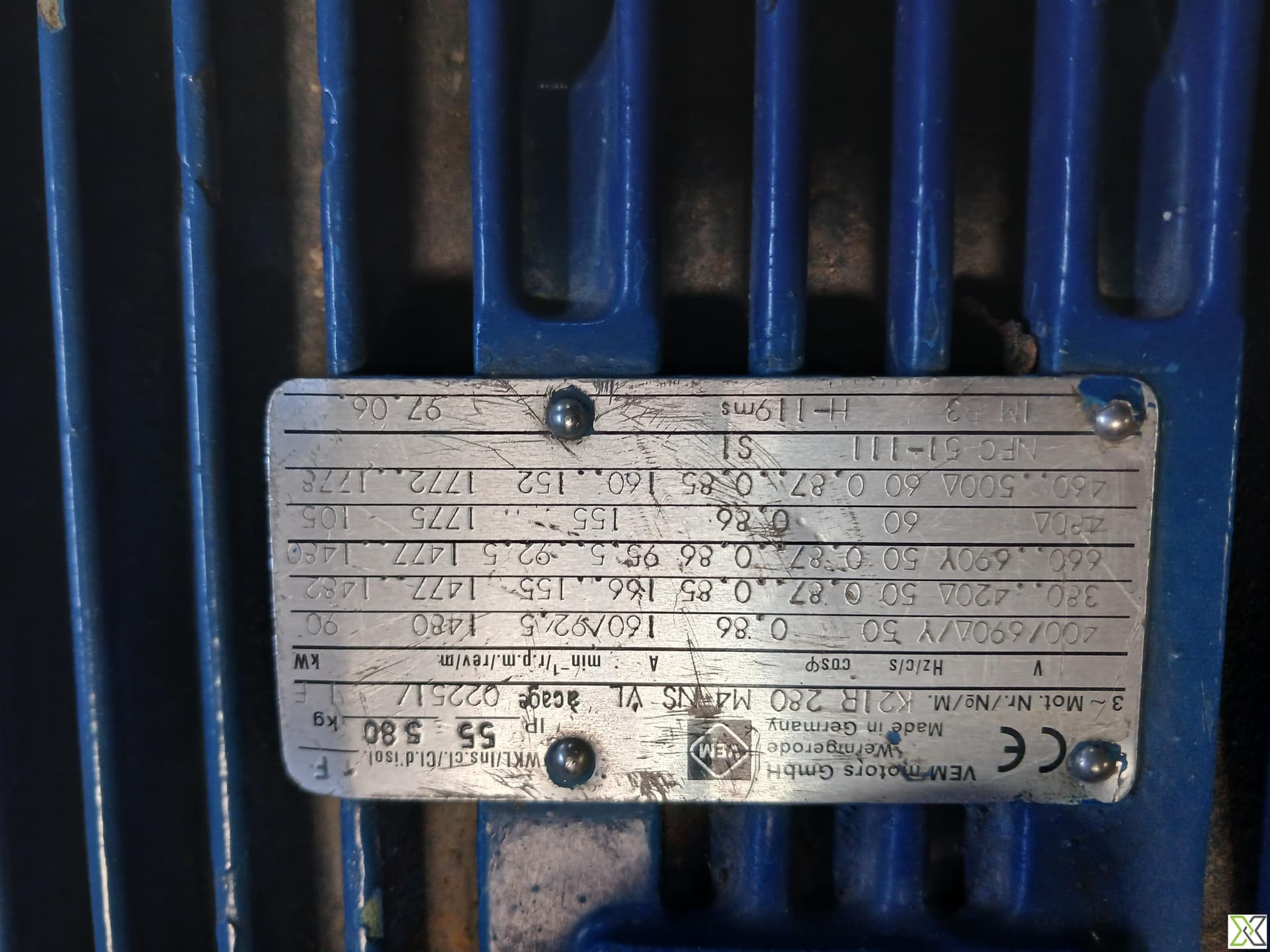

Specifications:

– Manufacturer: VEM motors GmbH
– Country of Origin: Germany
– Model: K21R 280 M4 WS
– Motor Type: 3-Phase Asynchronous (Induction) Motor
– Mounting Designation: IM B3 (Horizontal Foot-mounted)
– Frame Size: 280
– Weight: 380 kg
– Enclosure Protection Class: IP55 (Dust-protected & water-jet resistant)
– Cooling Method: TEFC (Totally Enclosed Fan-Cooled)
– Insulation Class: F (Max winding temp. 155°C)
– Duty Type: S1 (Continuous Operation)
– Bearing Type (DE): 6317 C3
– Bearing Type (NDE): 6317 C3
– Core Design: High-efficiency laminated stator with balanced rotor
– Fan & Housing: Ribbed cast iron with external axial fan
– Manufacture Date: June 1997
– Manufacturing Standards: DIN EN 60034 / IEC 60034
– Thermal Protection: Optional, as per installation needs
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
