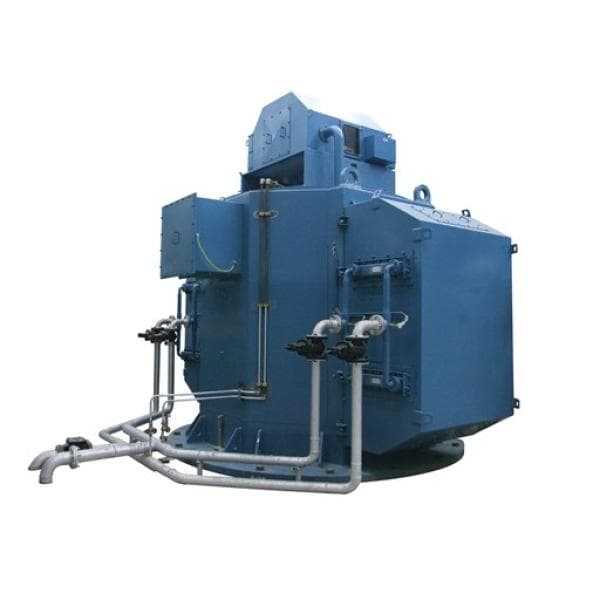

Vertical Motors  Description

Designed for rigorous industrial demands, Vertical Motors provide exceptional performance and reliability in both continuous duty and high torque applications.

Features and Specifications:

• Starting Torque: Equipped with a 650% starting current limitation to handle standard torque requirements efficiently.
• Rotation Capability: Offers bi-directional rotation to accommodate various operational needs.
• Mounting Options: Available with vertical mounting featuring standard NEMA specified P-Base dimensions, as well as horizontal mounting options ideal for tunnel fan applications.
• Voltage Options: Configurations include 460, 2300, 4160, or 6600 volts with cast aluminum and bar rotor construction for enhanced conductivity and efficiency.
• Construction Materials: Features a cast iron frame and brackets with a steel fan cover to ensure durability and long-lasting operation.
• Shaft Materials: Available with either AISI1020 or AISI4150 shaft materials, providing robust performance under various mechanical stresses.
• Bearing System: Includes angular contact or ball bearings, with a top-mounted thrust bearing. The motor is capable of accommodating either grease or oil lubrication for the thrust and guide bearings.
• Additional Features: Offers a non-reverse device as a modification option, enhancing operational flexibility.
• Documentation and Analysis: Comes with a standard documentation package, which includes reed frequency analysis and center of gravity data.
• Thrust Capacity: Capable of handling thrust up to 25,000 lbf, making it suitable for a wide range of industrial applications.

This range of vertical motors is ideal for applications requiring dependable vertical or horizontal operation with a focus on safety and high efficiency.
