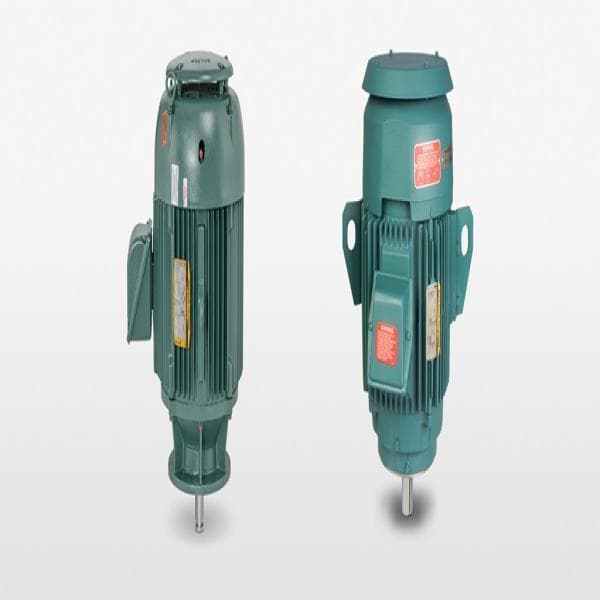

Vertical P-Base Motor – 3–75 HP, TEFC, API 610, IEEE 841, Severe Duty

The Vertical P-Base Motor is designed to meet the demanding requirements of vertical pump and process applications across a range of industrial environments. With a power range of 3 to 75 horsepower, this motor series supports normal, medium, and high thrust applications, offering unmatched versatility for diverse vertical mounting needs.

Constructed with a Totally Enclosed Fan Cooled (TEFC) design, the motor is protected from external contaminants, ensuring long-lasting performance in harsh and humid environments. A corrosion-resistant epoxy finish enhances durability, while the stainless steel nameplate ensures lasting identification and readability even under severe conditions.

Designed for ease of installation, the motor comes with vertical lifting provisions, simplifying handling and setup. For critical applications, select models conform to IEEE Std. 841-2009, incorporating features for severe duty use, including high resistance to vibration and contaminants.

Additionally, certain models are engineered to meet API 610 requirements, making them ideal for use in petroleum, chemical, and process industries where reliability and performance are paramount.

Specifications:

– Power Range: 3 – 75 HP
– Thrust Capacity: Available in Normal, Medium, and High Thrust configurations
– Enclosure: Totally Enclosed Fan Cooled (TEFC)
– Finish: Corrosion-resistant epoxy coating
– Nameplate: Stainless steel for durability and corrosion resistance
– Installation: Equipped with vertical lifting provisions
– Duty Rating: Severe Duty models available (meets IEEE Std. 841-2009)
– Compliance: API 610 compliant models for critical industrial service
– Mounting Type: Vertical P-Base for direct coupling to vertical pumps
– Applications: Vertical turbine pumps, chemical processing, water treatment, petrochemical plants
