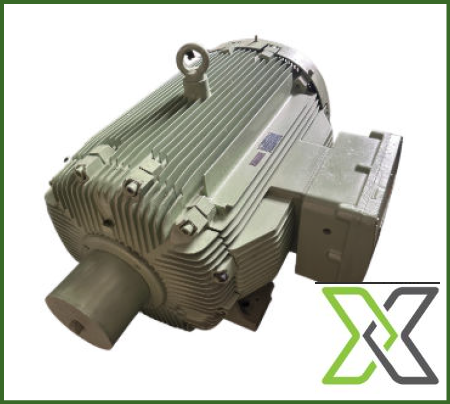

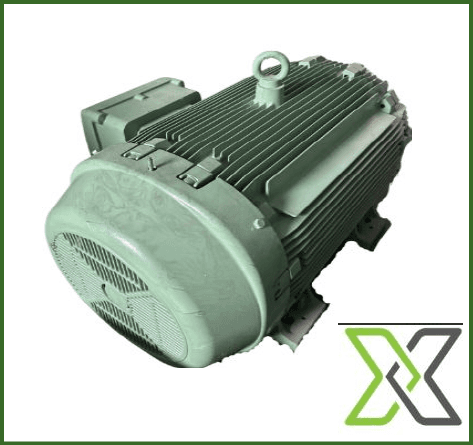

WEG 150 kW Explosion-Proof Three-Phase Induction Motor (Face-Down Mounted)

The WEG 150 kW explosion-proof three-phase induction motor is a high-efficiency drive engineered for reliable performance in hazardous and continuous-duty industrial environments. Designed for safety and endurance, it complies with ATEX and IEC standards for explosion protection, offering exceptional durability and smooth operation.

Specifications:

– Brand / Model: WEG 355 M / L 04
– Manufacturer: WEG Group Africa (Pty) Ltd
– Manufacturing Location: Brazil
– Motor Type: Explosion-Proof Three-Phase Induction Motor – Squirrel Cage
– Standard Compliance: EX CEST 01 ATEX 101 II 2 G EEx de IIB T4
– Rated Voltage: 380 V
– Frequency: 50 Hz
– Rated Power Output: 150 kW
– Power Factor (Cos φ): 0.85
– Rated Current: 282 A
– Full Load Speed: 1490 rpm
– Insulation Class: F / Δt 80 K
– Degree of Protection: IP 55
– Duty Cycle: S1 (Continuous)
– Ambient Temperature Limit: 45 °C
– Altitude Rating: Up to 1000 m above sea level
– Service Factor: 1.15
– Bearing Type (Drive End): 6322-C3
– Bearing Type (Non-Drive End): 6319-C3
– Grease Type: POLYREX EM Esso
– Approx. Weight: 1600 kg (Box not included)
– Dimensions (L × W × H): 150 × 115 × 90 cm (Approx.)
– Color: Industrial Green
– Condition: Spare part (used, tested locally, in working condition)
– Country of Origin: Brazil
– Special Note: Motor is positioned face down.
