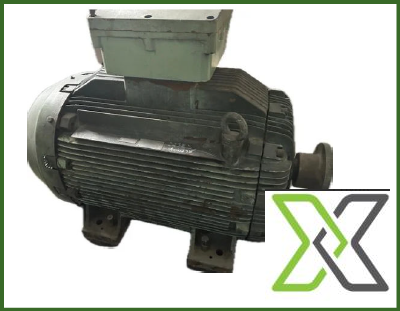

WEG 150 kW Explosion-Proof Three-Phase Induction Motor (Spare Part) – Squirrel Cage

ReflowX SKU: REF-9973

Product Details

Quantity

2
Availability (Lead Time)

0-2 Weeks
Product Location

Brazil
Condition

New
OEM

Weg
Equipment code

CFIHOS-30000340
Total Price
Per Unit Price

$ 21,000.00

Short Description

Explosion-proof 150 kW three-phase induction motor by WEG, designed for reliable operation in hazardous environments. Supplied as a spare part (two identical units), ensuring high efficiency and compliance with ATEX safety standards.

Description

The WEG 150 kW explosion-proof three-phase induction motor is designed for continuous operation in heavy-duty industrial and hazardous locations. Engineered to deliver reliable performance, energy efficiency, and long service life, this motor complies with ATEX standards and offers robust construction suitable for oil, gas, and chemical applications.

Specifications:

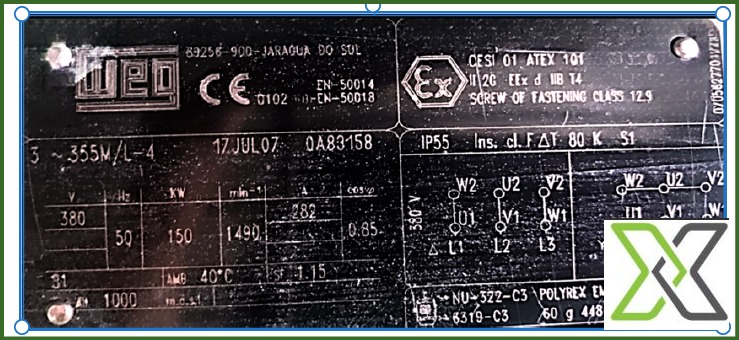

– Brand / Model: WEG 355 M / L 04
– Manufacturer: WEG Group Africa (Pty) Ltd
– Manufacturing Location: Jaraguá do Sul, Santa Catarina, Brazil
– Motor Type: Explosion-Proof Three-Phase Induction Motor – Squirrel Cage
– Standard Compliance: EX CEST 01 ATEX 101 II 2 G EEx de IIBT 4
– Rated Voltage: 380 V
– Frequency: 50 Hz
– Rated Power Output: 150 kW
– Power Factor (Cos φ): 0.85
– Rated Current: 282 A
– Full Load Speed: 1490 rpm
– Insulation Class: F / Δ 80K
– Degree of Protection: IP55
– Duty Cycle: S1 (Continuous)
– Ambient Temperature Limit: 45°C
– Altitude Rating: Up to 1000 m above sea level
– Service Factor: 1.15
– Bearing Type (Drive End): 6322-C3
– Bearing Type (Non-Drive End): 6319-C3
– Grease Type: POLYREX EM Esso
– Approx. Weight: 1600 kg
– Dimensions (L × W × H): 150 × 115 × 90 cm
– Color: Industrial Grey
– Condition: Spare part (used, working condition)
– Country of Origin: Brazil
– Quantity: 2 identical units

For further specifications or to inquire about this equipment and ReflowX’s logistics services, please contact ReflowX at info@reflowx.com.

Technical Details

Model Number	WEG 355 M / L 04
Model Number	WEG 355 M / L 04
Weight	1600
Voltage	380 V
Color	Industrial Grey
