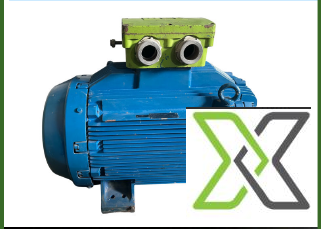

WEG 185 kW Explosion-Proof Three-Phase Induction Motor (Spare Part) – Squirrel Cage

ReflowX SKU: REF-6890

Product Details

Quantity

1
Availability (Lead Time)

0-2 Weeks
Product Location

Brazil
Condition

New
OEM

Weg
Equipment code

CFIHOS-30000340
Total Price
Per Unit Price

$ 21,000.00

Short Description

High-performance 185 kW explosion-proof induction motor spare part from WEG, designed for hazardous environments. Engineered to meet ATEX standards, ensuring reliability, safety, and long-term efficiency.

Description

The WEG 185 kW Explosion-Proof Three-Phase Induction Motor (Spare Part) is built for durability and precision in industrial operations. With its rugged design, IP55 protection, and compliance with ATEX certification, it provides excellent performance in explosive atmospheres where safety is critical.

Specifications:

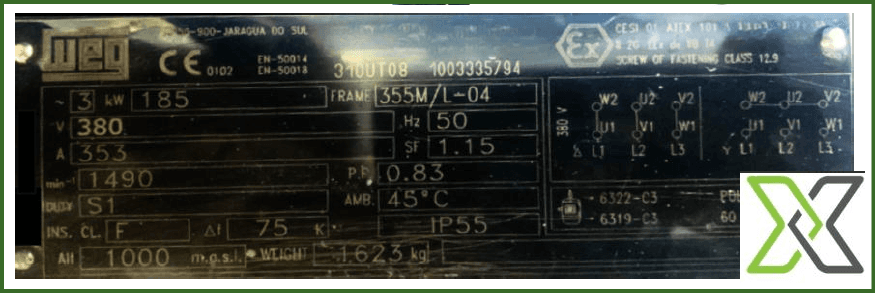

– Brand / Model: WEG 355 M / L 04
– Manufacturer: WEG Group Africa (Pty) Ltd
– Manufacturing Location: Jaraguá do Sul, Santa Catarina, Brazil
– Motor Type: Three-Phase Explosion-Proof Induction Motor – Squirrel Cage
– Standard Compliance: EX CEST 01 ATEX 101 II 2 G EEx de IIBT 4
– Rated Power Output: 185 kW
– Rated Operating Voltage: 380 V
– Rated Current: 353 A
– Frequency: 50 Hz
– Rated Speed: 1490 rpm
– Power Factor (Cos φ): 0.83
– Frame Size: 355 M / L 04
– Degree of Protection: IP55
– Insulation Class: F / Δ 75K
– Service Duty: S1 (Continuous)
– Ambient Temperature Limit: 45°C
– Altitude Rating: 1000 m above sea level
– Service Factor: 1.15
– Bearing Type: Drive End – 6322-C3 / Non-Drive End – 6319-C3
– Grease Type: POLYREX EM Esso
– Approximate Weight: 1623 kg
– Dimensions (L × W × H): 150 × 110 × 90 cm
– Color: Green
– Condition: Spare Part (in working condition)
– Country of Origin: Brazil
– City: Jaraguá do Sul

For further specifications or to inquire about this equipment and ReflowX's logistics services, please contact ReflowX at info@reflowx.com.

Technical Details

Model Number	WEG 355 M / L 04
Model Number	WEG 355 M / L 04
Weight	1623
Voltage	380V
