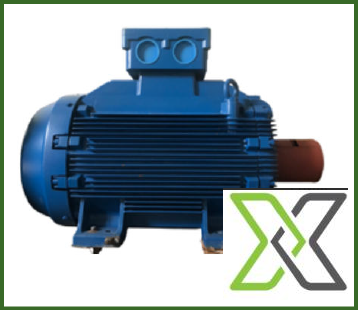

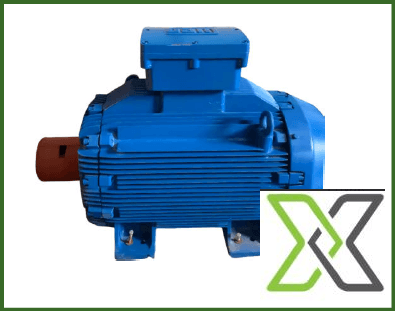

WEG 185 kW Explosion-Proof Three-Phase Induction Motor – Squirrel Cage

ReflowX SKU: REF-8547

Product Details

Quantity

2
Availability (Lead Time)

0-2 Weeks
Product Location

Brazil
Condition

New
OEM

Weg
Equipment code

CFIHOS-30000340
Total Price
Per Unit Price

$ 32,000.00

Short Description

A heavy-duty 185 kW explosion-proof induction motor designed for continuous operation in hazardous environments. Built to ATEX and IECEx standards, ensuring high efficiency, durability, and safety in industrial applications.

Description

The WEG 185 kW Explosion-Proof Three-Phase Induction Motor (Squirrel Cage Type) is engineered for reliable performance under demanding conditions. Designed to meet IEC and ATEX safety standards, it provides efficient power, thermal protection, and long service life in environments with explosive gas risks.

Specifications:
– Brand / Model: WEG 355 M / L 04
– Manufacturer: WEG Group Africa (Pty) Ltd
– Manufacturing Location: Jaraguá do Sul, Santa Catarina, Brazil
– Motor Type: Three-Phase Explosion-Proof Induction Motor – Squirrel Cage
– Standard Compliance: EX CEST 01 ATEX 101 II 2 G EEx de IIBT 4 / IEC 60034-1
– Rated Power Output: 185 kW
– Rated Operating Voltage: 380 V
– Rated Current: 353 A
– Frequency: 50 Hz
– Rated Speed: 1490 rpm
– Power Factor (Cos φ): 0.83
– Frame Size: 355 M / L 04
– Degree of Protection: IP55
– Insulation Class: F (Δ 75K)
– Service Duty: S1 (Continuous)
– Ambient Temperature Limit: 45°C
– Altitude Rating: 1000 m above sea level
– Service Factor: 1.15
– Bearing Type: Drive End – 6322-C3 / Non-Drive End – 6319-C3
– Grease Type: POLYREX EM Esso
– Approximate Weight: 1824 kg
– Dimensions (L × W × H): 160 × 110 × 75 cm
– Color: Blue
– Condition: New
– Country of Origin: Brazil
– City: Jaraguá do Sul

For further specifications or to inquire about this equipment and ReflowX's logistics services, please contact ReflowX at info@reflowx.com.

Technical Details

Model Number	WEG 355 M / L 04
Model Number	WEG 355 M / L 04
Weight	1824
Voltage	380V
