WEG 450 kW Explosion-Proof Three-Phase Induction Motor (Spare Part) – Squirrel Cage

ReflowX SKU: REF-194

Product Details

Quantity

1
Availability (Lead Time)

0-2 Weeks
Product Location

Brazil
Condition

New
OEM

Weg
Equipment code

CFIHOS-30000340
Total Price
Per Unit Price

$ 21,000.00

Short Description

High-power 450 kW explosion-proof three-phase induction motor by WEG, engineered for safety, reliability, and continuous operation in hazardous industrial environments. Supplied as a used spare part in working condition.

Description

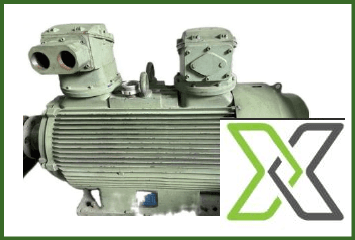

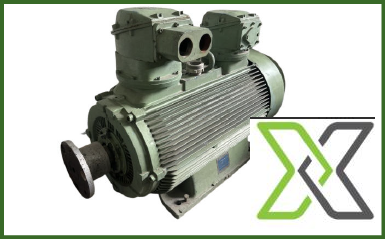

The WEG 450 kW explosion-proof three-phase induction motor is a powerful and efficient machine designed for demanding industrial applications in hazardous areas. Manufactured in Portugal with superior materials and precision engineering, it ensures high performance, energy efficiency, and safety in compliance with ATEX and IEC standards.

Specifications:
– Brand / Model: WEG 355 M / L 04
– Manufacturer: WEG Group Africa (Pty) Ltd
– Manufacturing Location: Portugal
– Motor Type: Explosion-Proof Three-Phase Induction Motor – Squirrel Cage

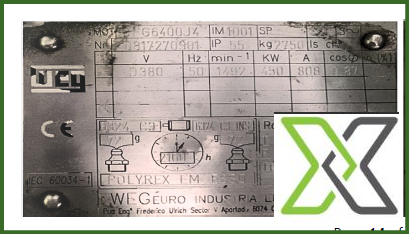

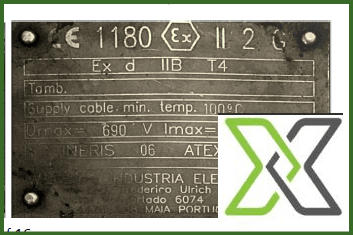

– Standard Compliance: CE1180 EX II 2G EEx d IIB T4, IEC 60034-1, ATEX 0062X
– Rated Voltage: 380 V
– Frequency: 50 Hz
– Rated Power Output: 450 kW
– Power Factor (Cos φ): 0.87
– Rated Current: 808 A
– Full Load Speed: 1492 rpm
– Insulation Class: F / Δ 75K
– Degree of Protection: IP55
– Duty Cycle: S1 (Continuous)
– Ambient Temperature Limit: 45°C
– Altitude Rating: Up to 1000 m above sea level
– Service Factor: 1.15
– Bearing Type (Drive End): 6324-C3
– Bearing Type (Non-Drive End): 6321-C3 INS
– Grease Type: POLYREX EM Esso
– Approx. Weight: 2750 kg
– Dimensions (L × W × H): 200 × 115 × 100 cm
– Color: Industrial Green
– Condition: Used spare part (working condition)
– Country of Origin: Portugal

For further specifications or to inquire about this equipment and ReflowX’s logistics services, please contact ReflowX at info@reflowx.com

Technical Details

Model Number	WEG 355 M / L 04
Model Number	WEG 355 M / L 04
Weight	2750
Voltage	380V
Color	Industrial Green
