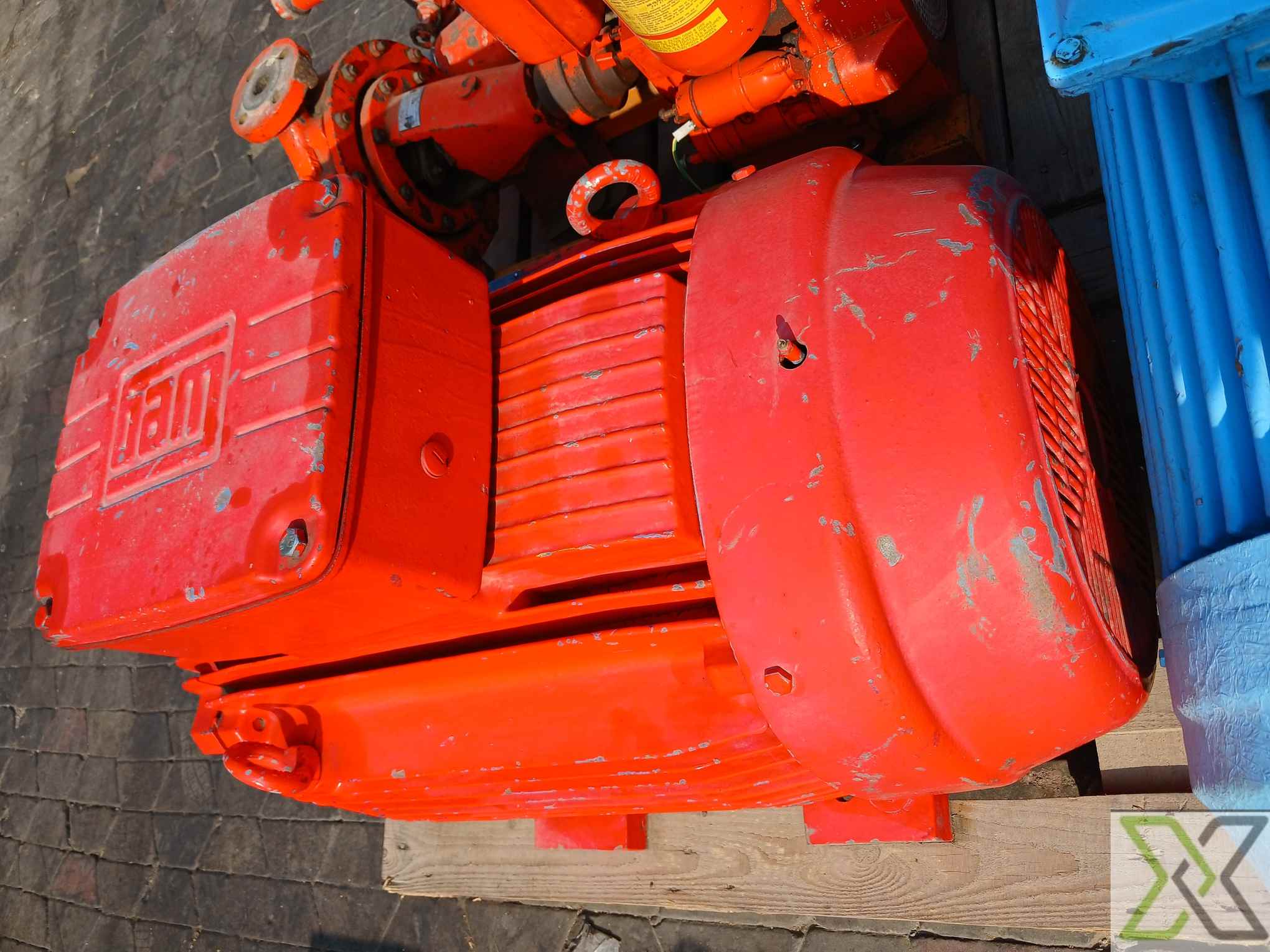

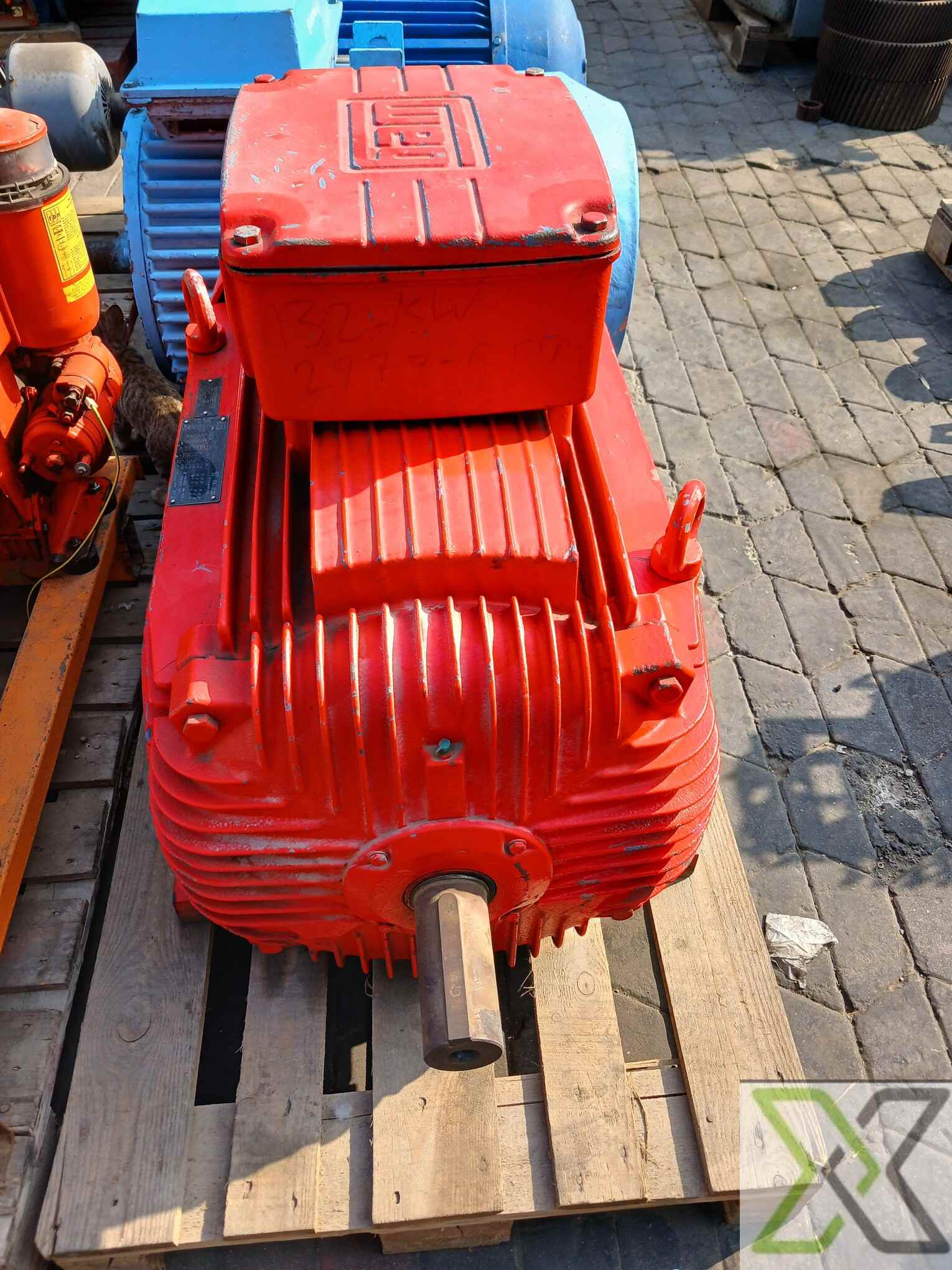

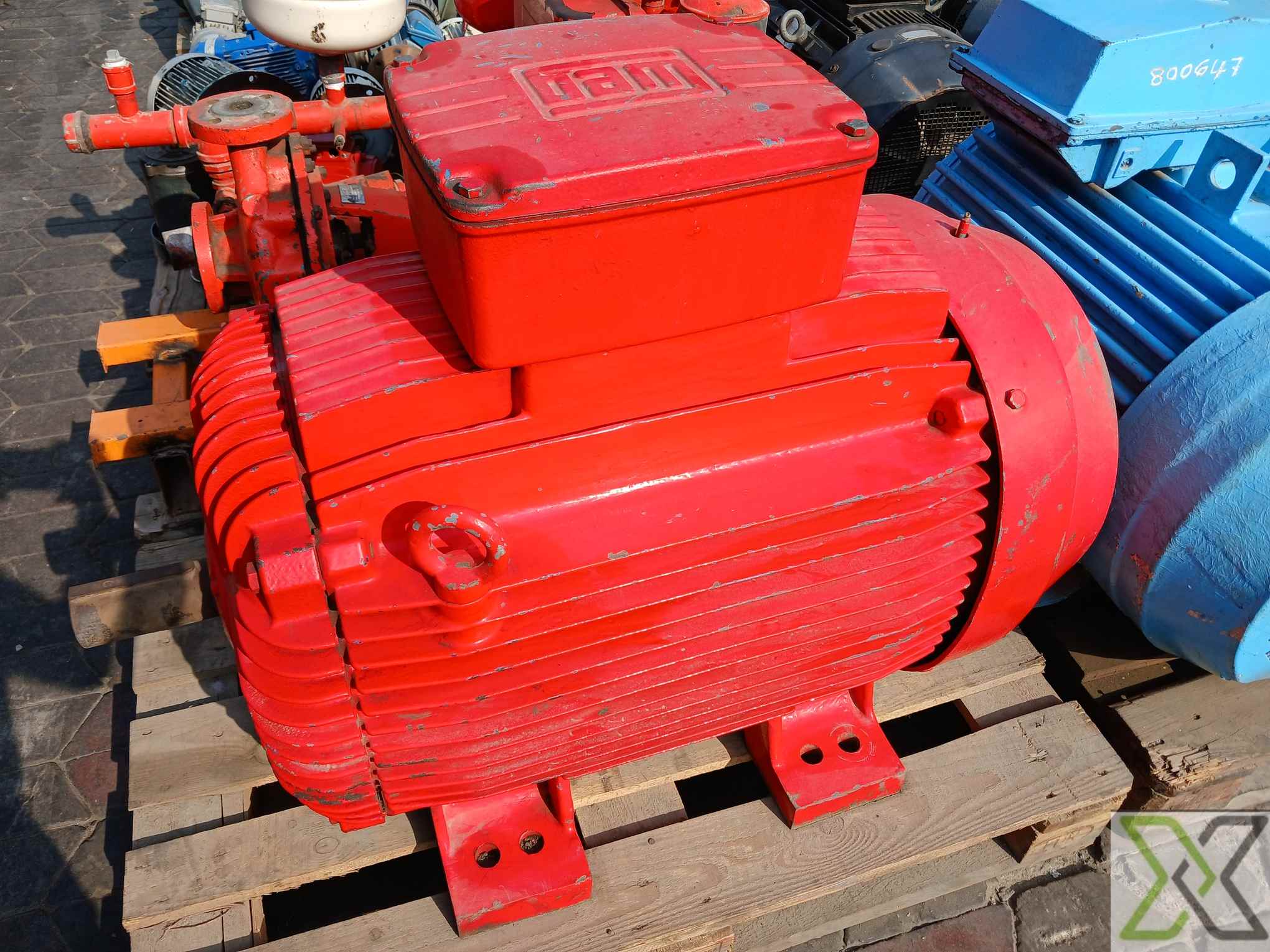

WEG Industrial Motor – Key Specifications

 General Information

✔ Manufacturer: WEG (Renowned for high-efficiency industrial motors)
✔ Model: Likely W22 or similar series (Premium efficiency motor with energy-saving design)
✔ Power Rating: 90 kW (120 HP) (Suitable for demanding industrial loads)
✔ Weight: ~900 kg (Heavy-duty construction for durability and performance)

 Electrical & Performance Data

✔ Voltage: 400V / 690V (Three-phase motor, compatible with industrial electrical grids)
✔ Frequency: 50 Hz (Standard for European, Middle Eastern, and Asian markets)
✔ Speed: 1480 RPM (Near-synchronous speed for a 4-pole motor)
✔ Efficiency Class: IE3 or IE4 (depending on series) (Energy-efficient, reducing operational costs)

 Mechanical & Environmental Protection

✔ Insulation Class: F (Handles high-temperature operations, up to 155°C winding temperature)
✔ Ingress Protection (IP Rating): IP55 (Protected against dust and water jets – ideal for harsh industrial environments)
✔ Cooling Type: IC411 (TEFC – Totally Enclosed Fan Cooled) (Prevents dust and contaminants from entering motor housing)
✔ Mounting Type: IM B3, B5, or B35 (Configurable for horizontal/vertical applications)

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
