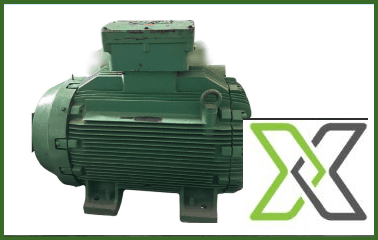

The WEG 250 kW explosion-proof three-phase induction motor is designed for high performance and safety in hazardous environments. Built to ATEX standards, it ensures continuous, reliable operation with IP55 protection and durable construction.

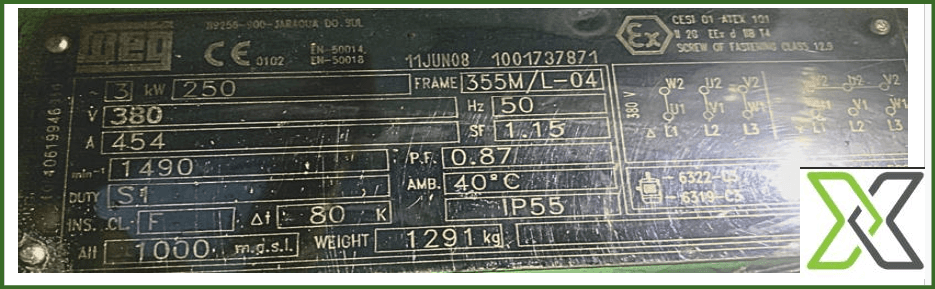

Specifications:

– Brand / Model: WEG 355 M / L 04
– Manufacturer: WEG Group Africa (Pty) Ltd
– Manufacturing Location: Jaraguá do Sul, Brazil
– Motor Type: 3-Phase Explosion-Proof Induction Motor
– Standard Compliance: EX CEST 01 ATEX 101 II 2 G EEx de IIB T4
– Rated Power Output: 250 kW
– Voltage Range: 380 V
– Rated Current: 454 A
– Frequency: 50 Hz
– Rated Speed: 1490 RPM
– Power Factor (Cos φ): 0.87
– Frame Size: 355 M / L 04
– Degree of Protection: IP55
– Insulation Class: F / Δ 80 K
– Duty Cycle: S1 (Continuous)
– Ambient Temperature Limit: 45 °C
– Altitude Rating: 1000 m a.s.l
– Service Factor: 1.15
– Motor Weight (approx.): 1300 kg
– Bearing Type: 6322-C3 (Drive End) / 6319-C3 (Non-Drive End)
– Type of Grease for Bearings: POLYREX EM Esso
– Dimensions (L × H × D): 140 × 105 × 70 cm
– Mounting Configuration: Foot Mount
– Condition: Spare part (in working condition)
– Country of Origin: Brazil

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
