WEG 250 kW Explosion-Proof Three-Phase Induction Motor – Squirrel Cage

ReflowX SKU: REF-9938

Product Details

Quantity

20
Availability (Lead Time)

0-2 Weeks
Product Location

Brazil
Condition

New
OEM

Weg
Equipment code

CFIHOS-30000340

Short Description

The WEG 250 kW Explosion-Proof Electric Motor is a heavy-duty, high-efficiency motor designed for use in hazardous areas. Built to ATEX and IECEx standards, it ensures reliable operation and safety in industrial environments such as oil, gas, and chemical plants.

Description

The WEG Explosion-Proof Motor is designed for heavy-duty industrial applications requiring safety and durability. Manufactured to international standards, it ensures excellent efficiency and long operational life.

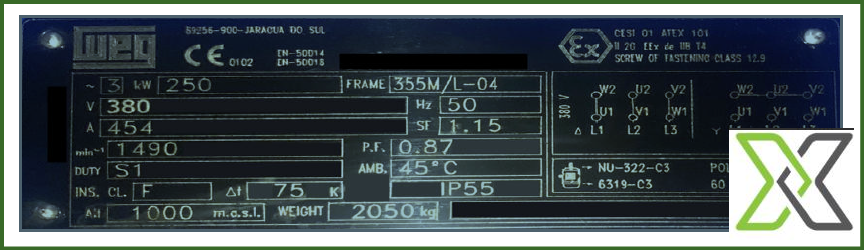

Specifications:

– Brand / Model: WEG 355 M/L 04
– Manufacturer: WEG Group Africa (Pty) Ltd
– Manufacturing Location: Jaraguá do Sul, Brazil
– Motor Type: 3-Phase Induction Motor (Explosion-Proof)
– Standard Compliance: IEC 60034-1 / ATEX / IECEx Certified
– Part Number: CEST 01 ATEX 101 II 2 G EEx de IIB T4
– Rated Power Output: 250 kW
– Voltage Range: 380 V
– Rated Current: 454 A
– Frequency: 50 Hz
– Rated Speed: 1490 RPM
– Power Factor (Cos φ): 0.87
– Frame Size: 355 M/L 04
– Enclosure Type: IP56 (TEFC – Totally Enclosed Fan Cooled)
– Insulation Class: F (Δ 75 K)
– Duty Cycle: S1 (Continuous)
– Ambient Temperature Limit: 45 °C
– Altitude Rating: 1000 m a.s.l
– Mass / Weight: ≈ 2155 kg
– Mounting Configuration: B3T (Foot Mount)
– Bearing Type: NU-322-C3 / 6319-C3
– Lubricant Type: POLYREX EM Esso
– Color: RAL 5010 Blue
– Explosion Protection: Ex db IIB T4 Gb
– Country of Origin: Brazil

Technical Details

Model Number	250 kW Explosion-Proof Motor
Model Number	250 kW Explosion-Proof Motor
Weight	2155 Kg
Voltage	380V
Color	RAL 5010
Explosion Protection Zone	Ex db IIB T4 Gb (ATEX / IECEx)
