Description

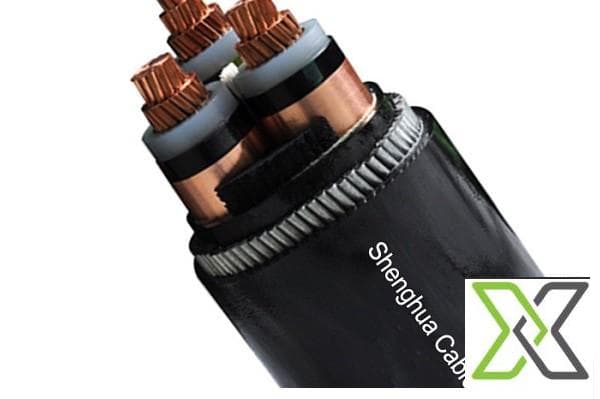

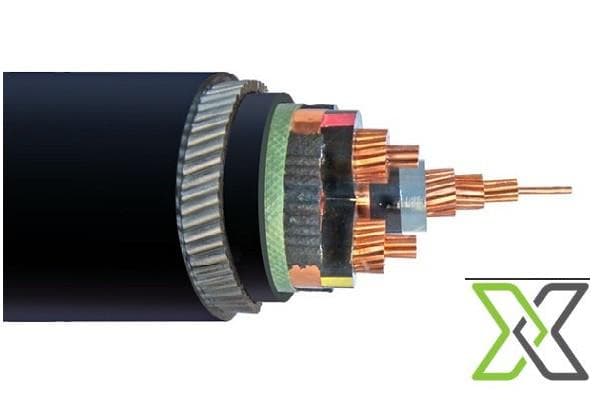

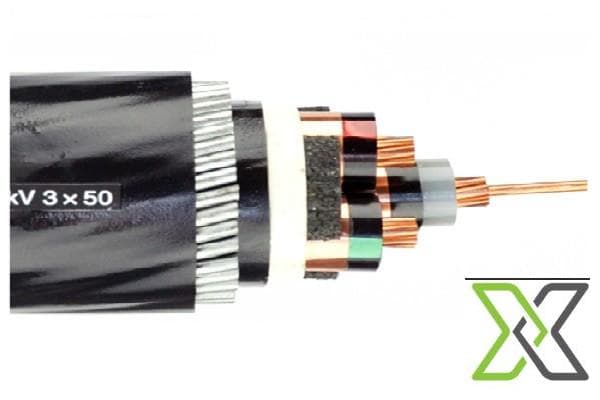

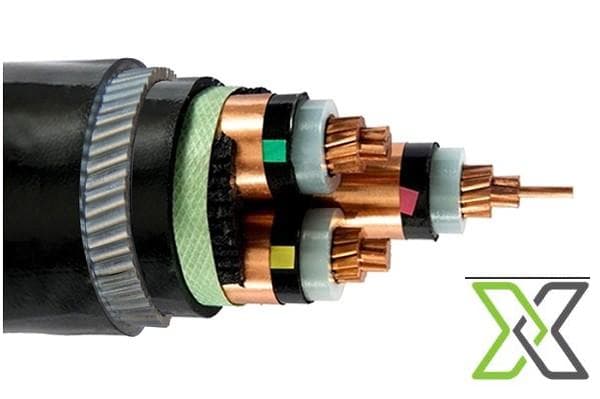

Steel wire armoured high voltage cables are manufactured with compact stranded copper conductors and XLPE insulation, incorporating semi-conductive conductor and insulation screens. The construction includes copper tape screening, a PVC inner covering, and armouring using aluminium wire for single core or galvanised steel wire for three core configurations.

The cable is produced in accordance with IEC standards for high voltage power transmission and distribution applications.

Specifications

– Cable Type: Steel Wire Armoured High Voltage Cable
– Conductor: Copper (compact stranded, Class 2 – IEC 60228)
– Conductor Screen: Semi-conductive
– Insulation Material: XLPE (Cross-Linked Polyethylene), 90°C
– Insulation Screen: Semi-conductive
– Screening: Copper tape
– Inner Covering: PVC
– Armour: Aluminium wire (single core) / Galvanised steel wire (three core)
– Sheath Material: PVC or FR-PVC Type ST2 / PE
– Voltage Range: 3.6 kV to 36 kV
– Rated Voltage (Typical): 26 / 35 kV
– Maximum Conductor Temperature: 90°C (normal) / 130°C (emergency) / 250°C (short circuit ≤ 5 sec)
– Minimum Ambient Temperature: 0°C (fixed installation)
– Minimum Bending Radius: 15 × cable O.D (single core) / 12 × cable O.D (multi core)

Standards

– IEC 60502
– IEC 60228
– IEC 60332-3 (ZR-YJV32 / ZR-YJV72 only)
– GB/T 12706
– GB/T 18380-3 (ZR-YJV32 / ZR-YJV72 only)
– BS, DIN, ICEA (upon request)
