Dual Diesel Filter Housing – Manual 3-Way Valve, Vertical Mount, 3.5 bar Rated

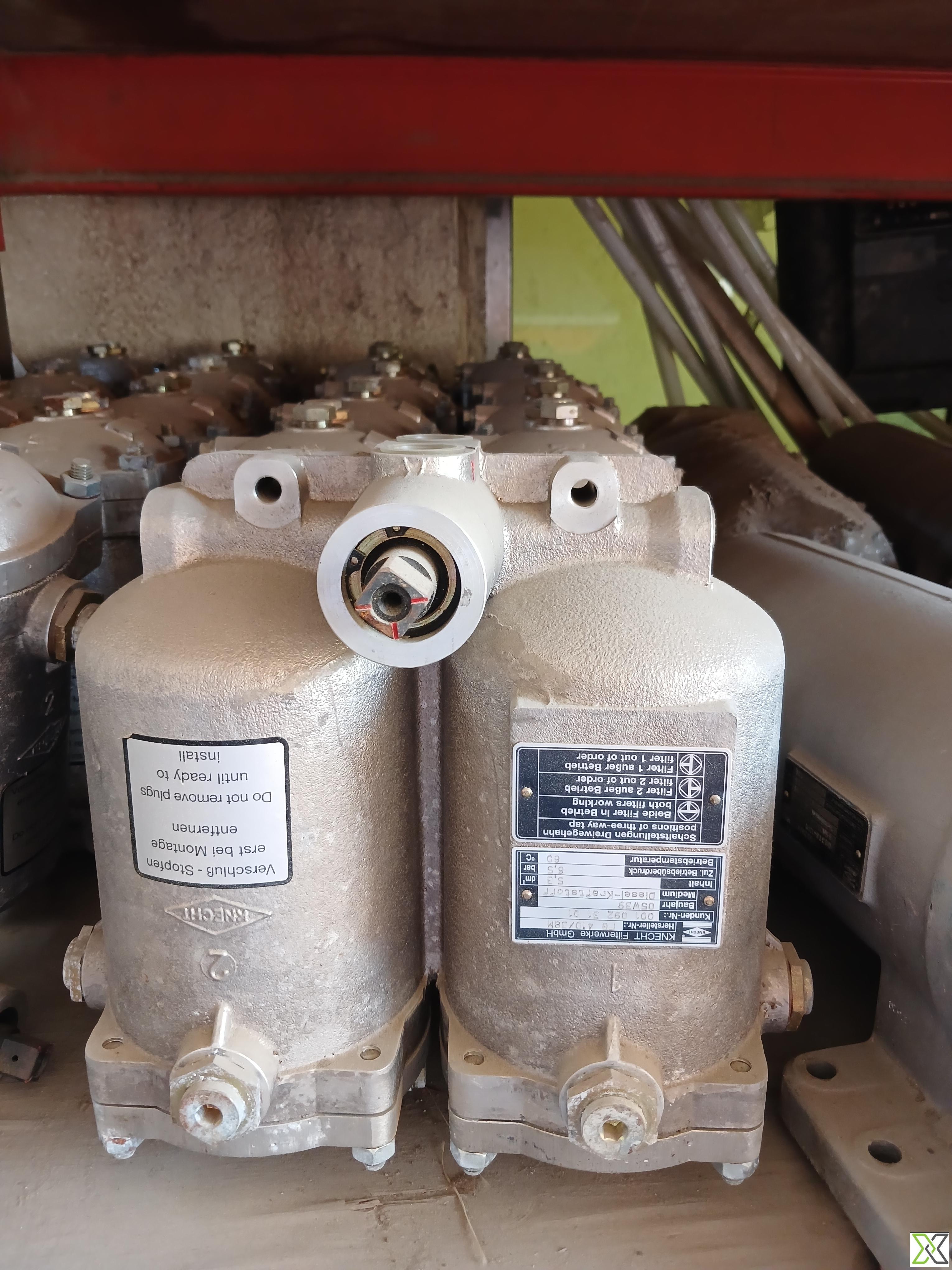

This dual diesel filter housing unit is engineered for efficient fuel filtration in medium- to high-power diesel engine systems. Designed with a manual 3-way selector valve, the system enables seamless switching between two filter elements, allowing continuous operation even during element replacement or service.

The filter assembly supports vertical installation and can be mounted using either flange or bracket configurations depending on system requirements. With a robust construction rated for pressures up to 3.5 bar and temperatures up to 55°C, this unit ensures reliable filtration of diesel (Kraftstoff) under demanding operating conditions. Its internal flow configuration follows a direct path: inlet → filter element → outlet, optimizing throughput and pressure stability.

Each housing includes integrated drain or service ports at the base for sediment removal or sampling. Diesel-compatible O-ring seals (typically nitrile rubber or Viton) provide long-term leak resistance. Though the flow rate is not explicitly defined, this unit is typically matched to diesel engine systems in the 200–300 kW range, depending on the selected filter elements.

Specifications:

– Design Type: Dual Filter Housing with Manual 3-Way Selector Valve
– Application Medium: Diesel fuel (Kraftstoff)
– Installation Orientation: Vertical (standard)
– Mounting Configuration: Flange or bracket mount (depending on system)
– Flow Direction: Inlet → Filter Element → Outlet
– Flow Rate Capacity: Typical for diesel engines up to ~200–300 kW (varies with element)
– Max. Operating Pressure: 3.5 bar
– Operating Temperature Range: Up to 55°C
– Seal Type: Diesel-compatible O-ring (nitrile rubber or Viton)
– Changeover Valve: Manual 3-way selector for uninterrupted flow
– Drain/Service Ports: Integrated at filter base for sediment/sampling
– Overall Height: 300–350 mm
– Width (with valve): ~280–320 mm
– Connection Port Size: G1 or G1¼ BSP (based on configuration)
– Weight: ~6–8 kg (dry, without filter elements)
– Compatible Fluids: Diesel, gas oil, heating fuel
– Country of Manufacture: Not specified
– Availability: Available upon request

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
