10" 150# Mild Steel Flange – Class 150, ANSI B16.5

ReflowX SKU: REF-8076

Product Details

Quantity

20
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

Surplus
OEM

ReflowX
Equipment code

CFIHOS-30000304

Get Quotation Whatsapp

Short Description

High-strength 10-inch mild steel flange with 150# pressure rating for industrial piping. Available in multiple flange types. EXW UAE with 20 units in stock.

Description

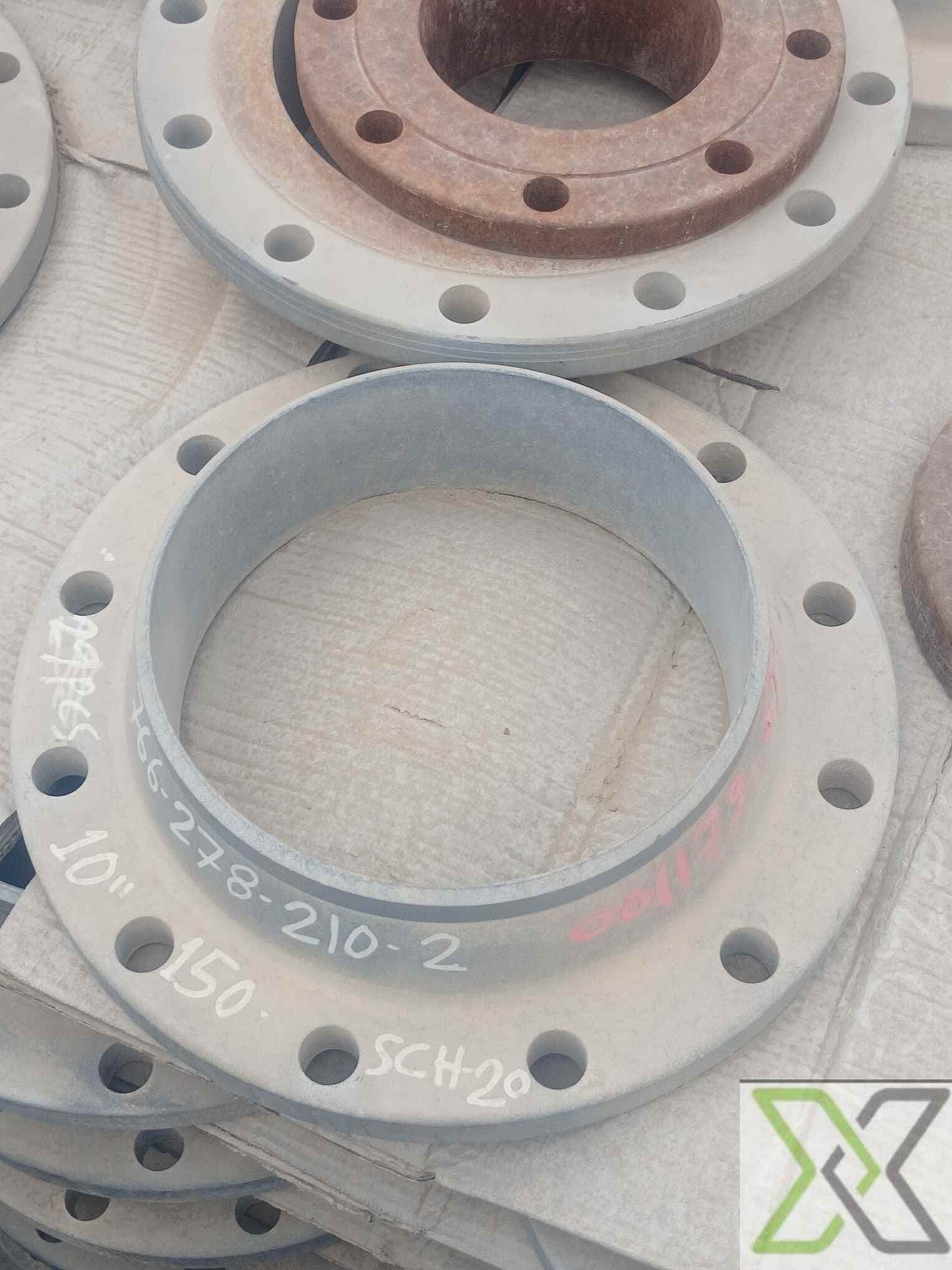

10" 150# Mild Steel Flange – Class 150, ANSI B16.5

The 10" 150# Mild Steel Flange is a versatile and durable flange designed for industrial piping systems across oil & gas, water treatment, HVAC, and construction sectors. Manufactured from mild steel, this flange is compatible with various piping connections and available in Slip-On, Weld Neck, Blind, Threaded, or Socket Weld types depending on application requirements.

Built to ANSI/ASME B16.5 Class 150 standards, this flange supports low to medium pressure systems and is offered in both Raised Face (RF) and Flat Face (FF) configurations. Available finishes include bare steel, galvanized, or painted coatings as specified by the end user. The flanges are manufactured using forging, casting, or machining processes to ensure strength and dimensional accuracy.

This flange is suitable for structural and fluid handling systems, particularly where reliable sealing and strong mechanical connections are required. Bulk orders are preferred, and the product is available EXW UAE with 20 units currently in stock. It can also be supplied per metric ton to meet volume requirements.

Specifications:

– Product Name: 10" 150# Mild Steel Flange
– Material: Mild Steel
– Size: 10 inches (DN250)
– Pressure Rating: 150# (Class 150)
– Flange Types: Slip-On, Weld Neck, Blind, Threaded, or Socket Weld
– Standard: ANSI B16.5 / ASME B16.5
– Face Type: Raised Face (RF) or Flat Face (FF)
– Application: Oil & gas, industrial piping, water treatment, HVAC, structural systems
– Surface Coating: Bare steel, galvanized, or painted (as per request)
– Manufacturing Method: Forged, cast, or machined
– Weight: Varies depending on flange type and thickness
– Quantity Available: 20 units
– Sale Unit: Per piece or per metric ton
– Certification: No certification unless specifically requested
– Location: EXW UAE
– Availability: Bulk orders preferred

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Width	444.5 mm
Weight	30–36 kg
ISO 15926 Pt 4	1828
PCA RDS Code	RDS13307654
CFIHOS ID	CFIHOS-30000304
IFC Class	IfcPipeFitting
Lower Limit Design Temperature	-29°C
Lower Limit Design Pressure	285 PSI
