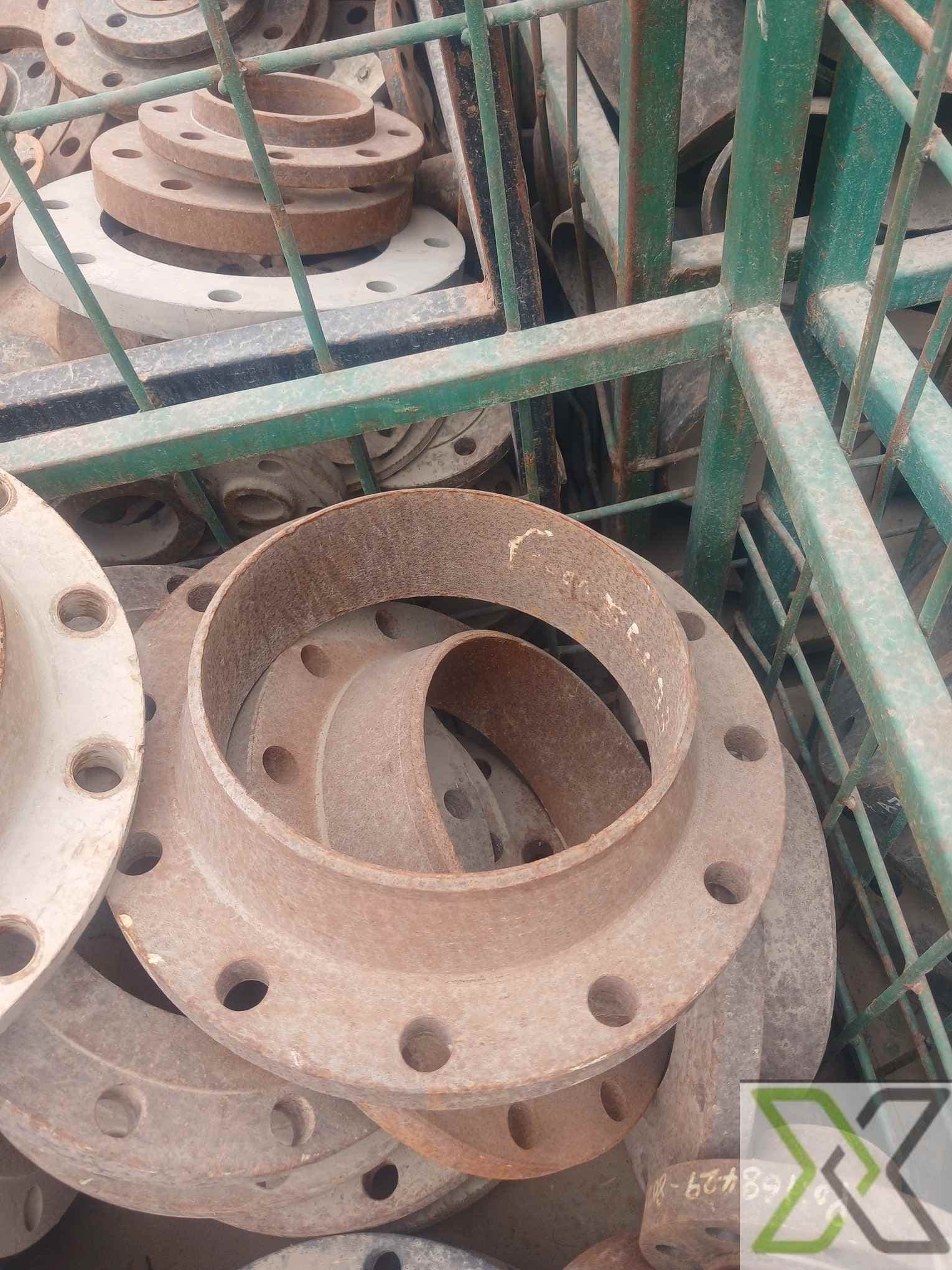

12" 150# Mild Steel Flange – Class 150, ANSI B16.5

ReflowX SKU: REF-3276

Product Details

Quantity

10
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

Surplus
OEM

ReflowX
Equipment code

CFIHOS-30000304

Get Quotation Whatsapp

Short Description

Heavy-duty 12-inch mild steel flange rated at 150#, suitable for industrial fluid systems and structural applications. Available in multiple configurations. EXW UAE with 10 units in stock.

Description

12" 150# Mild Steel Flange – Class 150, ANSI B16.5

The 12" 150# Mild Steel Flange is a durable and versatile piping component used for secure connections in industrial systems including oil & gas, HVAC, water treatment, and structural pipelines. Made from high-quality mild steel, this flange supports a Class 150 (150#) pressure rating and complies with ANSI B16.5 / ASME B16.5 dimensional standards.

It is available in several types, including Slip-On, Weld Neck, Blind, Threaded, or Socket Weld, to accommodate different system designs. Customers may also choose between Raised Face (RF) or Flat Face (FF) face configurations depending on sealing requirements. The flange is manufactured using forged, cast, or machined processes, and comes with optional coatings such as bare steel, galvanized, or painted.

With 10 units currently available EXW UAE, this product is suitable for bulk procurement and can also be sold by metric ton. While the flange does not come with certification by default, it can be provided upon request to meet specific project needs.

Specifications:

– Product Name: 12" 150# Mild Steel Flange
– Material: Mild Steel
– Size: 12 inches (DN300)
– Pressure Rating: 150# (Class 150)
– Flange Types: Slip-On, Weld Neck, Blind, Threaded, or Socket Weld
– Standard: ANSI B16.5 / ASME B16.5
– Face Type: Raised Face (RF) or Flat Face (FF)
– Application: Oil & gas, HVAC, water treatment, industrial piping, structural systems
– Surface Coating: Bare steel, galvanized, or painted (as per request)
– Manufacturing Method: Forged, cast, or machined
– Weight: Varies based on type and thickness
– Quantity Available: 10 units
– Sale Unit: Per piece or per metric ton
– Certification: Not certified unless specified
– Location: EXW UAE
– Availability: Bulk orders preferred
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Width	482.6 mm
Weight	38–44 kg
ISO 15926 Pt 4	1828
PCA RDS Code	RDS13307654
CFIHOS ID	CFIHOS-30000304
IFC Class	IfcPipeFitting
Lower Limit Design Temperature	-29°C
Lower Limit Design Pressure	285 PSI
