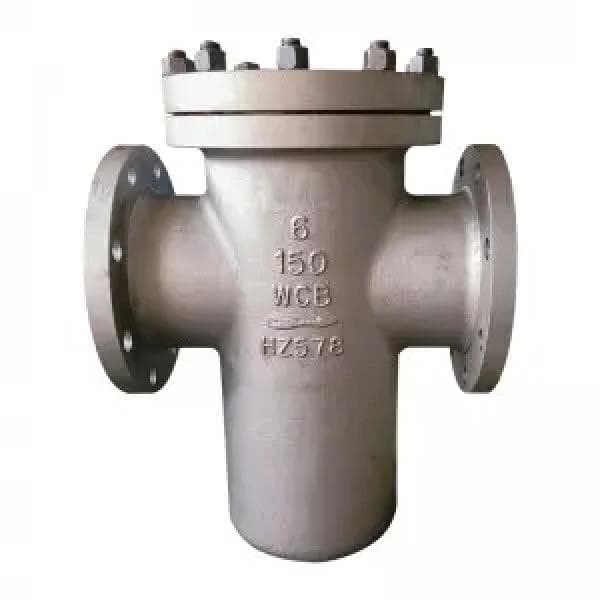

NSW Basket Strainer – Class 150–2500, WCB/CF8M Body, Flanged or Welded Ends

The NSW Basket Strainer is a heavy-duty filtration device designed to remove solid particles from fluid streams in high-pressure pipeline systems. Manufactured to ASME B16.34 and API 6D dimensional standards, it offers robust construction and extended service life in applications ranging from oil & gas and chemical processing to power generation and water treatment.

This strainer features a large basket-type screen element designed for high debris-holding capacity and easy maintenance. Constructed from corrosion-resistant materials including stainless steel, duplex stainless, Monel, and Hastelloy, the internal screen ensures reliable operation across a broad range of service fluids.

With pressure ratings from Class 150 to 2500 and end connections including RF/FF/RTJ flanges, socket weld (SW), butt weld (BW), or NPT threaded, the NSW basket strainer supports flexible installation in a variety of critical applications. Optional fire-safe construction, NACE compliance, and advanced non-destructive testing make it suitable for aggressive or hazardous service.

Specifications:
– Product Type: Basket-Type Pipeline Strainer
– Operation: Passive (Inline Mechanical Filtration)
– Size Range: NPS 1/2" to NPS 48"
– Pressure Class: 150#, 300#, 600#, 900#, 1500#, 2500#
– Body Materials:
  – Carbon Steel: WCB
  – Stainless Steel: CF8, CF3, CF8M, CF3M
  – Low Temp Steel: LCB
  – Chrome-Moly: C5, WC6, WC9, W12
  – Duplex/Super Duplex: 4A, 5A, 6A
  – Bronze/Alloy: C95800
– Screen Materials: SS304, SS316, SS316L, F51, 4A, 5A, 6A, Monel, Hastelloy
– End Connections:
  – Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ) Flanged (ASME B16.5 / B16.47)
  – Socket Weld (ASME B16.11)
  – Butt Weld (ASME B16.25)
  – Threaded (NPT – ASME B1.20.1)
– Face-to-Face Dimensions: API 6D, ASME B16.10
– Design Standard: ASME B16.34
– Testing Standards: API 598
– Fire Safe Design: Optional (API 607 / API 6FA)
– Optional Compliance:
  – NACE MR-0175 / MR-0103
  – ISO 15848 (Fugitive Emission)
  – Non-Destructive Testing: PMI, UT, RT, PT, MT
– Application Media: Water, hydrocarbons, solvents, acids, slurries, seawater, steam
– Installation Orientation: Vertical or horizontal (based on flow and access)
– Applications: Oil & gas, chemical processing, power plants, desalination, industrial utilities
– Maintenance: Removable basket screen for cleaning or replacement
