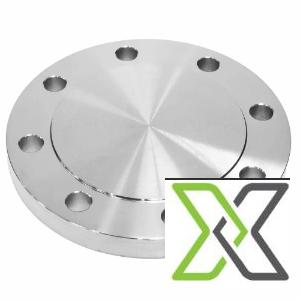

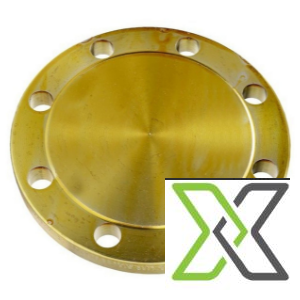

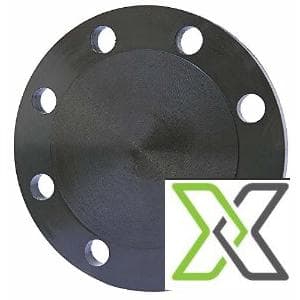

Blind Flanges – Carbon Steel & Stainless Steel, ½” to 48”, Class PN6 to 1500 LBS

These Blind Flanges are used to close the ends of piping systems and pressure vessels, providing a secure seal and allowing for easy access for inspection, maintenance, or future expansion. Manufactured from robust carbon steel (A105, ASTM A234, SS400) and corrosion-resistant stainless steel (SS304/L, SS316/L), they are compatible with a broad range of applications including oil & gas, petrochemical, power, and water treatment systems. Available in sizes from ½ inch (15 NB) to 48 inches (1200 NB), and pressure classes from PN6 to PN40 and ANSI 150 to 1500 LBS, these flanges meet international standards for durability and dimensional accuracy.

Specification:

– Product Type: Blind Flange (no bore)
– Materials:
 • Carbon Steel: ASTM A105, ASTM A234, SS400
 • Stainless Steel: SS304, SS304L, SS316, SS316L
– Size Range: ½” (15 NB) to 48” (1200 NB)
– Pressure Ratings:
 • PN Ratings: PN6, PN10, PN16, PN25, PN40
 • JIS Ratings: 5K, 10K, 16K
 • ANSI Ratings: 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS
– End Connection: Raised Face (RF), Flat Face (FF), or Ring Type Joint (RTJ)
– Standards: ASME B16.5, EN 1092-1, JIS B2220
– Surface Finish:
 • Carbon Steel – Black anti-corrosion coated or bare
 • Stainless Steel – Polished or pickled
– Bolt Hole Drilling: As per respective flange standard
– Applications: Piping terminations, pressure vessel closures, testing points
– Origin: Global supply including China, India, Korea

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
