36" Class 600 ASME B16.47A Flange – Raised Face – Heat No. C.130747

ReflowX SKU: REF-6073

Product Details

Quantity

4
Availability (Lead Time)

N/A
Product Location

United Arab Emirates
Condition

New
OEM

ReflowX
Equipment code

CFIHOS-30000304
Shipping Rate

Get Quotation Whatsapp

Short Description

High-performance 36-inch Class 600 flange as per ASME B16.47 Series A. Designed for critical flow applications in oil & gas and industrial systems.

Description

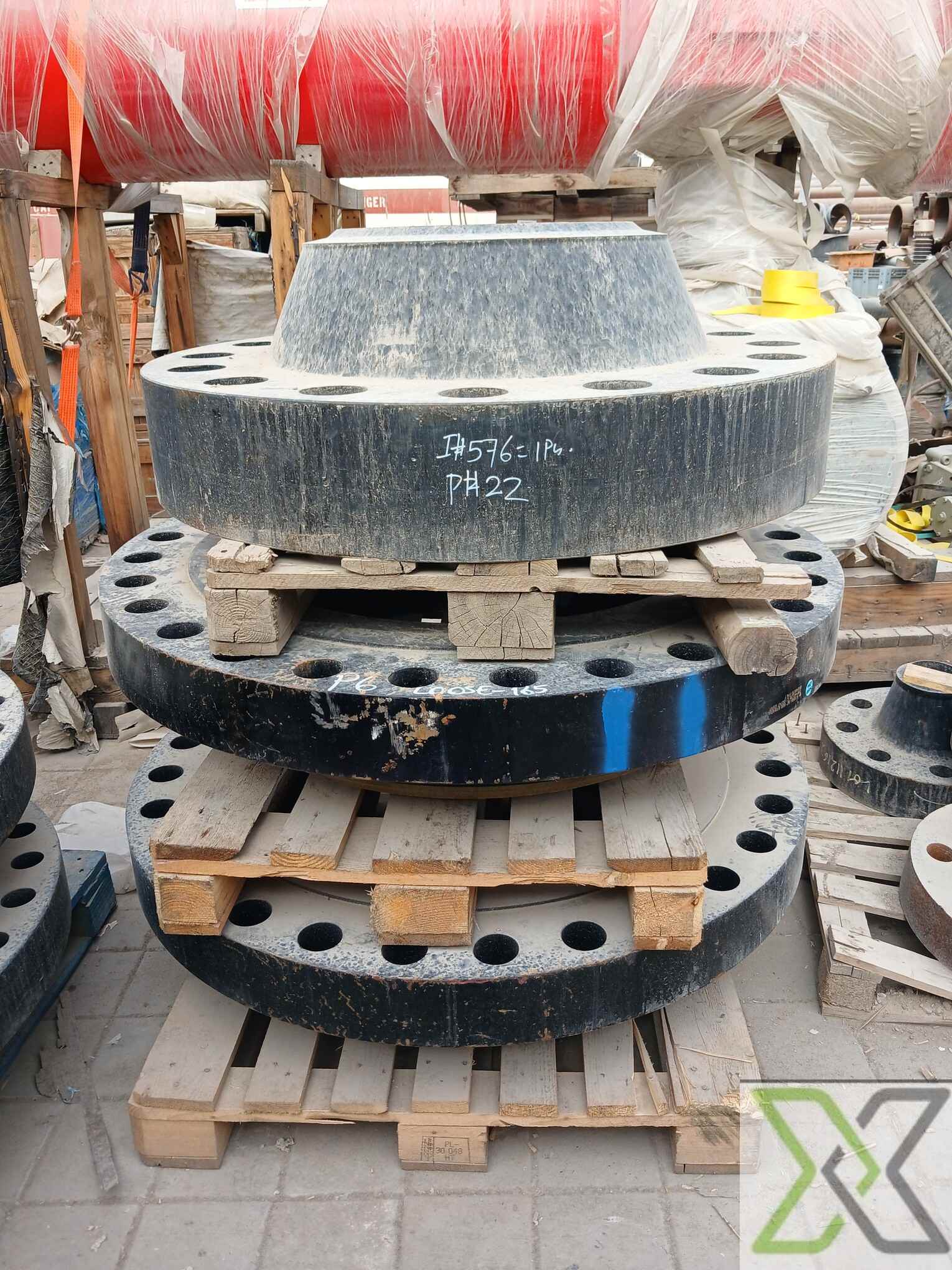

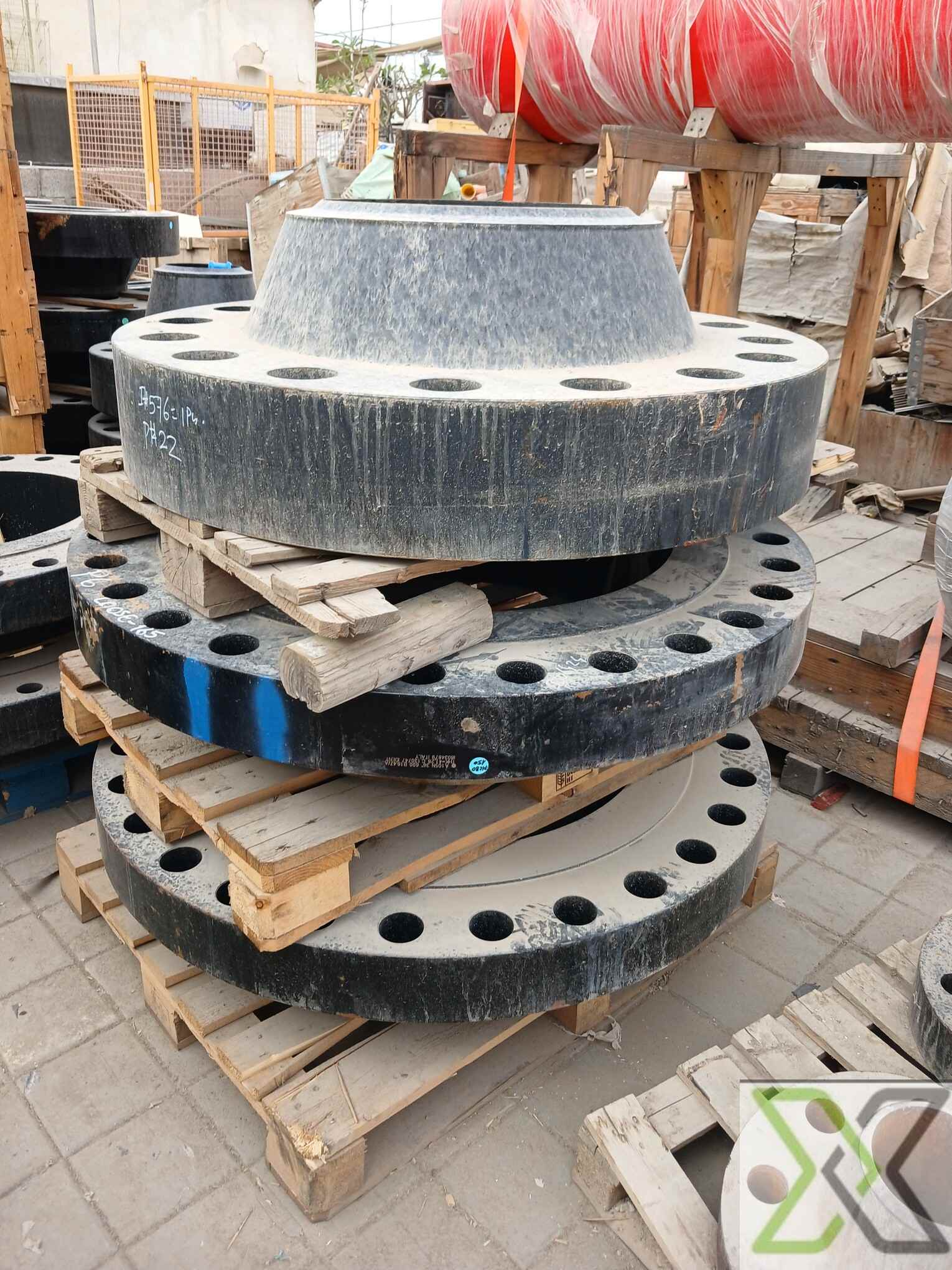

36-Inch Class 600 ASME B16.47A Flange – Raised Face – Heat No. C.130747

Available for sale is a 36-inch Class 600 flange, manufactured in accordance with the ASME B16.47 Series A standard for large diameter steel pipe flanges. This unit is built for medium to high-pressure pipelines in oil & gas, petrochemical, and power generation industries.

This flange features a raised face (RF) and comes with heat number C.130747 for full traceability. Designed to withstand rigorous mechanical and pressure conditions, it is available in carbon steel (e.g., ASTM A105) or stainless steel (e.g., ASTM A182 F316). Testing includes ultrasonic (UT), radiography (RT), and hydrostatic per ASME code compliance.

Specifications:

– Size: 36 inches (NPS)
– Pressure Rating: Class 600
– Standard: ASME B16.47 Series A
– Thickness: 41.28 mm
– Facing Type: Raised Face (RF) (or RTJ if available)
– Heat Number: C.130747
– Material: [Specify material – e.g., ASTM A105 / A182 F316]
– Bolt Circle Diameter (BCD): [Specify – estimated ~1041 mm for 36” Class 600]
– Number & Size of Bolt Holes: [Specify – estimated 40 holes x 1-1/2”]
– Coating: Anti-corrosion / Zinc-Plated (if required)
– Testing: UT / RT / Hydrostatic per ASME standards
– Packaging: Wooden Crates / Pallets

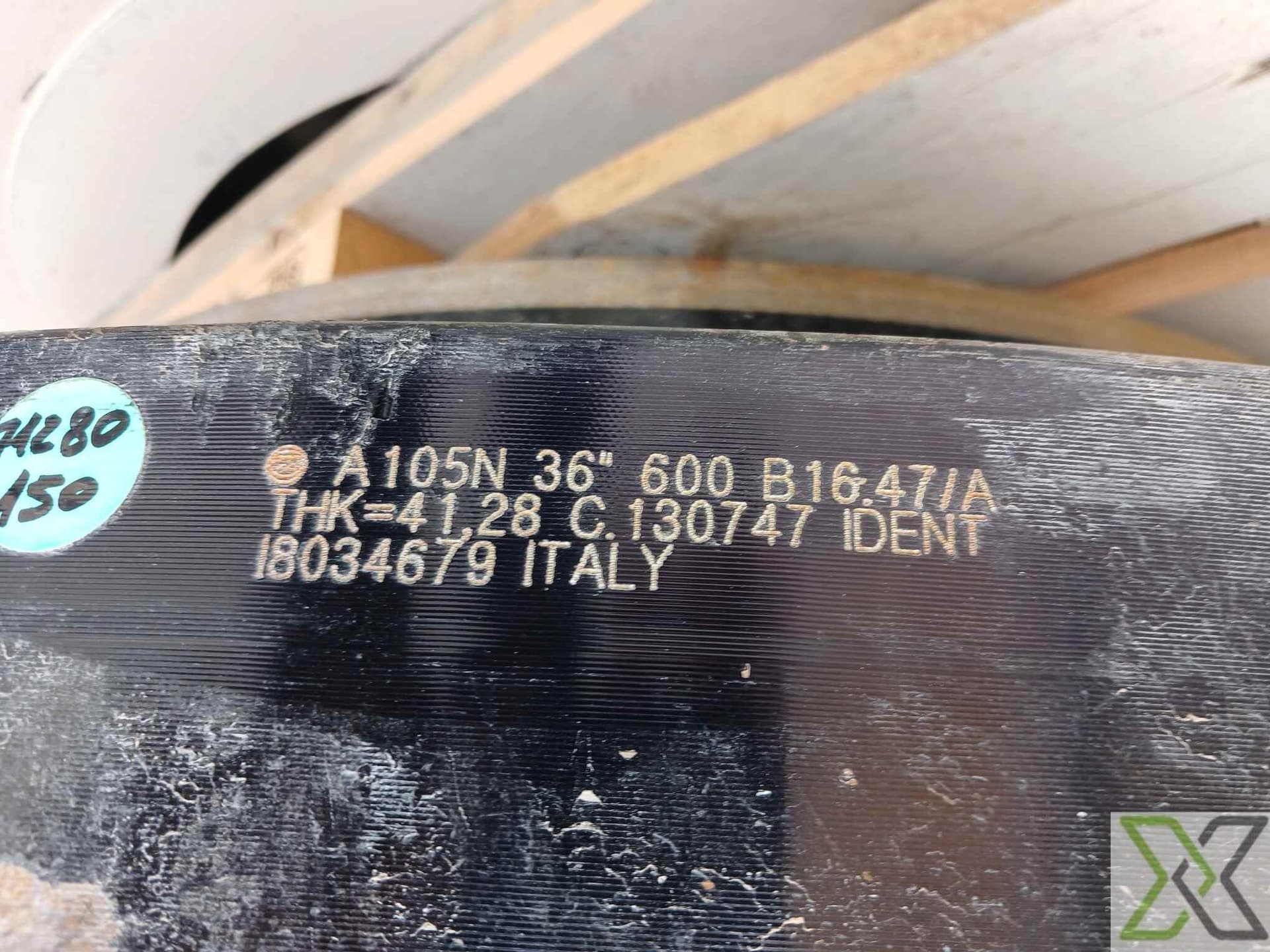

– Marking: Size, Class, Material, Heat No., Standard

Applications:
– Oil & gas pipeline flanging
– Petrochemical and refinery connections
– High-capacity flow and vent systems
– Industrial fluid handling infrastructure

Features & Benefits:
– Built to ASME B16.47A standards
– Large-diameter, high-pressure design
– Traceable heat number marking
– Customizable material and testing options
– Ideal for critical applications requiring durability and compliance

For further specifications or to inquire about this equipment and ReflowX's logistics services, please contact ReflowX at info@reflowx.com.

Technical Details

ISO 15926 Pt 4	1828
PCA RDS Code	RDS13307654
CFIHOS ID	CFIHOS-30000304
IFC Class	IfcPipeFitting
Lower Limit Design Temperature	–29°C
Lower Limit Design Pressure	1,440 psi

General Terms

ReflowX and the seller retain the right to evaluate and approve offers.
Buyers should verify quantities and conditions upon delivery.
After successful engagement, both buyer and seller manage communication for payment terms and delivery schedule.
All parties agree to adhere to ReflowX Terms and Conditions in transactions.
Buyers can request value-added services such as pre-purchase inspections, Expediting & Delivery Services through ReflowX. Contact us!
