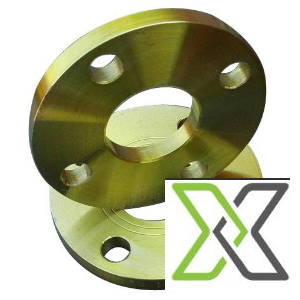

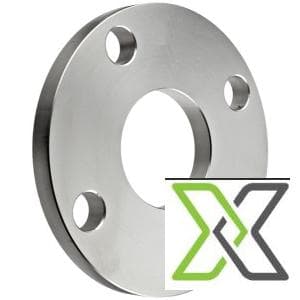

Plate Flanges – Carbon Steel & Stainless Steel, ½” to 48”, JIS 5K/10K/16K & PN10/16

ReflowX SKU: REF-5963

Product Details

Quantity

500
Availability (Lead Time)

6-10 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

ReflowX
Equipment code

CFIHOS-30000304

Get Quotation Whatsapp

Short Description

Reliable plate flanges in carbon steel and stainless steel, available in sizes ½” to 48” and rated for JIS 5K, 10K, 16K and PN10, PN16 pressure classes.

Description

Plate Flanges – Carbon Steel & Stainless Steel, ½” to 48”, JIS 5K/10K/16K & PN10/16
Description:

These Plate Flanges are precision-manufactured from high-quality carbon steel (A105, ASTM A234, SS400) and stainless steel (SS304/L, SS316/L) materials to provide durable, corrosion-resistant flange connections for industrial piping systems. Suitable for sizes ranging from ½ inch (15 NB) up to 48 inches (1200 NB), these flanges comply with multiple international standards, including JIS (5K, 10K, 16K) and PN (PN10, PN16) pressure classes, making them versatile for various applications in chemical processing, water treatment, oil & gas, and general industrial use. The robust design and precision engineering ensure leak-tight sealing and long-term service life in demanding environments.

Specification:

– Product Type: Plate Flange
– Materials:
• Carbon Steel: ASTM A105, ASTM A234, SS400
• Stainless Steel: SS304, SS304L, SS316, SS316L
– Size Range: ½” (15 NB) to 48” (1200 NB)
– Pressure Ratings:
• JIS Classes: 5K, 10K, 16K
• PN Classes: PN10, PN16
– Standard Compliance: ASME B16.5, JIS B2220, EN 1092-1
– Face Type: Raised Face (typical)
– Surface Finish:
• Carbon Steel: Black coated or bare finish
• Stainless Steel: Polished or passivated finish
– Bolt Hole Drilling: Per relevant flange standard
– Application: Used in piping systems for general industrial, chemical, and oil & gas sectors
– Origin: China, India, Korea (typical manufacturing regions)
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Width	½” (15 NB) to 48” (1200 NB)
ISO 15926 Pt 4	1828
PCA RDS Code	RDS13307654
CFIHOS ID	CFIHOS-30000304
IFC Class	IfcPipeFitting
