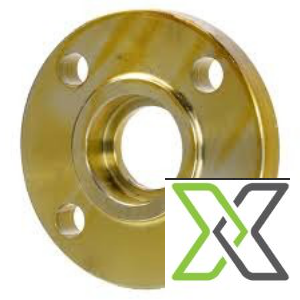

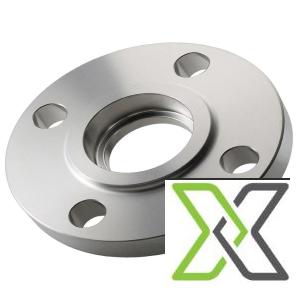

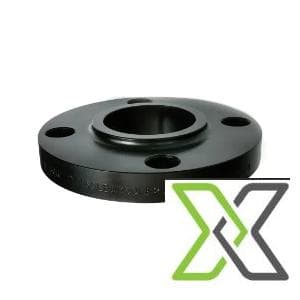

Socket Weld Flanges – Carbon & Stainless Steel, ½” to 48”, PN & ANSI Classes

These Socket Weld Flanges are engineered for secure and leak-proof connections in high-pressure piping systems. Manufactured from carbon steel (A105, ASTM A234, SS400) and stainless steel (SS304/L, SS316/L), they are designed for pipe sizes ranging from ½” (15 NB) to 48” (1200 NB). Socket weld flanges are ideal for small-bore piping and critical applications where strong, durable welds are necessary. They are available in a full range of pressure classes including PN6 to PN40, and ANSI 150 to 1500 lbs, complying with international flange standards. These flanges are typically used in refineries, chemical plants, and high-pressure steam or gas lines.

Specification:

– Product Type: Socket Weld Flange
– Materials:
 • Carbon Steel: ASTM A105, ASTM A234, SS400
 • Stainless Steel: SS304, SS304L, SS316, SS316L
– Size Range: ½” (15 NB) to 48” (1200 NB)
– Pressure Classes:
 • PN Series: PN6, PN10, PN16, PN25, PN40
 • ANSI Series: 150, 300, 600, 900, 1500 lbs
– Standards: ASME B16.5, JIS B2220, EN 1092-1
– Face Type: Raised Face (RF) or Flat Face (FF)
– Surface Finish:
 • Carbon Steel: Black coated or bare
 • Stainless Steel: Passivated or polished
– End Connection: Socket weld (pipe inserts into the socket for strong weld joint)
– Typical Applications: Oil & gas pipelines, high-pressure steam, chemical processing, and power generation
– Origin: China, India, Korea (typical)

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
