Weld Neck Flange Carbon Steel & Stainless Steel | ANSI & DIN Standards | PN6 to 1500 LBS | Sizes 1/2” to 48”

Weld Neck Flanges are engineered from durable Carbon Steel (A105, ASTM A234) and Stainless Steel (SS 400, SS 304/L, SS 316/L), suitable for critical applications requiring strong, leak-proof connections. These flanges comply with ANSI/ASME B16.5 and DIN standards and support pressure classes from PN6 up to 1500 LBS. Their beveled ends allow for secure butt welding to pipelines. The surface finish options include black anti-corrosion coating or mill finish, making them adaptable for various industrial environments including oil & gas, petrochemical, and chemical plants. Sizes range from 1/2” (15 NB) to 48” (1200 NB).

Specification:

– Product Type: Weld Neck Flange (WNRF)
– Material:
 • Carbon Steel: ASTM A105, ASTM A234, SS400
 • Stainless Steel: SS304, SS304L, SS316, SS316L
– Size Range: ½” (15 NB) to 48” (1200 NB)
– Pressure Ratings:
 • PN Ratings: PN6, PN10, PN16, PN25, PN40
 • ANSI Ratings: 150, 300, 600, 900, 1500 lbs
– Standards: ANSI B16.5, ASME B16.5, DIN, EN1092
– Face Type: Raised Face (RF)
– Connection Type: Beveled end for butt welding
– Surface Finish:
 • Carbon Steel: Black painted or bare mill finish

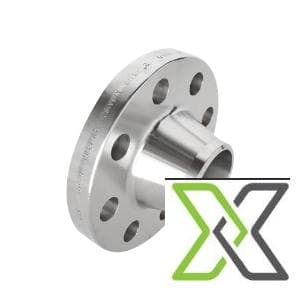

 • Stainless Steel: Pickled and passivated
– Typical Applications: High pressure piping systems, oil & gas, petrochemical, chemical processing, power plants
– Origin: China, India, Korea
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
