Full Specification:

Manufacturer: Rosemount

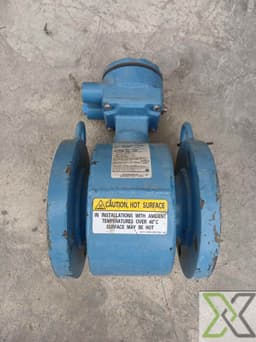

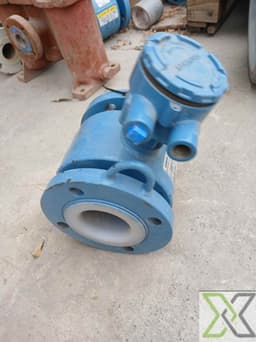

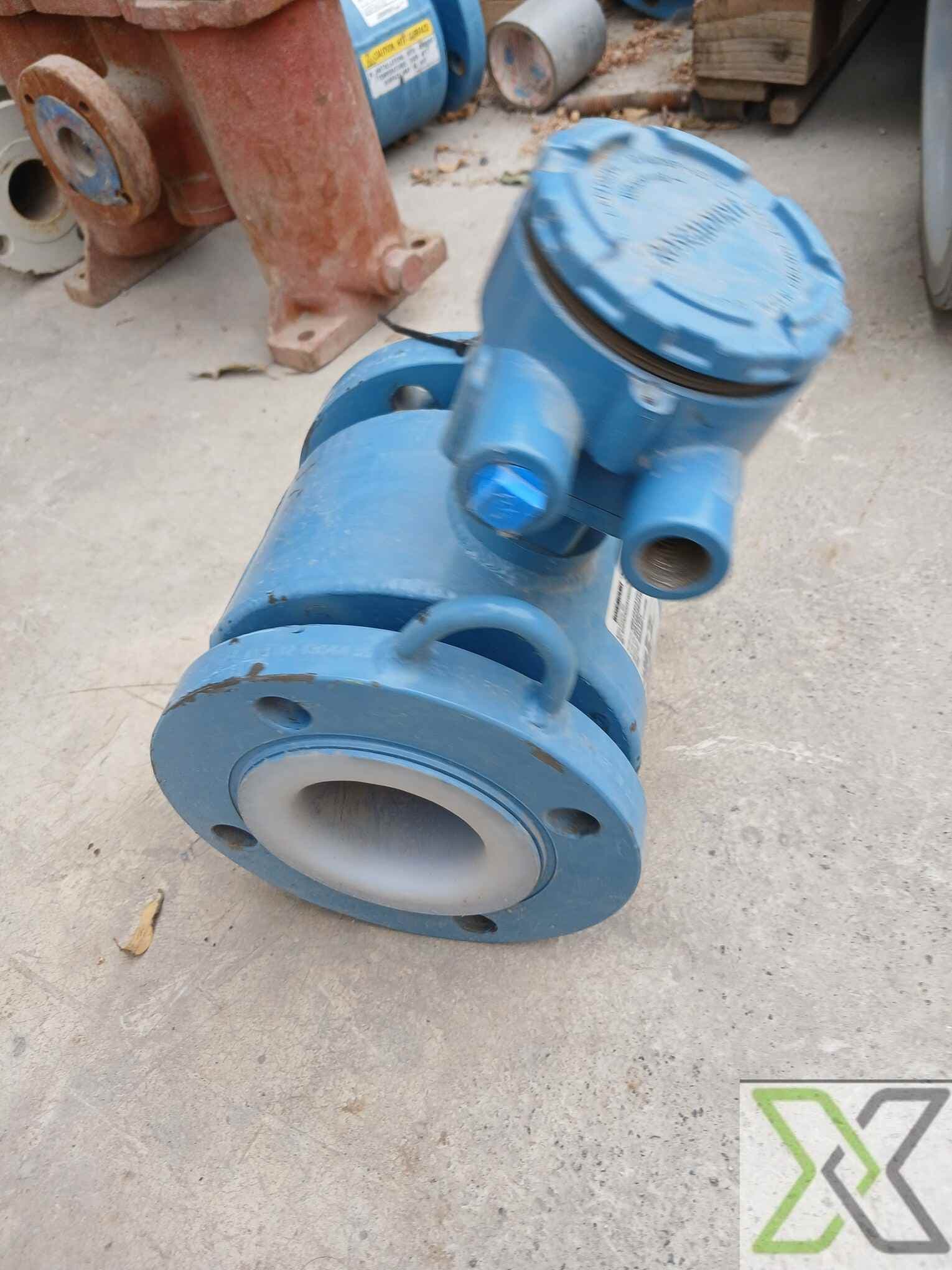

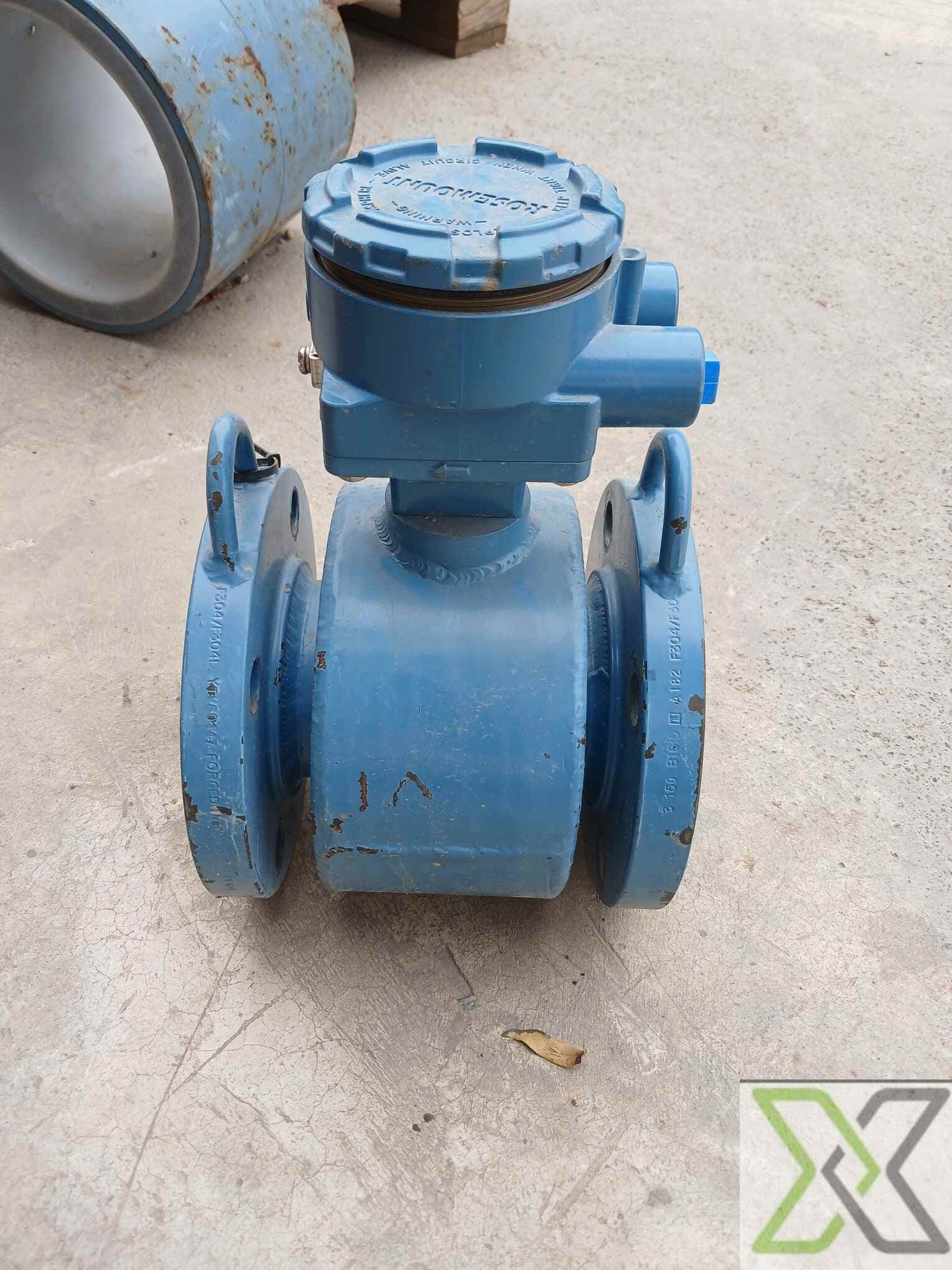

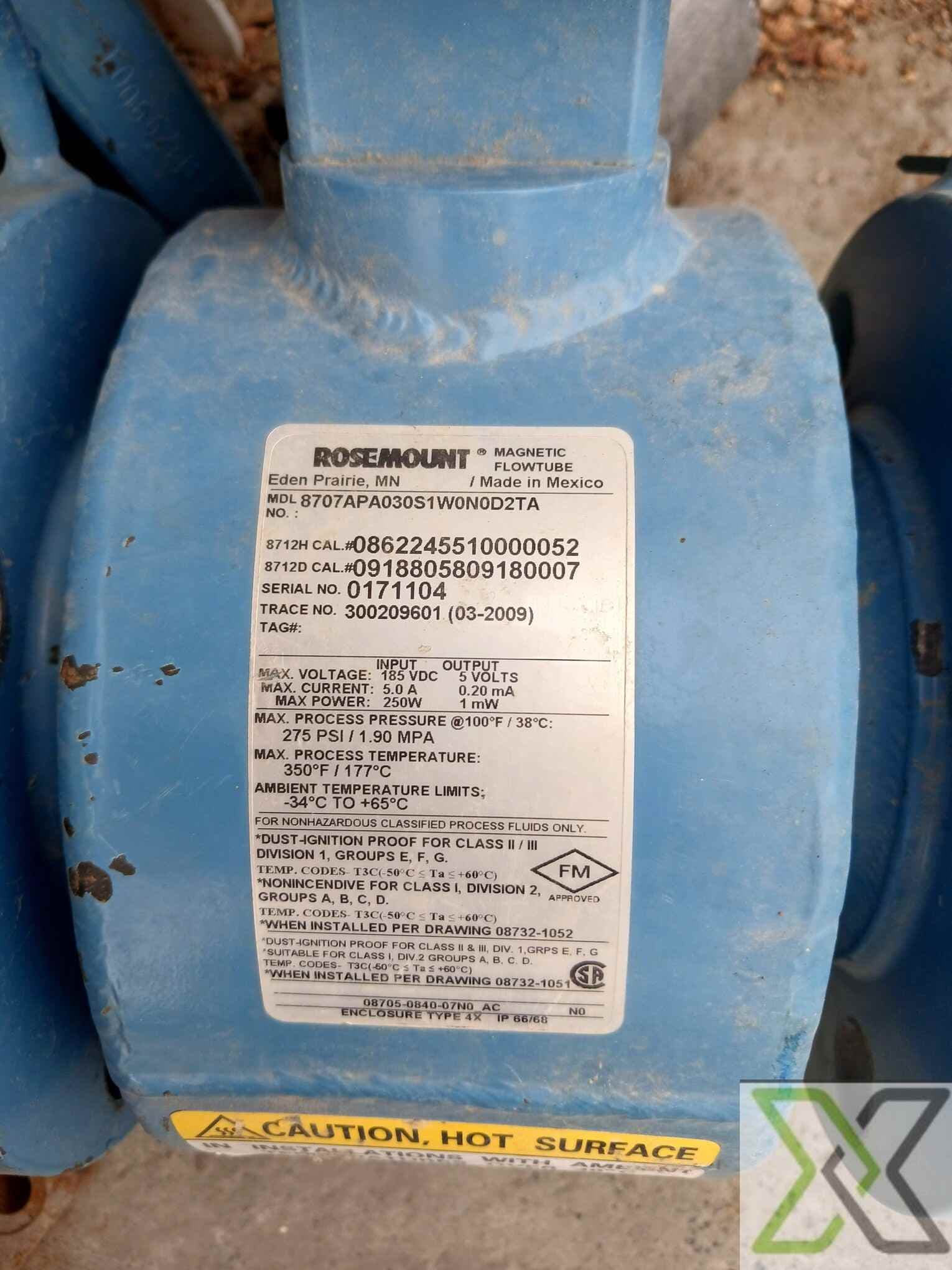

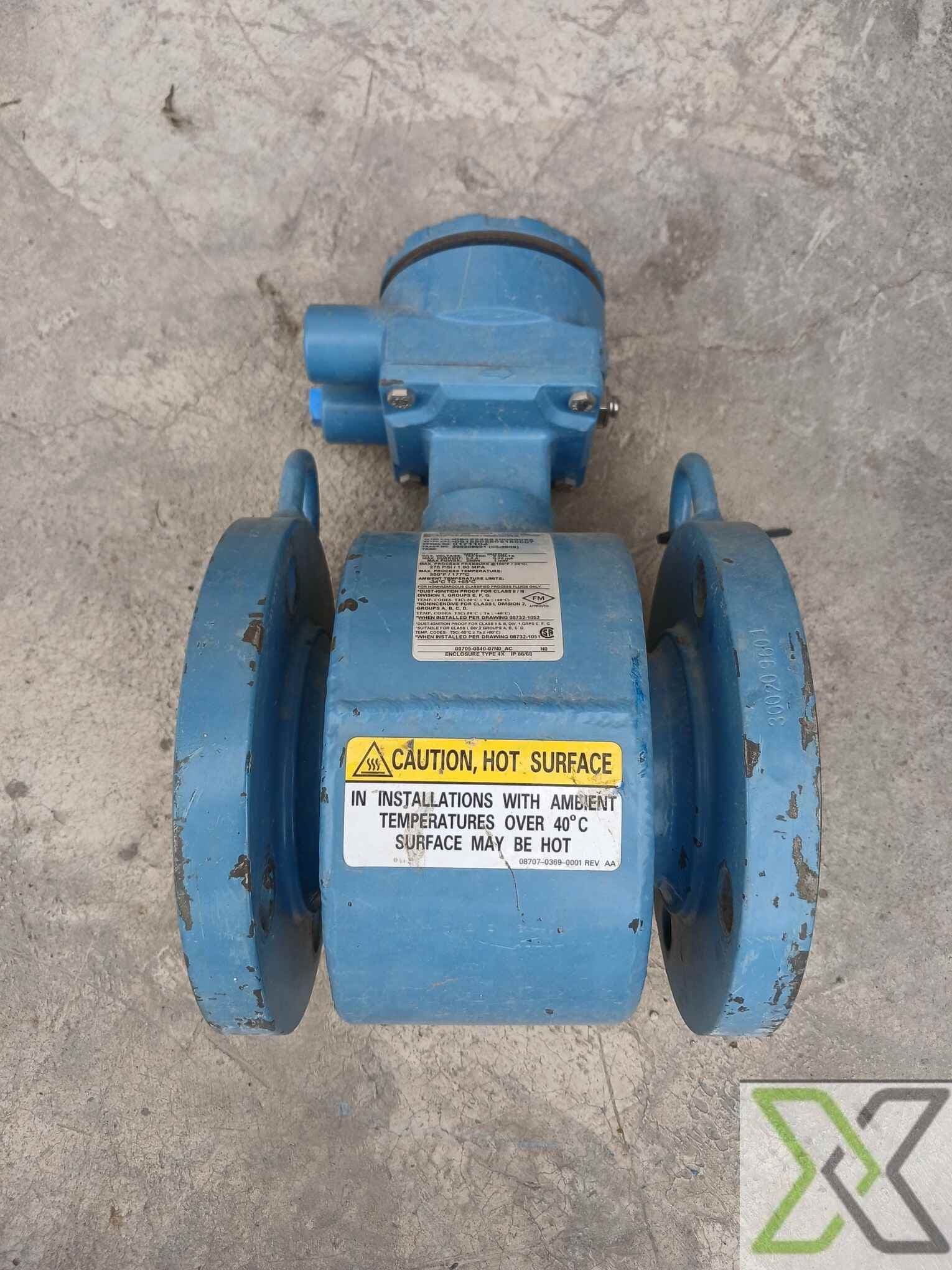

Model: 8707APA030S1W0ND02TA
Country of Origin: Mexico
Technology: Electromagnetic Flow Meter

Electrical Specifications:

• Max Voltage: 185V DC
• Max Current: 1.5A
• Max Power Consumption: 250W
• Output Signal: 5V, 0.20mA

Process Specifications:

• Max Process Pressure: 275 PSI (1.90 MPa)
• Max Process Temperature: 350°F (177°C)
• Ambient Temperature Limits: -34°C to +65°C
• Medium Compatibility: Suitable for conductive liquids

Certifications & Approvals:

• FM Approved – Dust-Ignition Proof
• Classification:
  • Class I / III
  • Division I
  • Groups E, F, G

    For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
