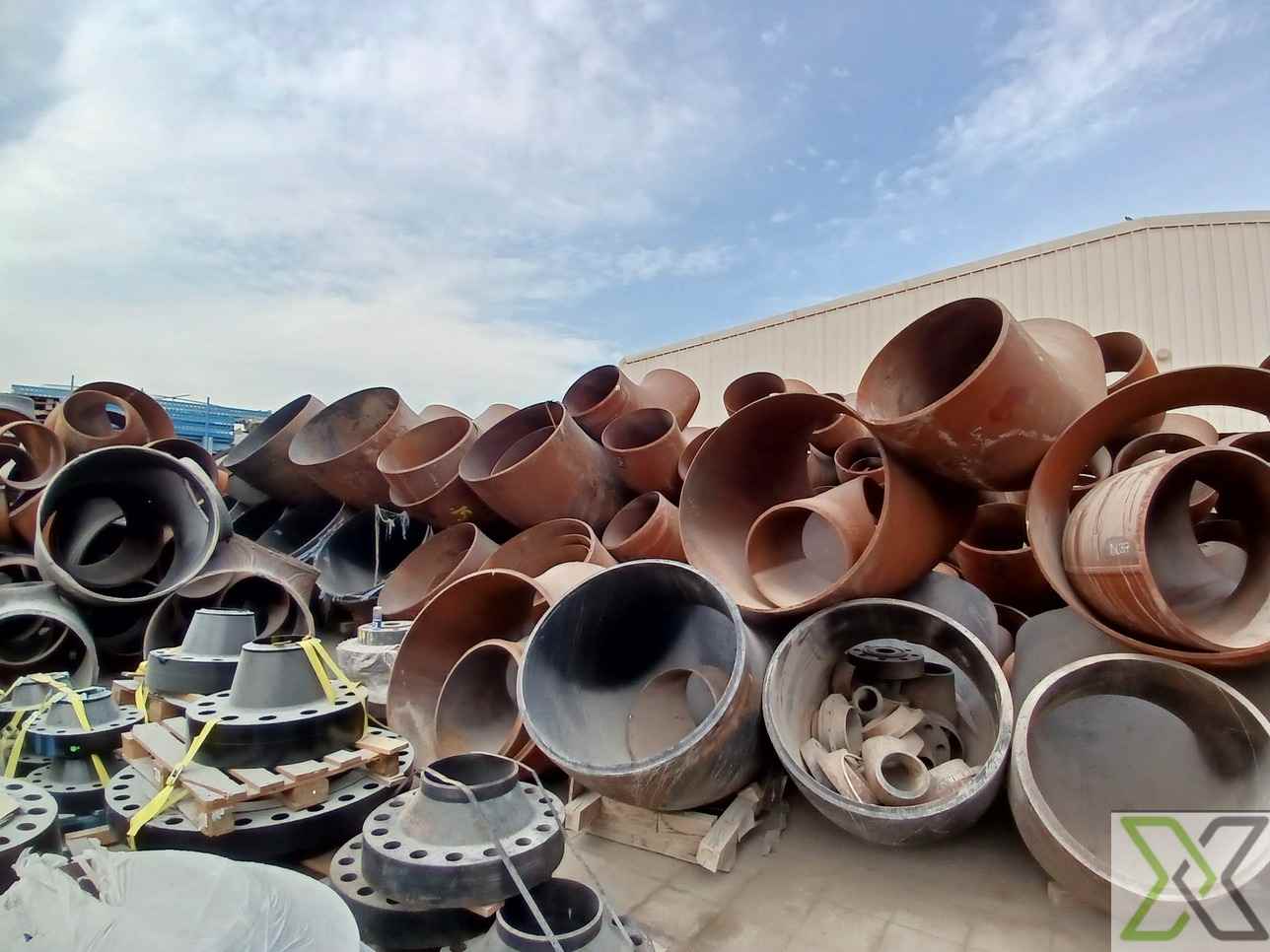

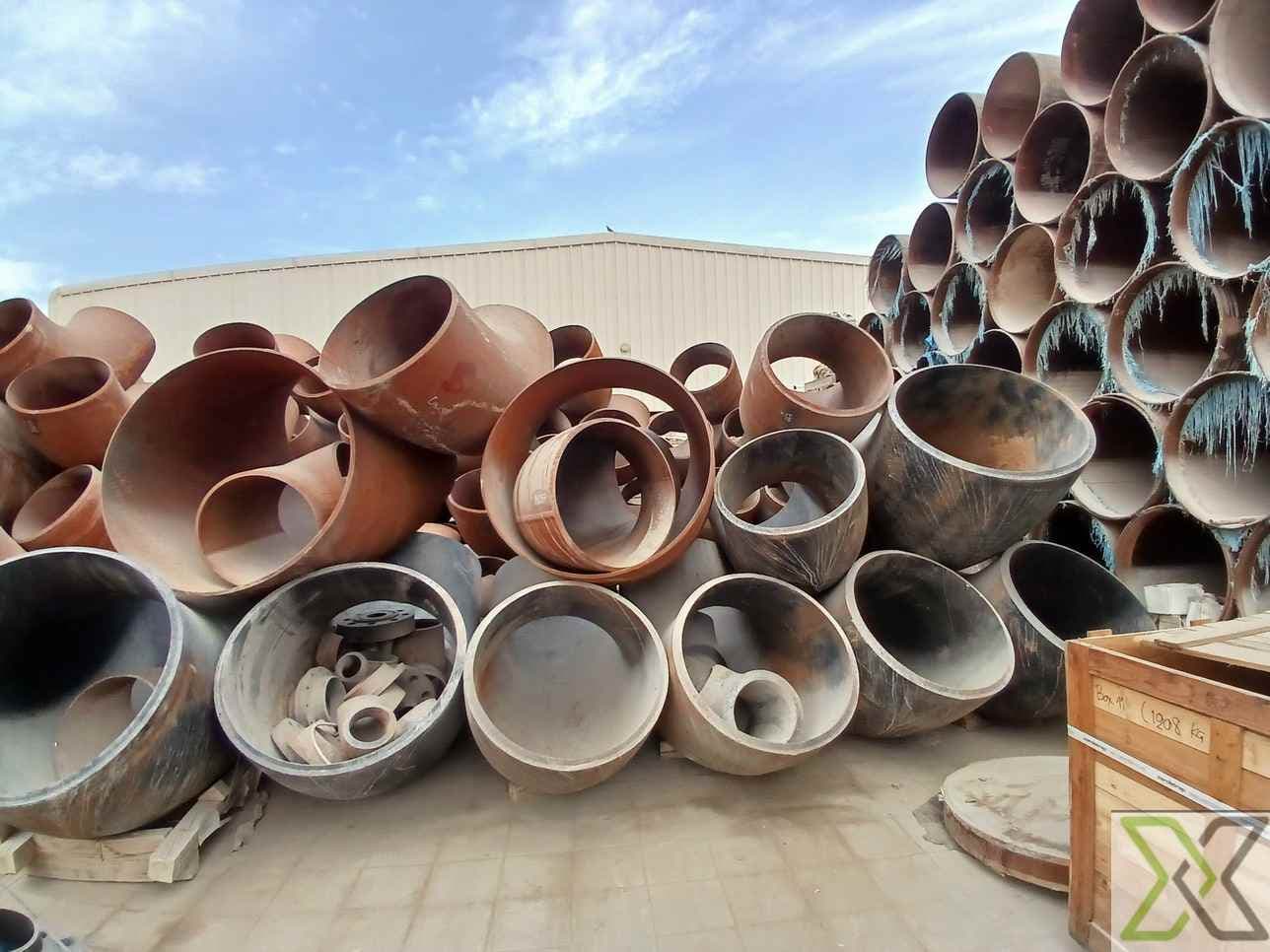

Pipe Elbows Specification – Long & Short Radius

1. General Information

• Fitting Type: Pipe Elbow
• Radius Type:
  • Long Radius (LR): Centerline radius = 1.5 × Nominal Pipe Diameter (NPD)
  • Short Radius (SR): Centerline radius = 1.0 × Nominal Pipe Diameter (NPD)
• Size Range: 1/2" to 48" (Specify exact size if needed)
• Pressure Class: ASME B16.9 Standard Ratings
• Standard Compliance:
  • ASME B16.9 (Factory-Made Wrought Steel Fittings)
  • ASTM A234 (Carbon & Alloy Steel)
  • ASTM A403 (Stainless Steel)
  • MSS-SP 75 (High-Yield Fittings)

2. Material & Manufacturing

• Material Options:
  • Carbon Steel: ASTM A234 WPB, WPC
  • Stainless Steel: ASTM A403 WP304, WP316
  • Alloy Steel: ASTM A234 WP22, WP91
  • Duplex & Super Duplex: ASTM A815 UNS S31803, S32750
  • Nickel Alloys: ASTM B366 (Inconel, Monel, Hastelloy)
• Manufacturing Process: Seamless / Welded / Butt-Weld

3. Dimensions & Thickness

• Wall Thickness (WT):
  • SCH 10 / SCH 40 / SCH 80 / SCH 160 / SCH XXS (Specify as required)
• Elbow Angle Options:
  • 90° (Right-Angle Turn)
  • 45° (Smooth Direction Change)
  • 180° (Return Bend)

4. Mechanical & Performance Properties

• Yield Strength: 240 – 485 MPa (Depends on material grade)
• Tensile Strength: 415 – 760 MPa (Depends on material grade)
• Temperature Resistance: -50°C to 600°C (Material dependent)
• Corrosion Resistance: Available with coatings (FBE, 3LPE, Galvanized, etc.)

  For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
