BT-FYS Y-Strainer – Flanged ANSI 150L / JIS 10K | SS Screen, CF8M/CF8/WCB

BT-FYS Y-Strainer – ANSI 150L / JIS 10K, Flanged, Stainless Steel Screen

Product Details

  • Quantity
    100
  • Availability (Lead Time)
    4-6 Weeks
  • Product Location
    Taiwan
  • Condition
    New
  • OEM
    Bola-Tek
  • Equipment code
    CFIHOS-30000506
Get Quotation Whatsapp

Short Description

Y-strainer with ANSI 150L and JIS 10K flange ratings, available in sizes from 1/2" to 12". Built with stainless steel screen (AISI 304) and designed to ANSI B16.34. Ideal for particle filtration in pipelines.

Description

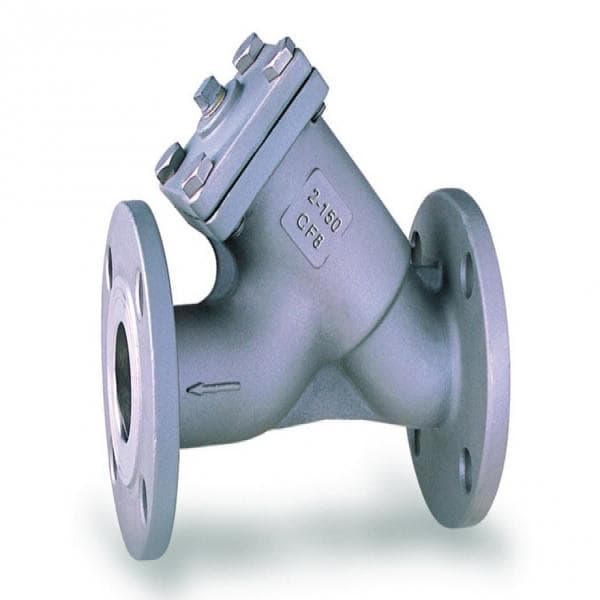

BT-FYS Y-Strainer – ANSI 150L / JIS 10K, Flanged, Stainless Steel Screen

The BT-FYS Y-Strainer is a high-performance filtration solution engineered to protect downstream equipment by capturing solids and debris from process media. Designed for ANSI 150Lbs and JIS 10K pressure classes, this strainer is compatible with standard piping configurations via flanged ends that conform to ANSI B16.5 and JIS B2239 dimensions. Each unit is meticulously crafted to meet ANSI B16.34 design standards and undergoes API 598 pressure testing, ensuring structural integrity and leak-free performance in service.

This Y-strainer incorporates a corrosion-resistant AISI 304 stainless steel screen, providing efficient particle separation and long service life. The BT-FYS is offered in a wide size range from 1/2" to 12", with optional higher pressure models in ANSI 300L, JIS 20K, and DIN PN16 ratings to suit more demanding systems.

Material choices include ASTM-A351-CF8M, CF8, and ASTM-A216-WCB, making this Y-strainer adaptable to a wide variety of fluids and environmental conditions, including aggressive chemical or high-temperature applications.

Specifications:

Product Type: Y-Strainer
Model: BT-FYS
Size Range: 1/2" to 12"
Pressure Rating: ANSI 150Lbs, JIS 10K (optional ANSI 300Lbs, JIS 20K, DIN PN16)
Flange Standards: ANSI B16.5, JIS B2239
Design Standard: ANSI B16.34
Testing Standard: API 598
Screen Material: AISI 304 stainless steel
Body Material Options:
 • ASTM A351 CF8M (316 stainless steel)
 • ASTM A351 CF8 (304 stainless steel)
 • ASTM A216 WCB (carbon steel)
Applications: Industrial fluid systems, pump protection, filtration systems, chemical processing, HVAC, oil & gas
Connection Type: Flanged
Strainer Type: Y-pattern with removable screen for maintenance

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
