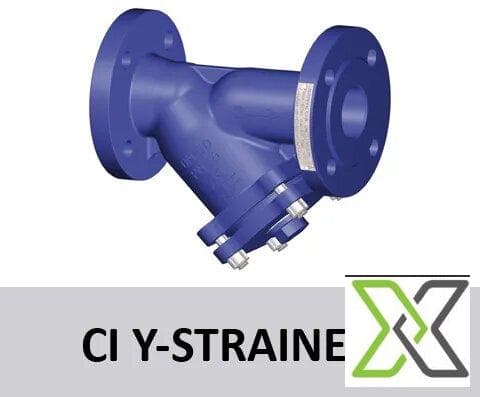

CI Y-Strainer | PN16 / Class 125/150 | 2”–20” | Flanged Ends

ReflowX SKU: REF-6379

Product Details

Quantity

100
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

ReflowX
Equipment code

CFIHOS-30000506

Get Quotation Whatsapp

Short Description

Robust Y-type cast iron (CI) strainer with flanged ends, suitable for PN16 or ANSI Class 125/150 pressure ratings. Available in sizes 2" to 20" for reliable pipeline protection.

Description

CI Y-Strainer | PN16 / Class 125/150 | 2”–20” | Flanged Ends

Description

This Cast Iron Y-Type Strainer is engineered to efficiently remove debris from pipeline systems, protecting pumps, valves, and other critical equipment. Manufactured with a heavy-duty cast iron body, it is compatible with both PN16 and ANSI Class 125/150 pressure ratings. The strainer features a precision-meshed stainless steel screen, drain plug for easy maintenance, and bolted cover for secure operation. With flanged ends, it provides secure, leak-proof installation across various water, oil, and gas applications. Ideal for industrial, HVAC, and utility systems, the Y-strainer is available in sizes ranging from 2 inches to 20 inches.

Specifications:

– Product Name: CI Y-Type Pipeline Strainer
– Body Material: Cast Iron (ASTM A126 Class B or equivalent)
– Design Type: Y-Type Strainer
– Size Range: 2” to 20” (DN50 to DN500)
– Pressure Class: PN16 / ANSI Class 125/150
– End Connections: Flanged Ends (EN 1092-2 or ANSI B16.1/B16.5)
– Screen Material: Stainless Steel (typically SS304 or SS316)
– Screen Type: Perforated or mesh-lined basket
– Cover Type: Bolted Cover with Sealing Gasket
– Drain Plug: Included for cleaning and maintenance
– Operating Temperature Range: -10°C to +200°C (depending on gasket)
– Working Pressure: Up to 16 bar (PN16) or 150 psi (Class 150)
– Flow Direction: Horizontal or vertical (downward flow recommended)
– Media Compatibility: Water, oil, air, steam, non-corrosive fluids
– Coating: Fusion-Bonded Epoxy (FBE) or industrial-grade enamel coating
– Installation Orientation: Horizontal standard; vertical optional
– Weight: Varies by size; e.g., approx. 18 kg (2”), up to 420 kg (20”)
– Standards Compliance: EN 558, ANSI B16.1, B16.5, B16.10
– Inspection & Access: Easy screen access via removable bolted cap
– Application Zones: HVAC, water treatment, fire protection, process piping
– Construction Features: Durable CI body, corrosion-resistant screen, precision-machined flanges
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Height	160 to 800
Width	200 to 860
Length	203 to 1000
Weight	18 kg to 420 kg
