Duplex Basket Strainer – DN150, PN150, Model IL.75

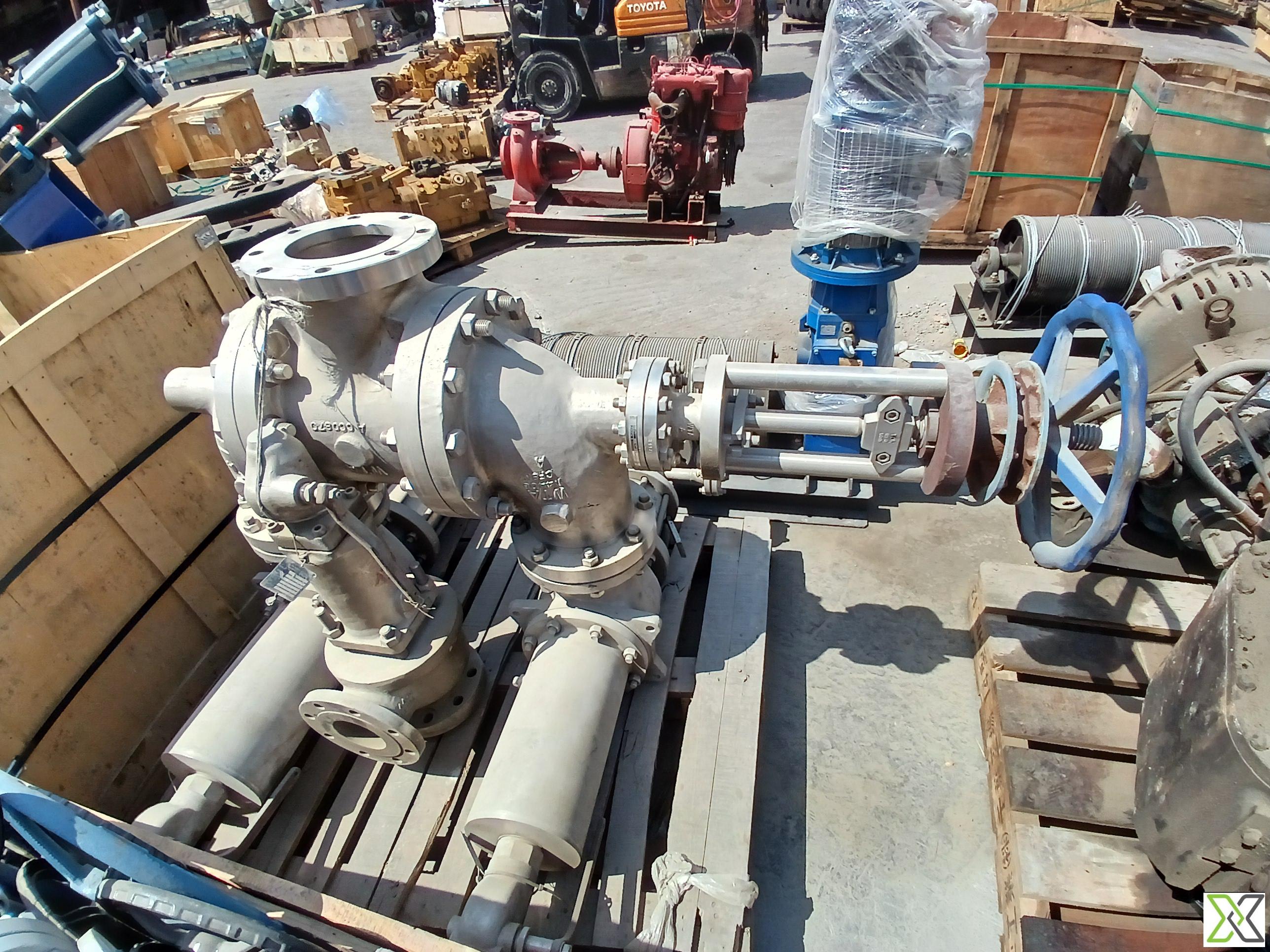

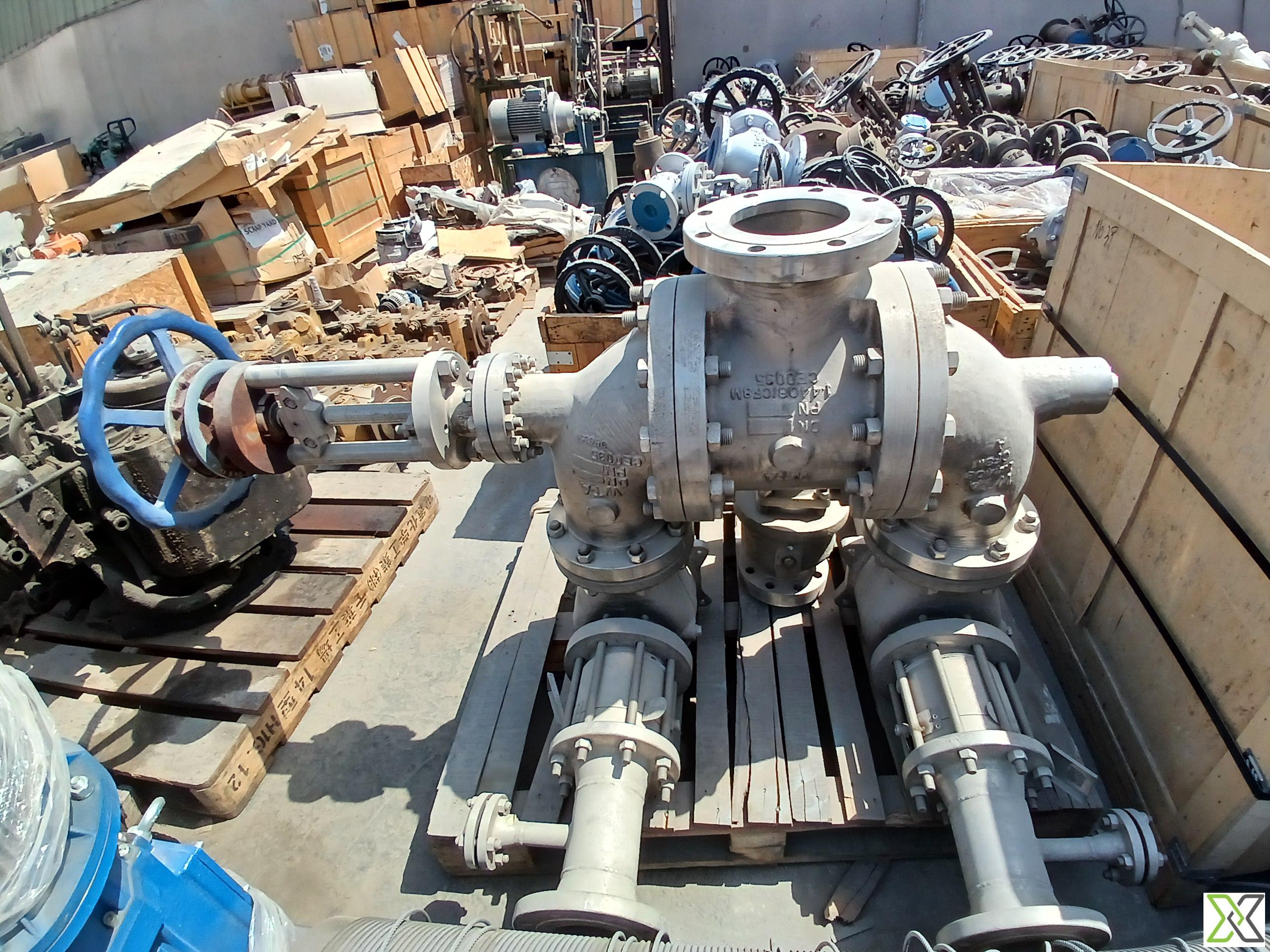

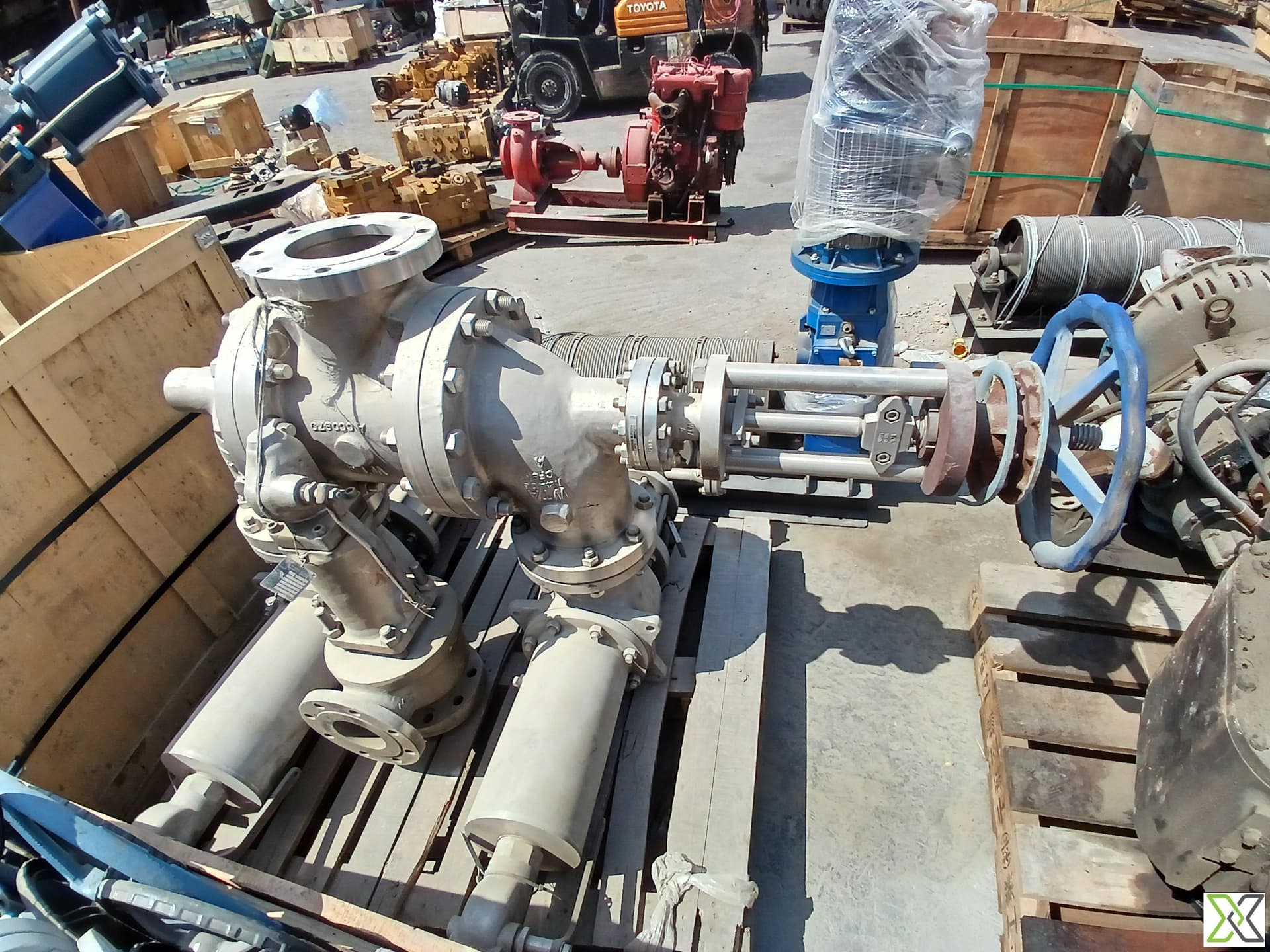

The IL.75 Duplex Basket Strainer, tagged DPSV 535 and DPSV 537, is engineered for uninterrupted filtration in critical process lines. Manufactured by Exion Asia Pte Ltd, with strainer bodies supplied by Vira, this duplex assembly features dual stainless steel mesh baskets for redundancy and manual lever-operated changeover for continuous operation. Designed to ASME B31.3 or EN 13445 standards, the strainer system suits pipelines with DN150 bore, 150 psi (PN150) pressure rating, and flanged connections per ANSI B16.5. Ideal for industrial applications requiring frequent basket maintenance without system shutdown, it ensures high reliability and minimal downtime.

Specifications:

– Equipment Type: Duplex Basket Strainer
– Tag Numbers: DPSV 535 / DPSV 537

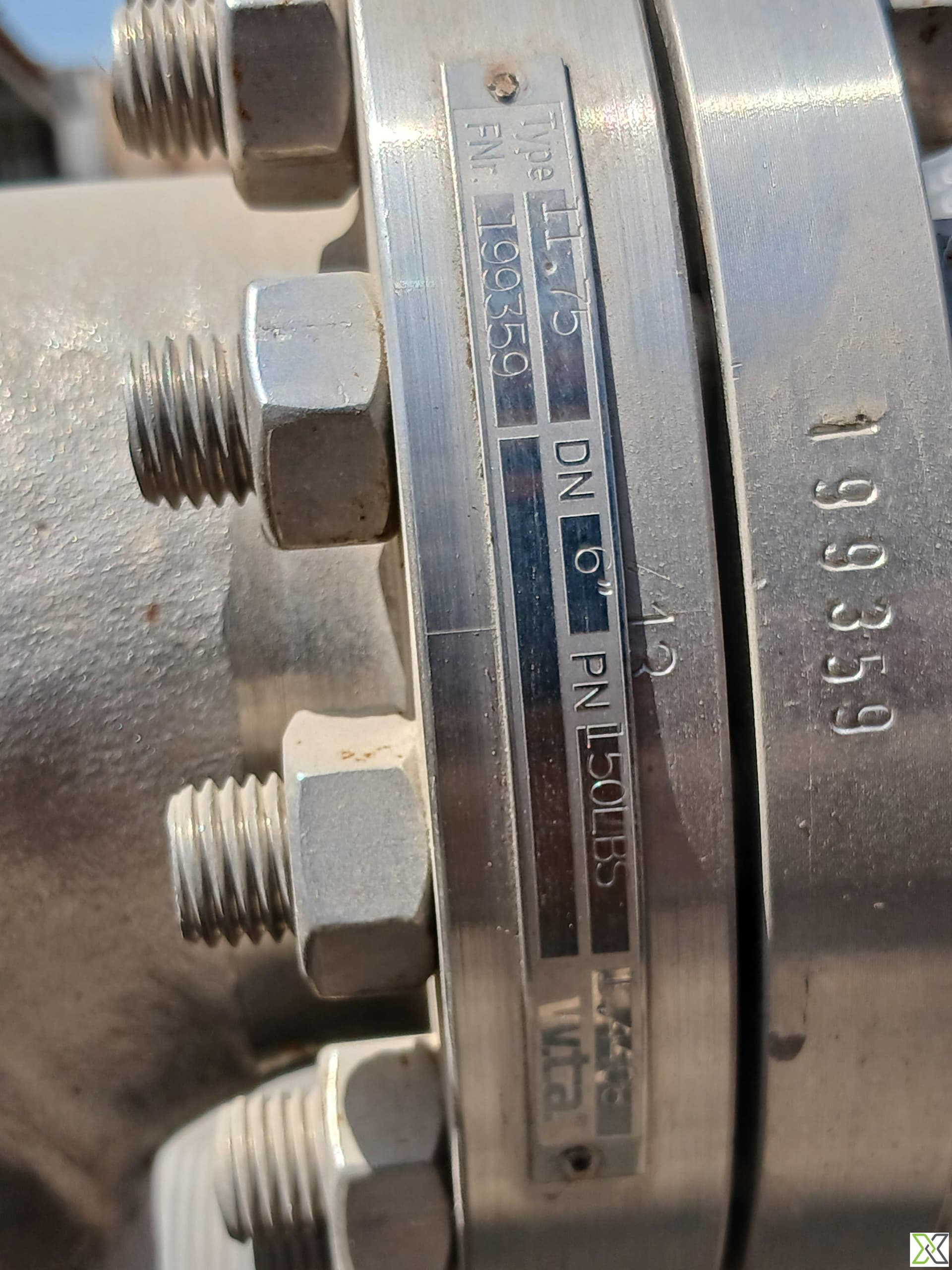

– Model/Type: IL.75

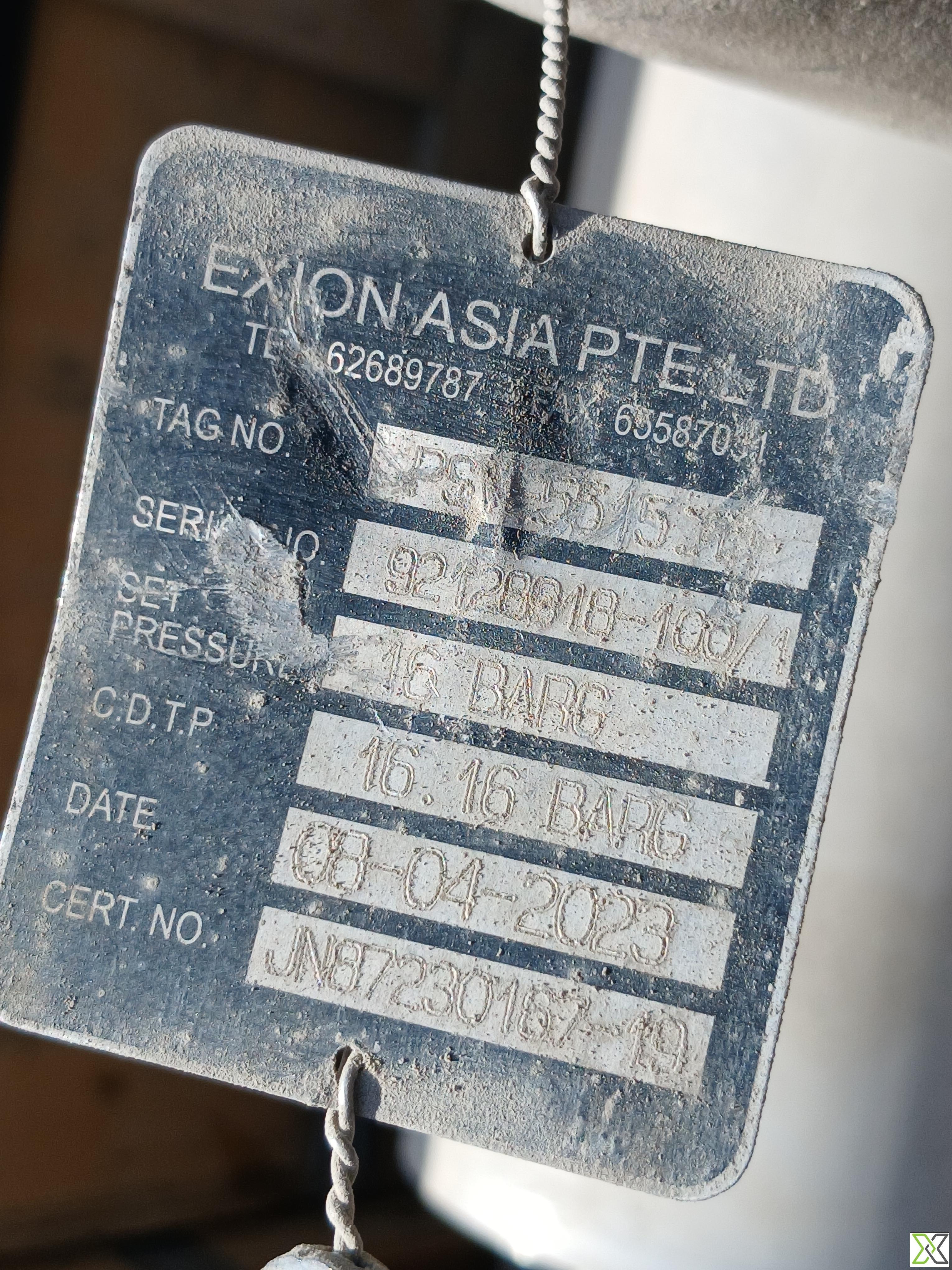

– Manufacturer (Housing): Exion Asia Pte Ltd
– Strainer Body Supplier: Vira
– Serial Numbers: Strainer No. 199359, System No. 8228018-1097
– Date of Manufacture/Test: 08-April-2023
– Certification No.: JN87230167-19
– Certification Type: Presumed PED or ASME
– Nominal Size: DN150 (6” NB)
– Pressure Rating: PN150 / Class 150 (150 psi)
– Design Pressure: 16 bar g (1.6 MPa)
– Cold Differential Test Pressure (CDTP): 16.16 bar g
– End Connections: Flanged per ANSI B16.5 Class 150
– Design Standards: ASME B31.3 / EN 13445
– Body Material: Carbon Steel or Cast Iron (verify per spec sheet)
– Basket Elements: Dual Stainless Steel Mesh
– Strainer Type: Duplex (one side operational, one under service)
– Mesh Size: Typically 40–60 mesh
– Basket Changeover: Manual lever-operated diverter valve
– Flow Direction: Horizontal Inlet/Outlet
– Vent/Drain Ports: Threaded plugs (standard)

For further specifications or to inquire about this equipment and ReflowX's logistics services, please contact ReflowX at info@reflowx.com.
