- QZ Skid Mounted Loading System (Oil & Chemical Transfer System)
Description
Product Description

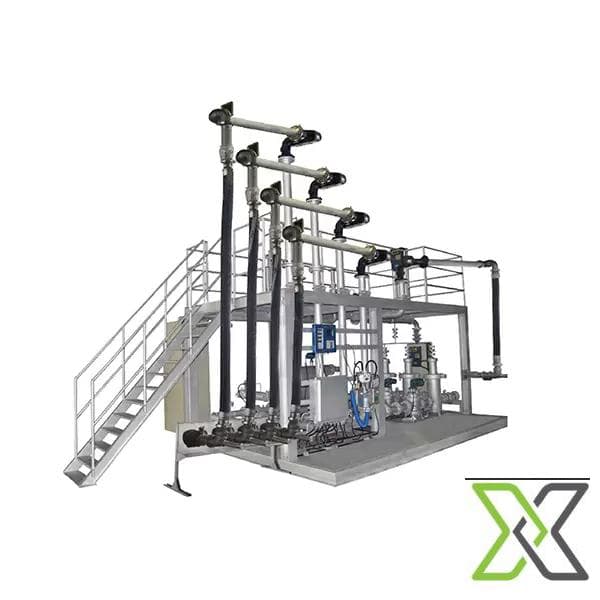

The QZ Series Skid Mounted Loading System is an integrated solution designed for loading, unloading, and metering operations in oil depots, docks, and chemical facilities. The system is pre-assembled and tested, allowing rapid deployment on site with minimal installation requirements, requiring only connection to pipelines, power, and communication systems.
The system integrates multiple components including pumps, flow meters, temperature and pressure transmitters, loading arms, control valves, controllers, and safety systems. It supports automated control, custody transfer functions, and data communication through network systems.
The design incorporates safety features such as anti-static overflow protection, emergency shutdown systems, safety valves, and grounding systems. Additional components such as oil gas recovery systems and explosion-proof display units are included to enhance operational safety and environmental performance.
The skid-mounted configuration enables compact installation, reduced field work, and simplified maintenance. The system is designed to support various loading applications including truck, railway, and marine transfer operations, with flexibility for customization based on site requirements.
Specifications
General System
| Parameter | Details |
|---|---|
| Product Type | Skid Mounted Loading System |
| Model | QZ |
| Function | Loading, Unloading, Metering, Custody Transfer |
| Control Mode | Manual / Automatic |
| Communication | RS485-MODBUS |
| Display | LCD Instrument / LED Screen |
| Power Supply | AC 220V |
| Explosion Rating | Exd II BT4 |
| Protection Rating | IP65 |
| Operating Temperature | -20°C to +60°C |
| System Power | <200 W |
| Alarm Response Time | <2 ms |
| System MTBF | 20,000 hours |
| Data Storage | 200 dispatch records |
| Input Method | Touch Screen |
| IC Card Function | Optional |
| Power Failure Protection | Available |
Oil Truck Loading Data
| Parameter | Details |
|---|---|
| Dispatching Efficiency | 120 m³/h |
Railway Loading Data
| Parameter | Details |
|---|---|
| Power Supply | AC 220V / AC 380V |
| Flow Accuracy | ±0.25% |
| Temperature Accuracy | ±0.50°C |
| Batch Setting Range | 1 – 999999 |
| Density Setting Range | 0.0001 – 2.0000 |
| Flow Coefficient Range | 0.1000 – 99999 |
| Temperature Setting Range | 1.0000 – 99999°C |
| Communication Distance | Up to 1.2 km (RS485-MODBUS) |
| Baud Rate | 2400 / 4800 / 9600 / 19200 |
| Ambient Temperature | -40°C to +65°C |
| Humidity | ≤95% |
| Explosion Rating | Exd II BT4 |
If you require any further information on this listing please contact info@reflowx.com
