- Tri-Phase Metering System (Oil, Gas & Water Measurement System)
Description
Product Description

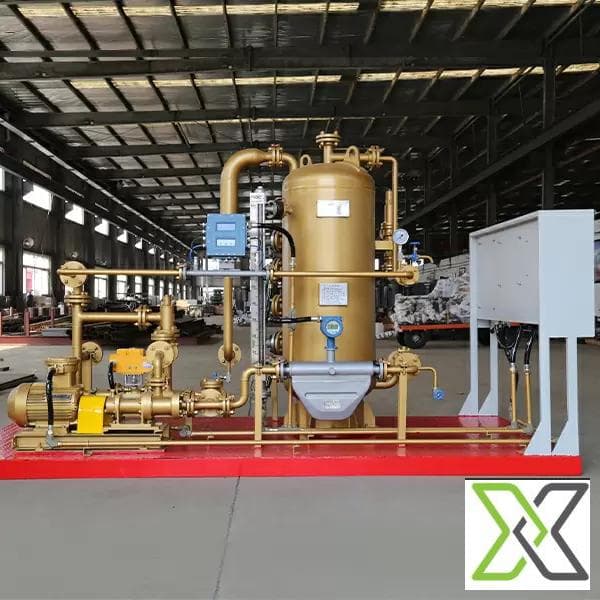

The Tri-Phase Metering System is designed for accurate measurement of oil, water, and gas components within a three-phase flow commonly encountered in petroleum production. The system enables real-time monitoring of individual phase flow rates and composition, supporting improved field production management and measurement accuracy across single wells, multiple wells, and well stations.
The system operates through a gas-liquid separation process where the mixed stream is passed through a separation unit incorporating hydrocyclone separation, gas collision, and regulation mechanisms. This ensures gas-liquid separation efficiency exceeding 98%. The separated gas is measured using an ultrasonic gas flowmeter, while the liquid phase is measured using a Coriolis mass flowmeter. Water content is calculated based on density differences between oil and water.
A PLC-based control system processes measurement data and converts it into flow rates, phase percentages, pressure, and temperature readings. The system is fully automated and includes a control cabinet with TFT display for real-time monitoring. Remote communication functionality can be integrated as required.
Specifications
| Parameter | Details |
|---|---|
| Product Type | Tri-Phase Metering System |
| Measurement Capability | Oil, Water, Gas Flow and Composition |
| Measurement Principle | Gas-Liquid Separation + Coriolis & Ultrasonic Measurement |
| Liquid Flow Range | 0 – 9000 m³/d |
| Gas Flow Range | 0 – 3000 m³/d |
| Water Content Range | 0 – 100% |
| Gas Content Range | 0 – 100% |
| Liquid Viscosity | ≤ 10000 mPa·s |
| Pressure Loss | ≤ 0.1 MPa |
| Medium Temperature | 0 to 120°C |
| Working Pressure | ≤ 4.0 MPa |
| Ambient Temperature | -20°C to +60°C |
| Liquid Measurement Accuracy | ≤ ±2.5% |
| Gas Measurement Accuracy | ≤ ±2% |
| Water Ratio Accuracy | ≤ ±5% |
| Separation Efficiency | >98% |
| Control System | PLC-Based Automation |
| Display | TFT Display |
| Data Output | Flow rates, phase percentages, pressure, temperature |
| Data Functions | Instantaneous & Total Flow, System Status, Logging |
| Remote Monitoring | Available (optional) |
