KROHNE (CRK Chengde) Electromagnetic Flowmeter - Size/Rating: 2” 150lb

ReflowX SKU: REF-6219

Product Details

Quantity

2
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

KROHNE (CRK Chengde)
Equipment code

CFIHOS-30000429

Get Quotation Whatsapp Chat With Seller

Share on Facebook

Share on Twitter

Share on LinkedIn

Short Description

Product Information Manufacturer: KROHNE (CRK Chengde) Model: VFM4070C7 1AA112101012 Type: Electromagnetic Flowmeter Material: 316L / FPM Size/Rating: 2” 150lb

Description

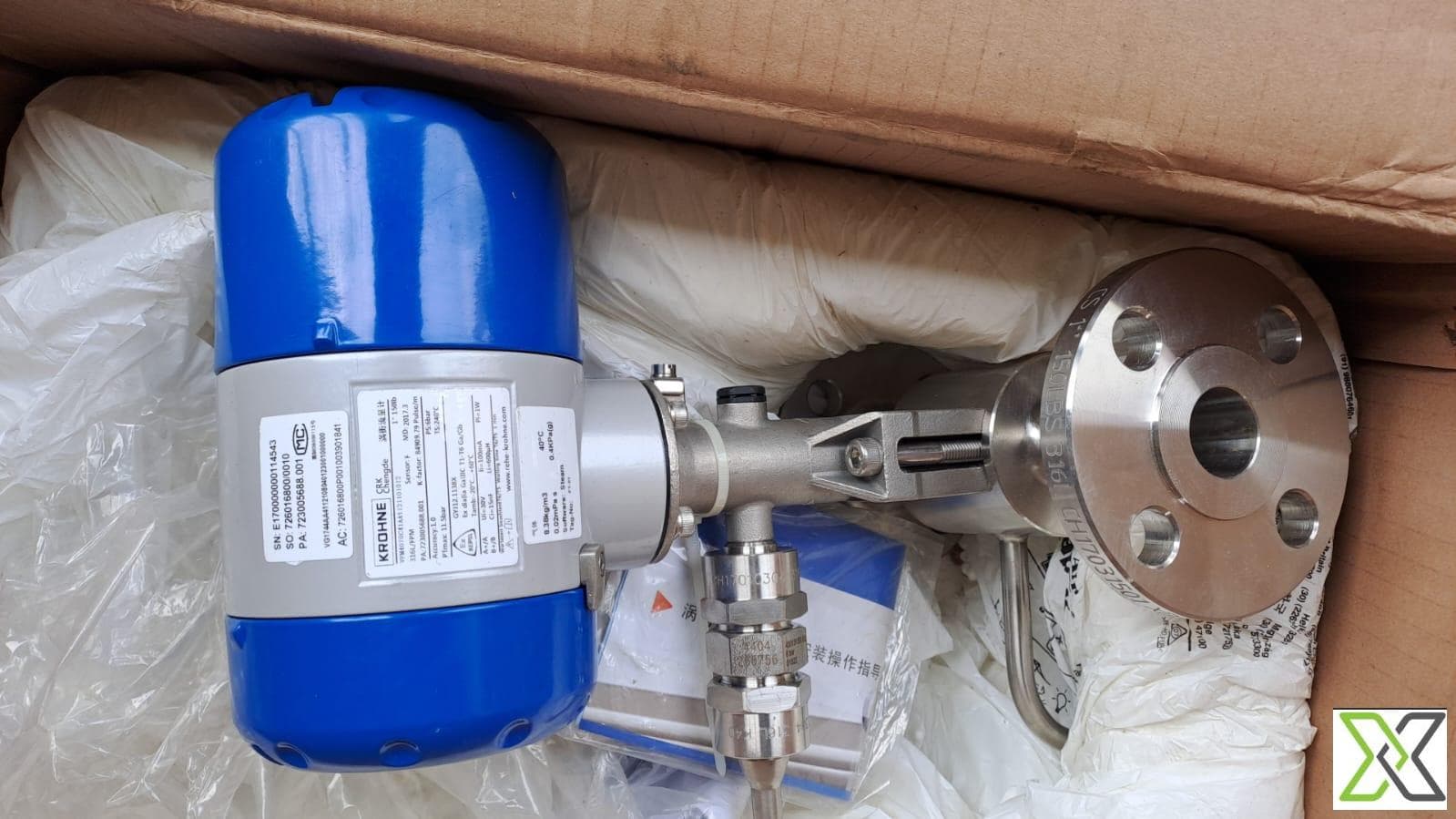

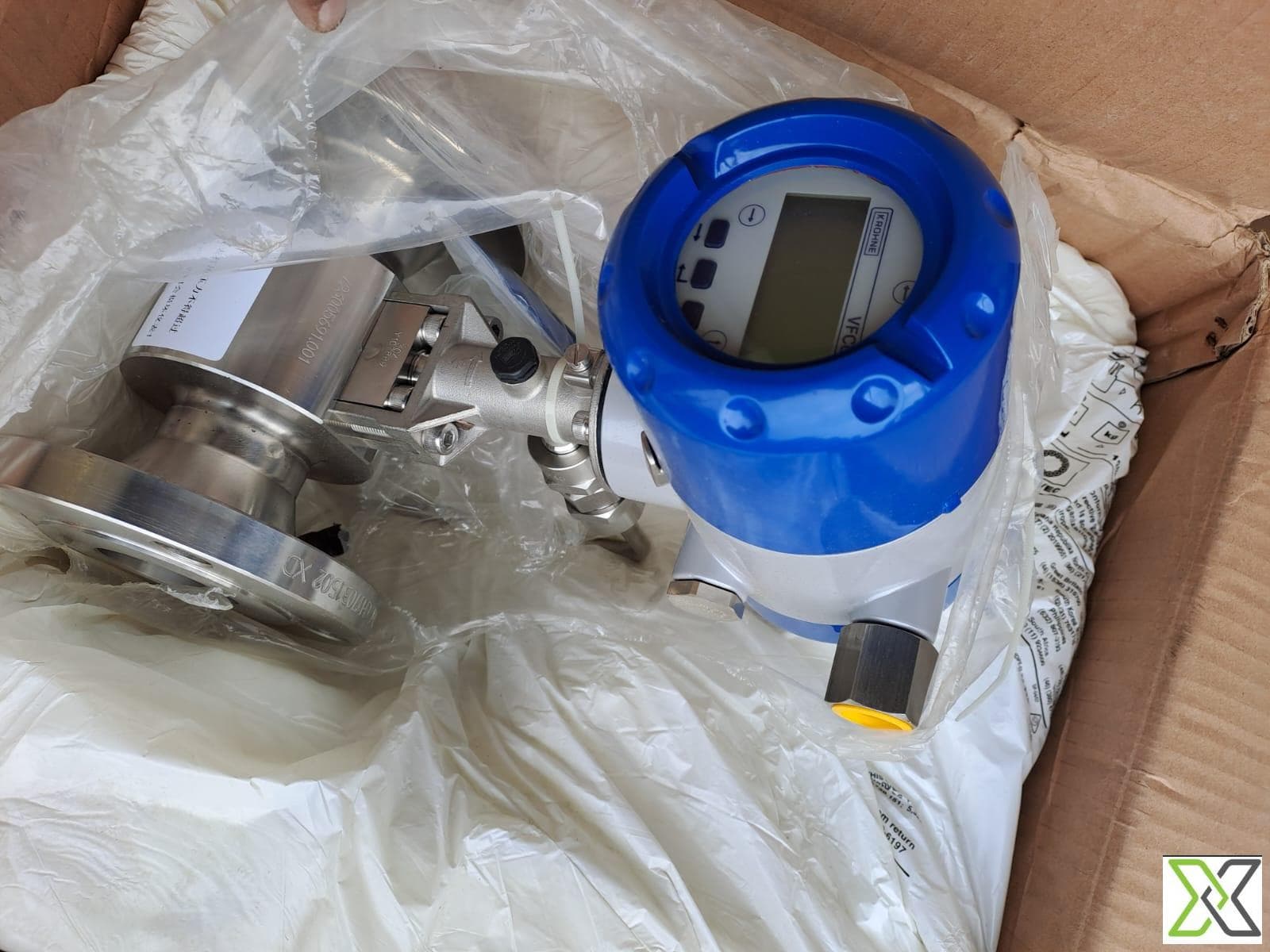

ELECTROMAGNETIC FLOWMETER – KROHNE VFM4070C7

PRODUCT OVERVIEW

Manufacturer: KROHNE (CRK Chengde)
Model: VFM4070C7 1AA112101012
Type: Electromagnetic Flowmeter
Design Standard: IEC / EN compliant
Flow Measurement Principle: Faraday’s Law of Electromagnetic Induction

TECHNICAL SPECIFICATIONS

Line Size: 2” (DN50)
Pressure Rating: 150 lb ANSI
Electrode Material: 316L Stainless Steel
Lining Material: FPM (Fluoroelastomer – Viton)
Connection Type: Flanged, ANSI Class 150
Flow Accuracy: ±0.3% of reading ±1 mm/s
Repeatability: ±0.1%
Flow Range: Configurable based on pipe diameter and fluid velocity
Minimum Conductivity: ≥ 5 µS/cm

ELECTRICAL & ELECTRONICS

Power Supply: 85–265 VAC / 24 VDC
Output Signals:

4–20 mA (active or passive)

Pulse / Frequency output

HART / Modbus / PROFIBUS (optional communication modules)

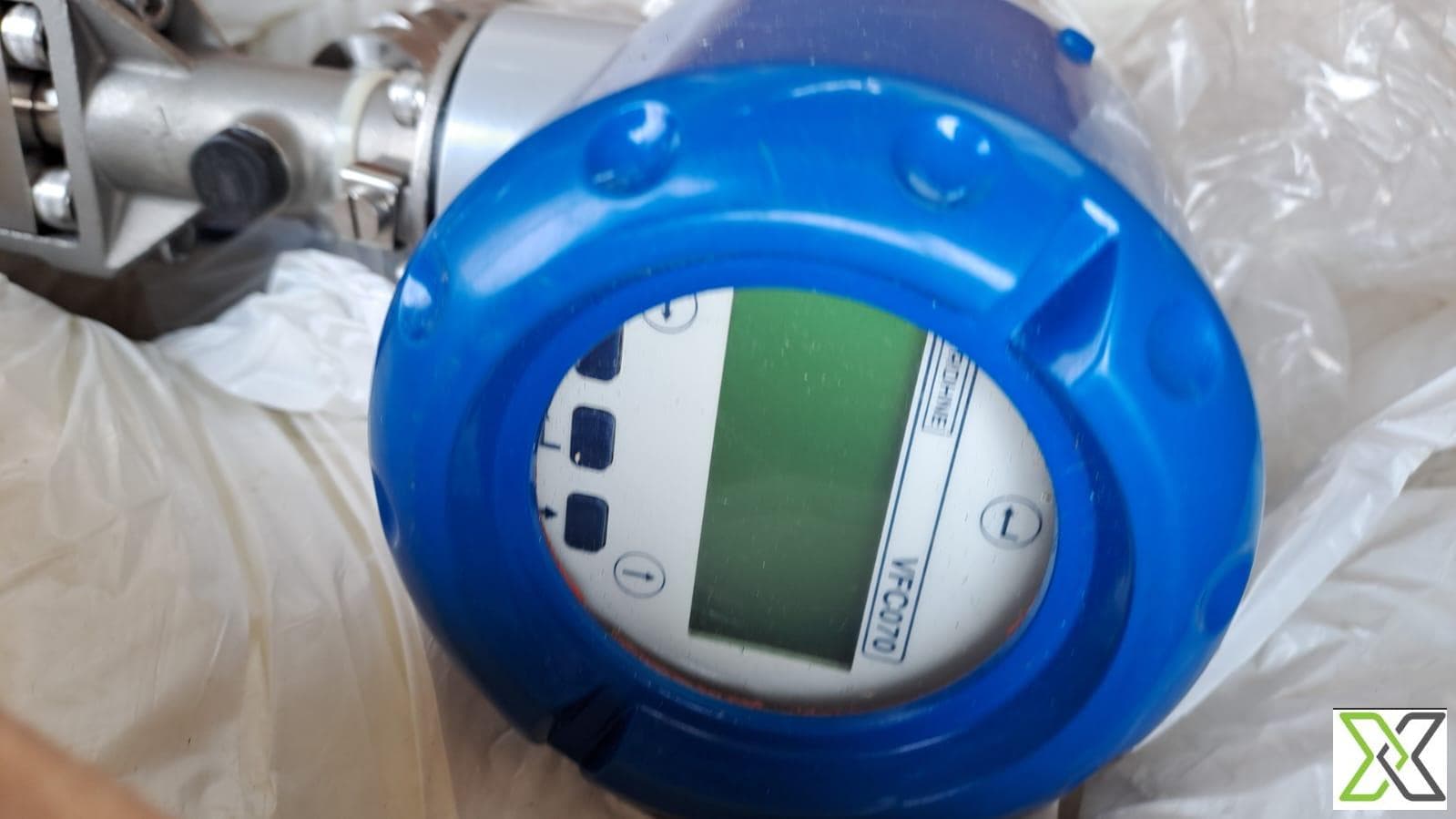

Display Unit:

2-line backlit LCD

Keypad interface for configuration

Displays: Flowrate, Totalizer, Diagnostics

Protection Class:

IP67 (Field version)

NEMA 4X equivalent

Ambient Temperature Range: -20°C to +60°C
Process Temperature Range: Up to +120°C (depending on liner)

MECHANICAL DATA

Body Material: Carbon Steel (painted / coated)
Measuring Tube Material: 316L Stainless Steel
Electrode Material: 316L SS
Gasket Material: FPM (Viton)
Flange Material: Carbon Steel
Mounting Orientation: Horizontal or Vertical (flow must fill pipe)
Installation Length: Compliant with ISO 13359 / EN 1092

ADDITIONAL INFORMATION

Enclosure Type: Compact, integral transmitter
Self-Diagnostics: Yes – with fault and alarm logs
Cable Glands: M20 x 1.5 / ½” NPT
Explosion Proof Options: Available upon request
Grounding Rings: Included or optional, based on process

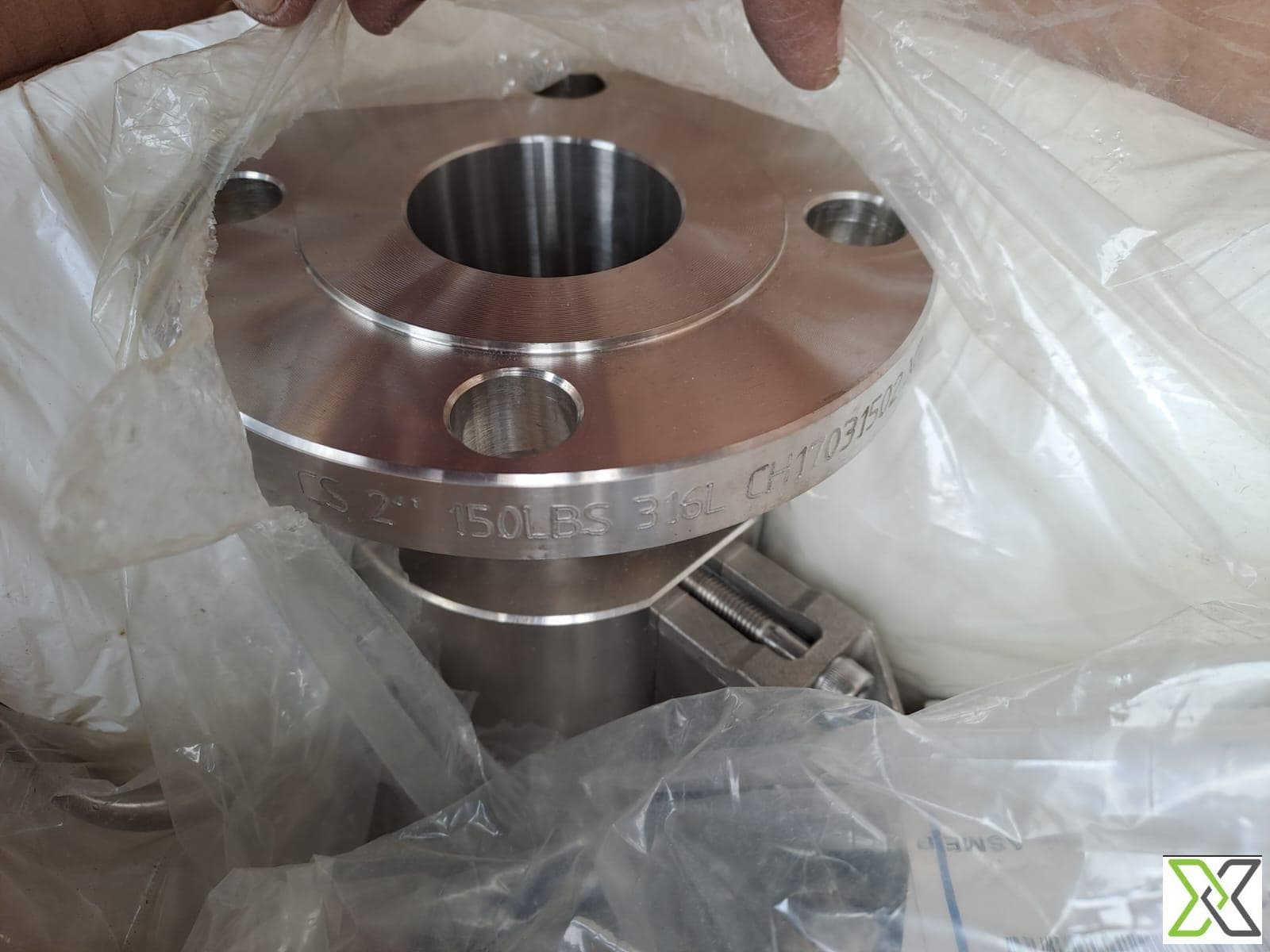

Flange Information (Second Image)

Material: Stainless Steel 316L
Size/Rating: 2” 150LBS
Marking: "CS 2'' 150LBS 316L CH1703F502"

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Height	Approximately 250–300 mm
Width	Approximately 200–250 mm
Length	Approximately 200 mm
Weight	Approximately 10–15 kg
Color	Blue
ISO 15926 Pt 4	4411
PCA RDS Code	RDS880109
CFIHOS ID	CFIHOS-30000429
Design Specification	Electromagnetic induction
Nominal Diameter	2 inches (DN50)
Normal Operating Pressure	ASME Class 150 standards
Piping Class	ASME B16.5 Class 150
