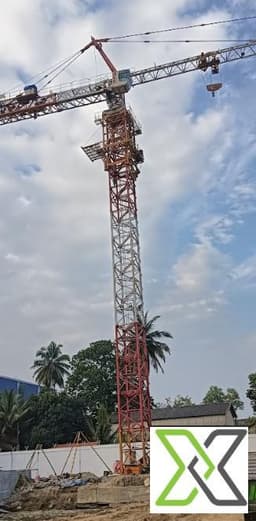

ACE 7052 Tower Crane – 12 Ton Capacity, 70m Jib - 2017

The ACE 7052 is a versatile tower crane engineered for medium to large-scale construction projects requiring strength, reach, and flexible installation options. Built in 2017, this model delivers a maximum lifting capacity of 12 metric tons (12,000 kg) and a maximum jib length of up to 70 meters, offering a tip load capacity of approximately 5.2 tons at full radius.

The crane supports multiple configurations including stationary mounting, internal climbing within the structure, or external climbing for vertical extension. Its hoisting mechanism features a high-performance winch equipped with frequency control for precision lifting. The slewing system enables smooth 360° continuous rotation, and the trolley system operates on an electric drive with frequency variation, ensuring efficient and smooth load positioning.

The operator cabin is fully enclosed, offering joystick controls, ergonomic seating, and safety-focused visibility. The system is controlled via a PLC-based automation unit with integrated safety interlocks. The power supply supports 3-phase operation between 400–480V at either 50 or 60Hz, allowing compatibility with various international site standards.

Specifications:

– Model: ACE 7052
– Year of Manufacture: 2017
– Crane Type: Tower Crane
– Maximum Lifting Capacity: 12 MT (12,000 kg)
– Jib Length: Up to 70 meters
– Tip Load Capacity: Approx. 5.2 tons at full radius
– Tower Height: Configurable (typical free-standing height ~50–60 meters)
– Crane Configuration: Stationary / Internal Climbing / External Climbing
– Hoisting: High-performance winch with frequency control
– Slewing: 360° continuous rotation with smooth slewing drive
– Trolley: Electric movement with frequency variation
– Operator Cabin: Enclosed, ergonomic with joystick control
– Control System: PLC-based with safety interlocks
– Power Supply: 3-Phase, 400–480V, 50/60Hz

Safety Features
– Load Moment Limiter
– Overload Protection
– Emergency Stop System
– Optional Anti-Collision System

– Application: High-rise construction, infrastructure projects, and heavy material lifting

For further specifications or to inquire about this equipment and ReflowX's logistics services, please contact ReflowX at info@reflowx.com.
