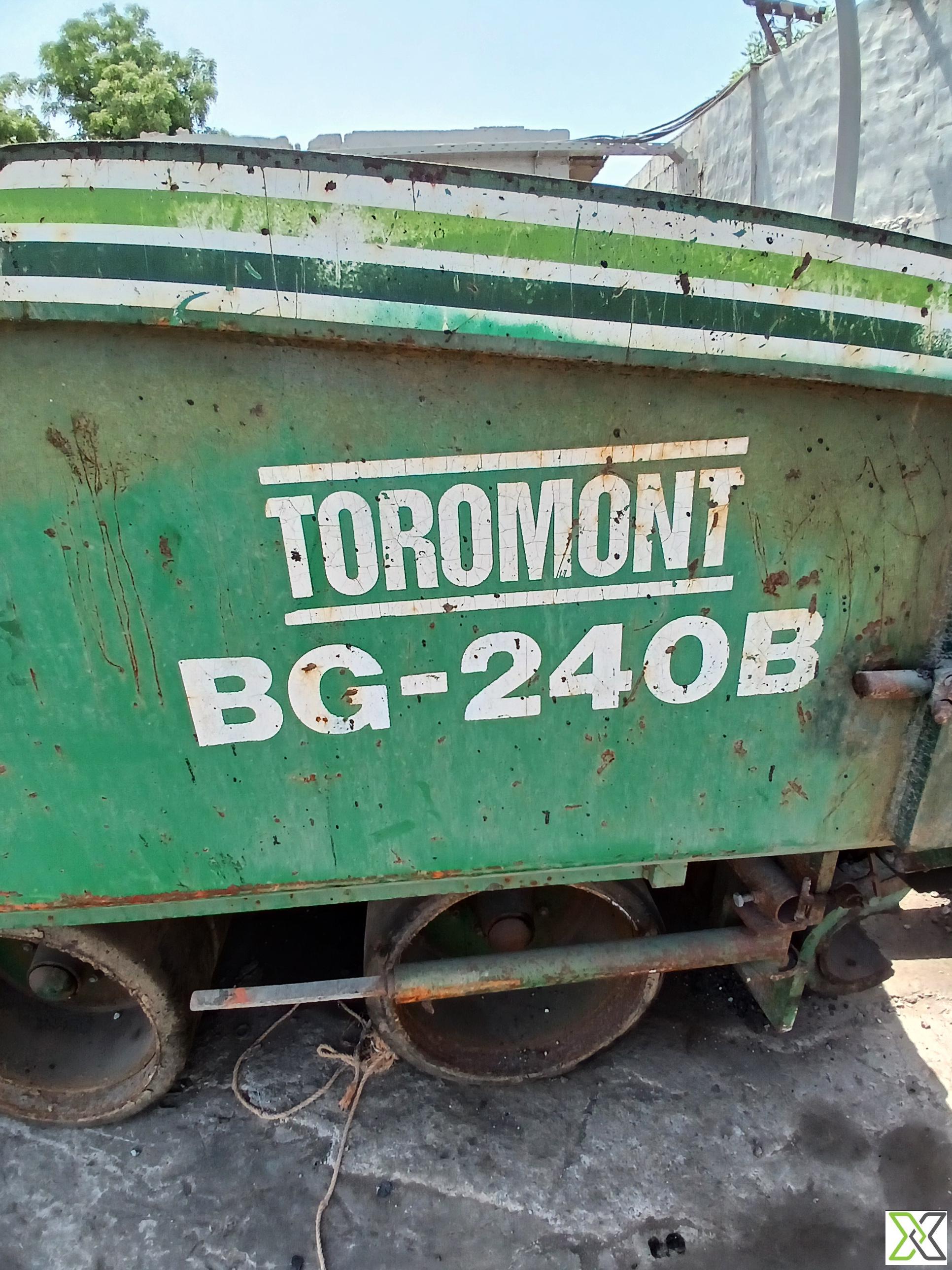

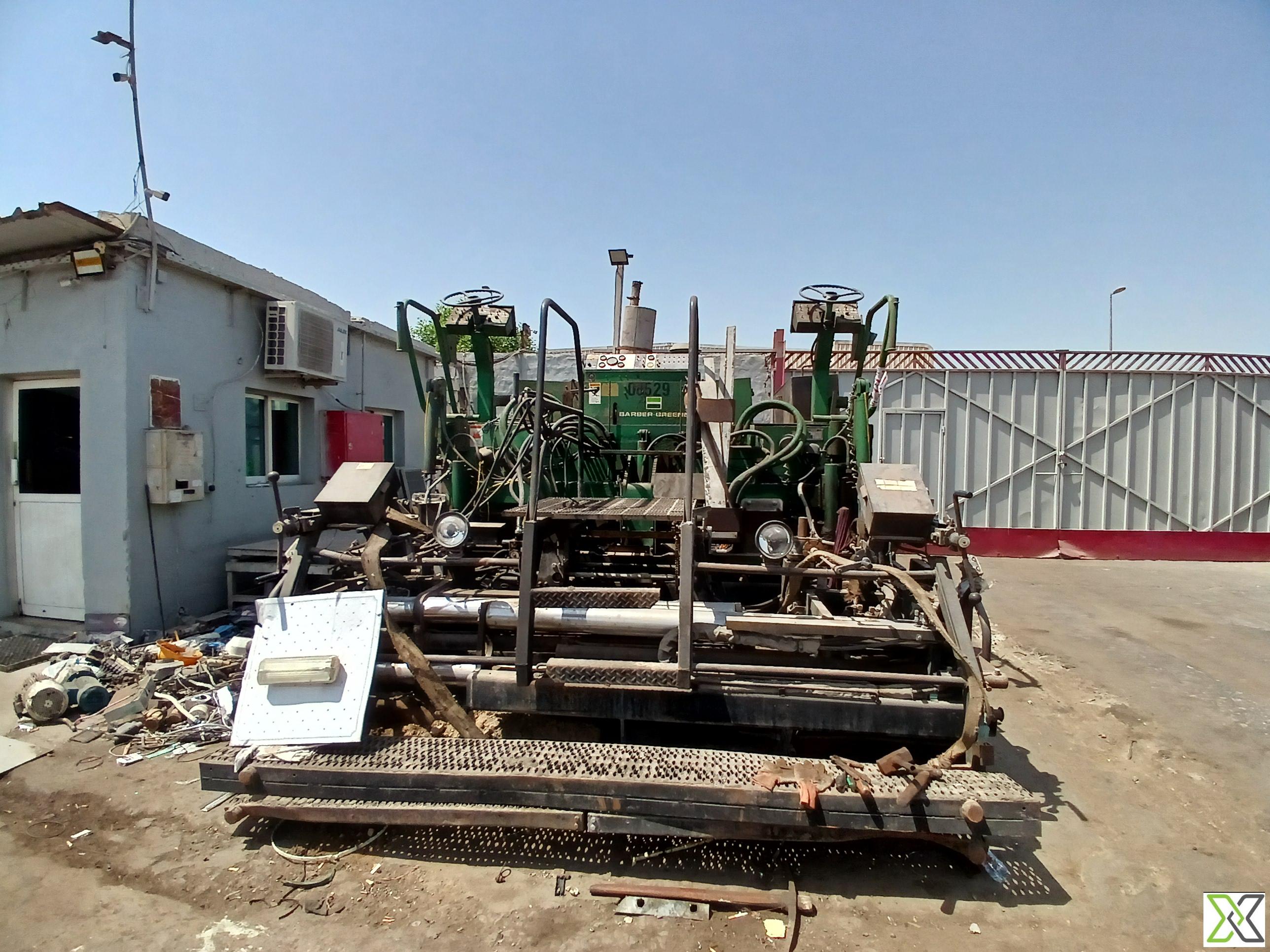

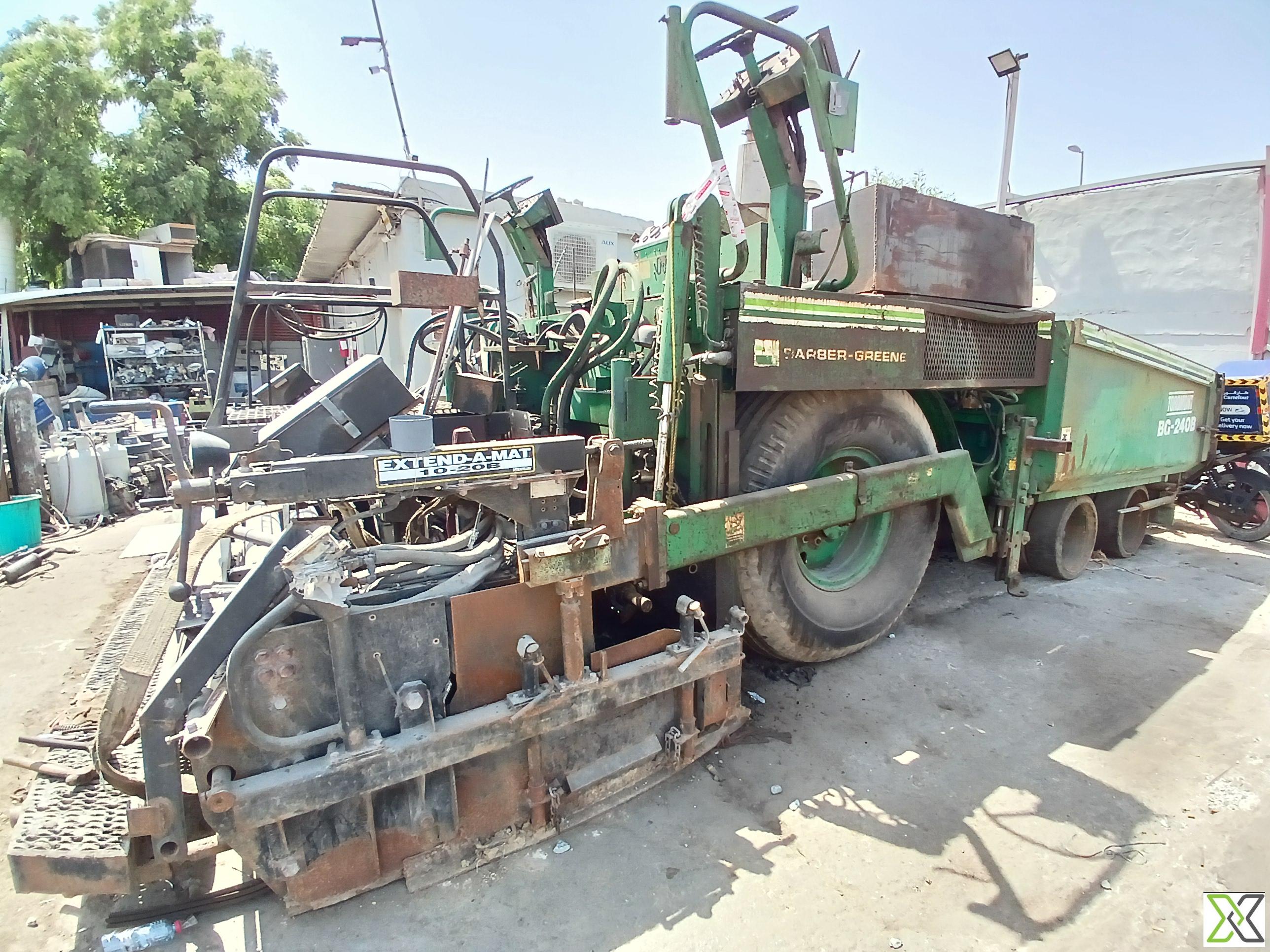

Barber-Greene BG 240 B Asphalt Paver Machine with Extend-A-Mat

The Barber-Greene BG 240 B Asphalt Paver, manufactured by B.G. Pavers Ltd. (a Caterpillar company), is designed for optimal paving performance across a wide range of construction environments. Equipped with a Caterpillar Extend-A-Mat 10-20B screed, this unit supports variable paving widths up to 5.9 meters and paving thicknesses up to 300 mm. The unit integrates a powerful diesel engine (estimated 120–140 HP) and a dual conveyor material feed system for uniform mix delivery. With a hydrostatic drive system and dual operator controls, the paver ensures smooth operation, precise control, and consistent mat quality. The rugged steel chassis and durable undercarriage provide enhanced stability and longevity.

Specifications:

– Equipment Type: Asphalt Paver Machine
– Brand: Barber-Greene (Caterpillar)
– Model: BG 240 B

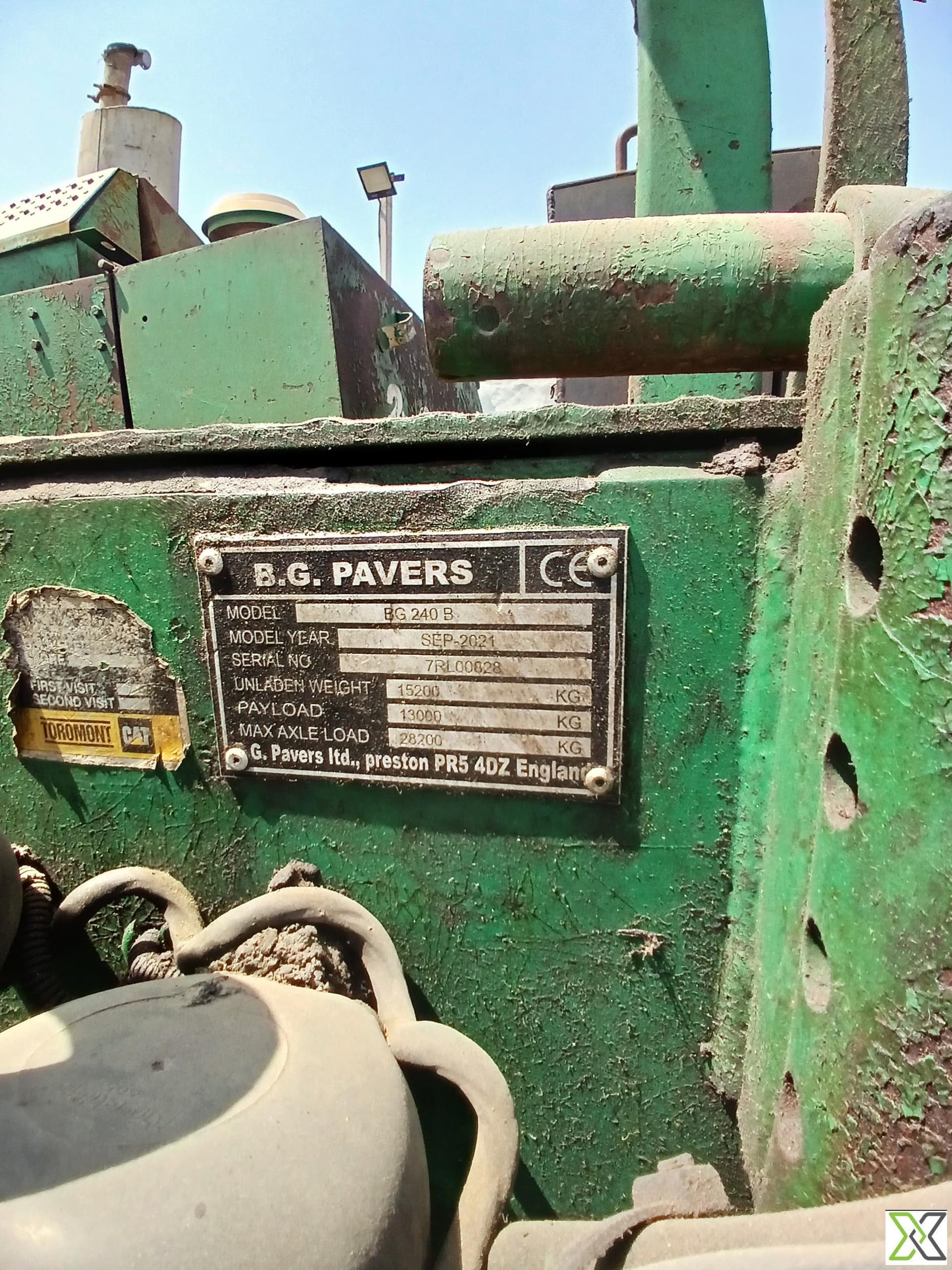

– Serial Number: 7RL00628
– Model Year: September 2001
– Manufacturer: B.G. Pavers Ltd., Preston, England

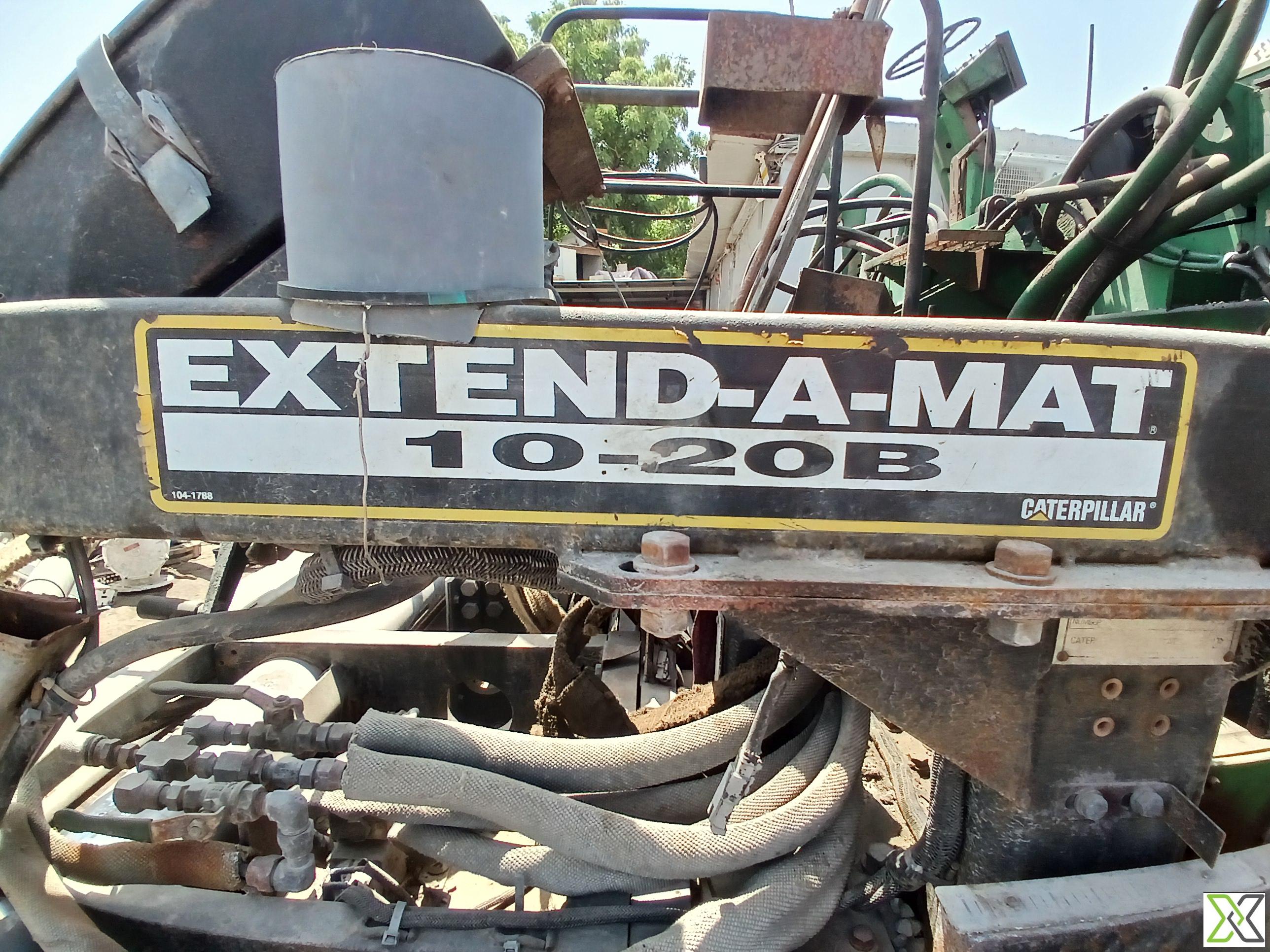

– Screed Attachment: Caterpillar Extend-A-Mat 10-20B
– Screed Width (Basic): 2.5 m
– Screed Width (Extended): Up to 5.9 m
– Paving Thickness: Up to 300 mm (adjustable)
– Paving Speed: 0–20 m/min
– Travel Speed: Up to 14 km/h
– Unladen Weight: 15,200 kg
– Payload Capacity: 13,000 kg
– Maximum Axle Load: 28,200 kg
– Overall Length: Approx. 6,200 mm (subject to screed extension)
– Overall Width: Approx. 2,600 mm (transport mode)
– Overall Height: Approx. 3,200 mm
– Engine Power (Estimated): 120–140 HP
– Fuel Type: Diesel
– Material Feed System: Dual conveyor with independent augers
– Chassis Construction: Heavy-duty steel frame
– Undercarriage: Rubber tire or track-mounted (varies by config)
– Control System: Dual operator station with manual & electronic controls
– Drive System: Closed-loop hydrostatic system
– Screed Heating System: LPG standard, electric optional

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
