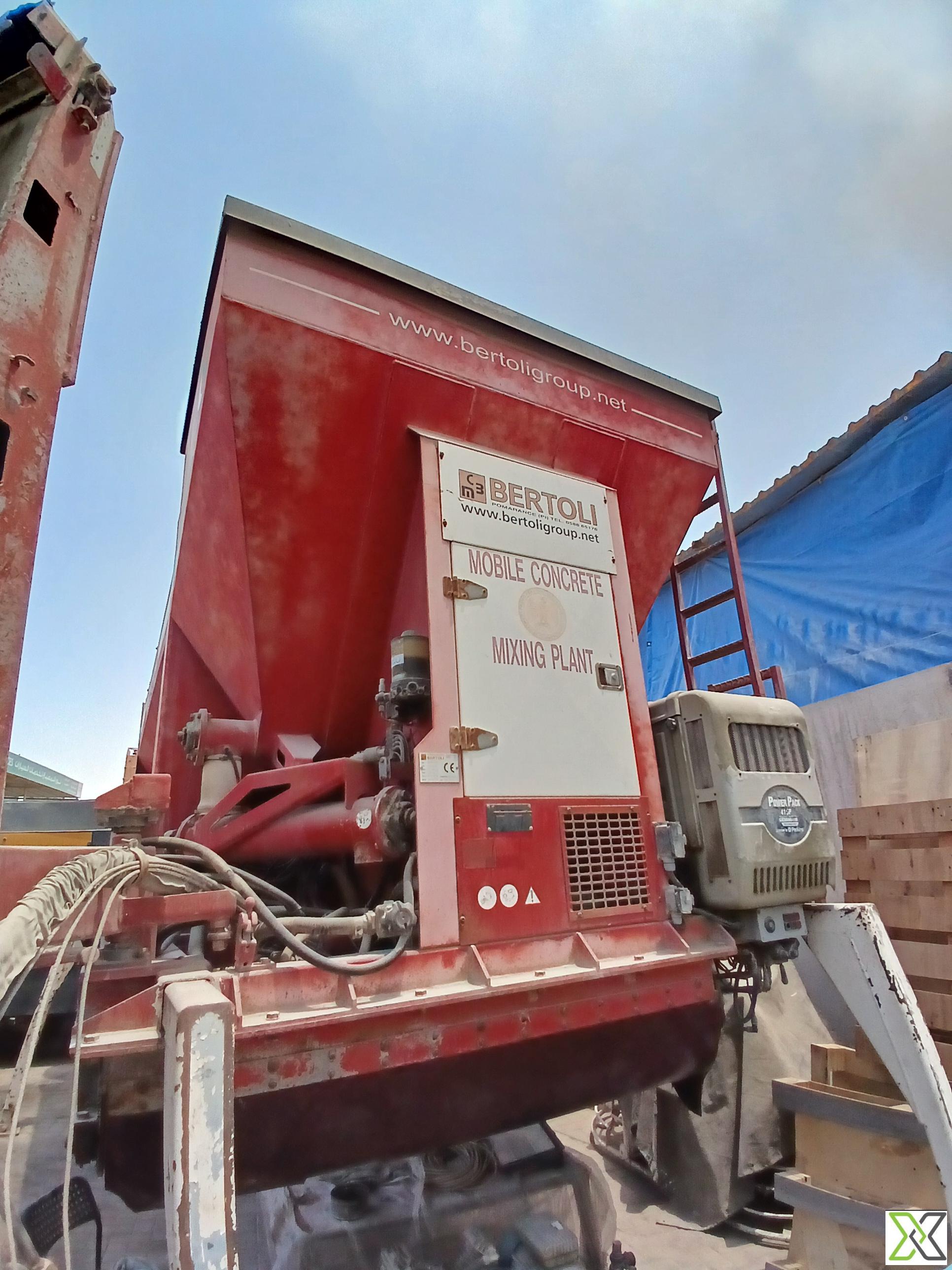

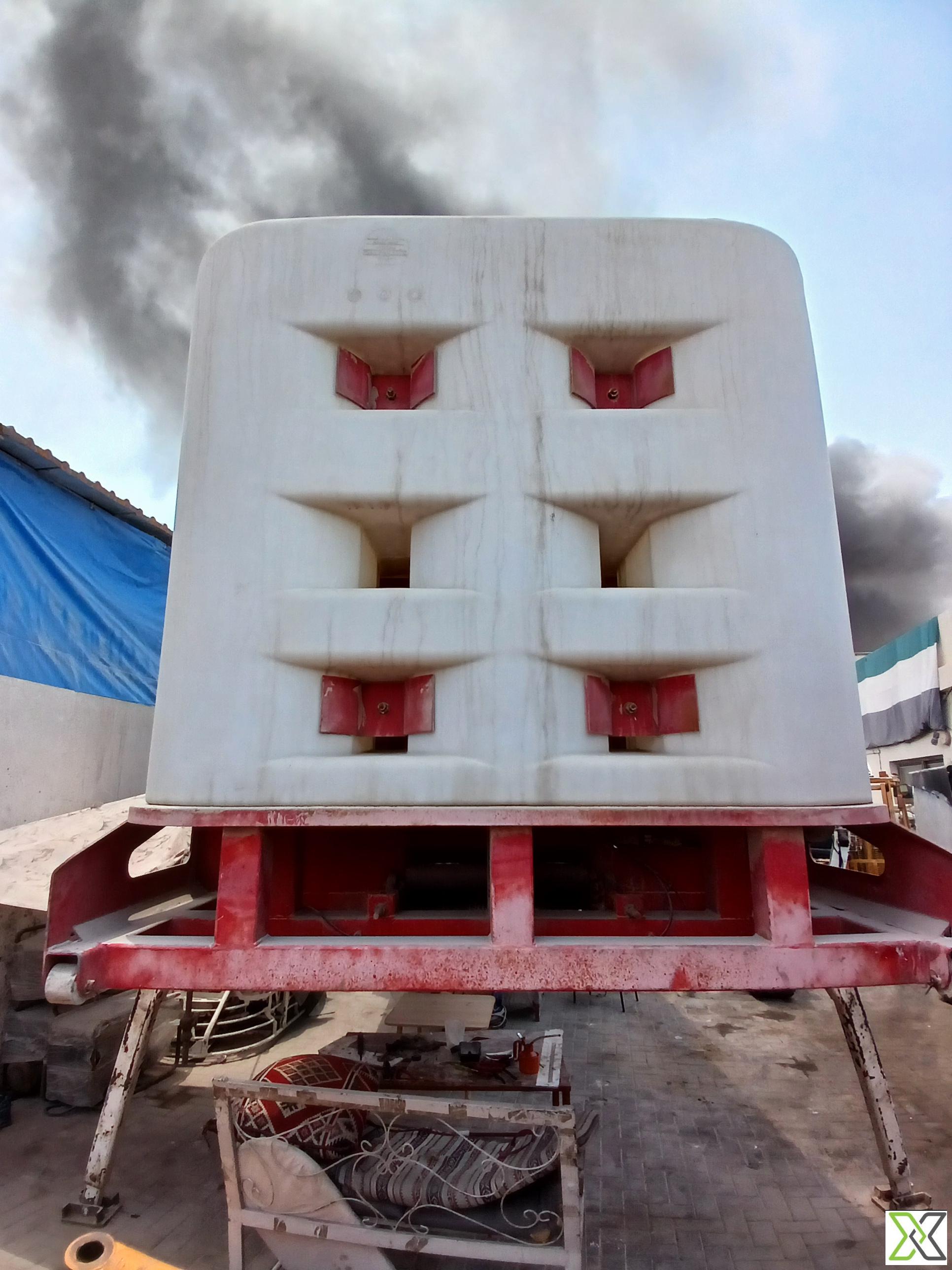

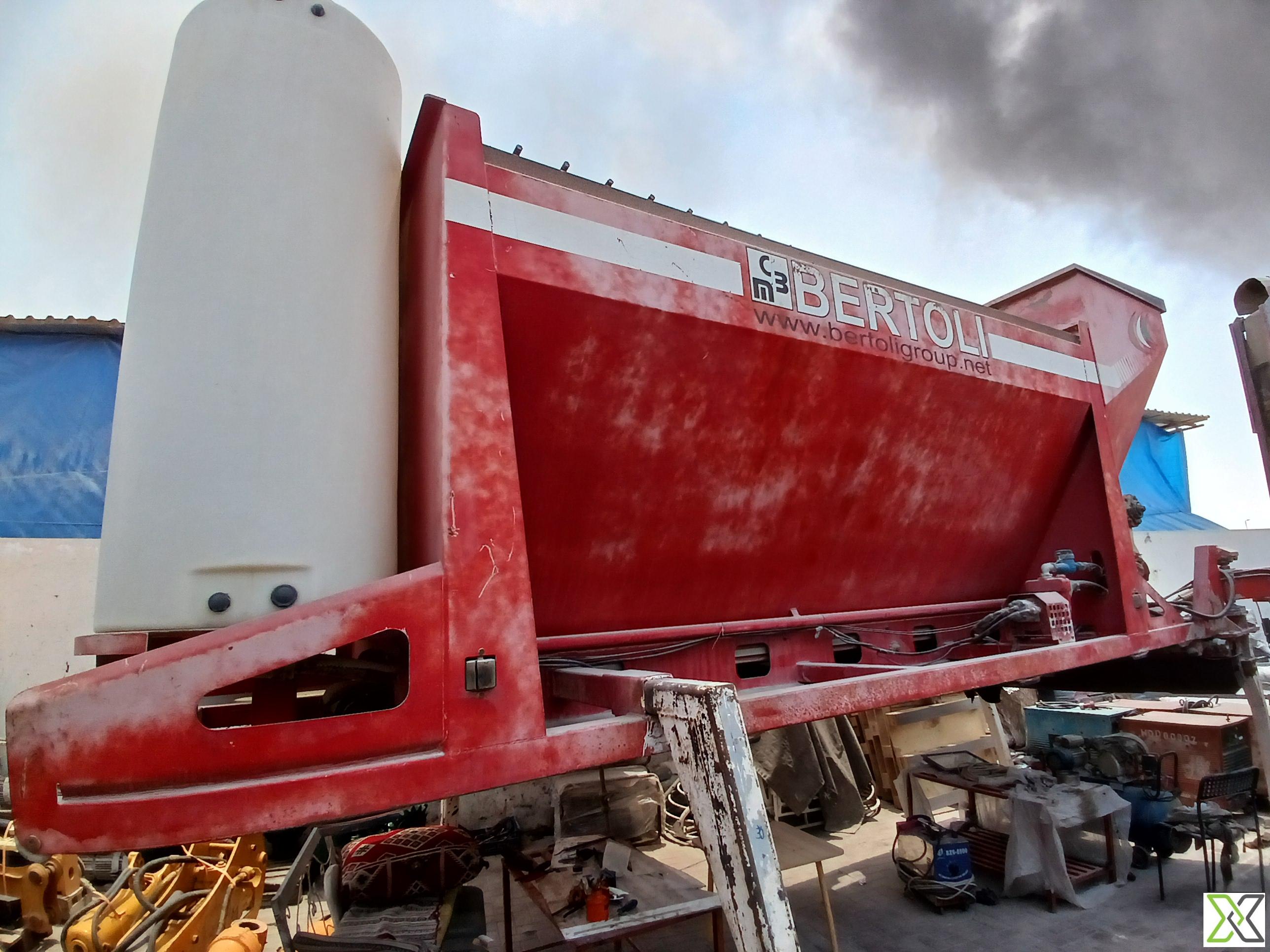

ECOMIX 40 Mobile Concrete Mixing Unit – 36 HP, 40 m³/h Capacity

ReflowX SKU: REF-7782

Product Details

Quantity

1
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

Surplus
OEM

ReflowX
Equipment code

Get Quotation Whatsapp

Short Description

Compact, high-performance mobile concrete mixer with 36 HP power, up to 40 m³/h capacity, and 150 bar hydraulic pressure. Skid or trailer-mounted, ideal for on-site or remote concrete production.

Description

ECOMIX 40 Mobile Concrete Mixing Unit – 36 HP, 40 m³/h Capacity

The ECOMIX 40 is a robust, mobile concrete mixing system engineered for efficient on-site concrete production in construction, civil engineering, and remote project environments. Driven by a 36 HP (≈ 26.8 kW) integrated power unit and operating on 12 VDC supply, this self-contained mixing unit delivers up to 40 m³/h of consistent output. With a maximum system pressure of 150 bar, it supports intensive, heavy-duty mixing operations with high reliability.

Its modular design allows mounting on either a skid or a trailer frame, providing exceptional portability across job sites. The mixing system can be configured with either a twin-shaft or planetary mixer depending on material requirements and job site specifications. The integrated water dosing and spraying system ensures accurate hydration for optimal mix quality, while the internal hydraulic system maintains stable performance even under prolonged operation.

Control options include manual or semi-automatic panels, tailored by production year or application preference. Designed for operation in ambient temperatures up to 40°C, this unit is a preferred choice for demanding applications in construction, mining, or infrastructure projects.

Specifications:

– Supply Voltage: 12 VDC (typically vehicle-integrated)
– Power Rating: 36 HP (≈ 26.8 kW)
– Maximum Hydraulic Pressure: 150 bar
– Mixing Capacity: Up to 40 m³/h (standard for ECOMIX 40 models)
– Mixer Type: Twin-shaft or planetary (based on configuration)
– Weight: 2,700 kg
– Temperature Limit: Max 40°C ambient operating range
– Design: Self-contained unit with integrated power pack and control systems
– Mobility: Skid-mounted or trailer-based for transport and field deployment
– Water System: Built-in dosing and spray functionality
– Control System: Manual or semi-automatic (varies by version)
– Hydraulics: Enclosed hydraulic system operating at up to 150 bar
– Power Source Environment: 12 VDC battery-based, typically used with vehicle power

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

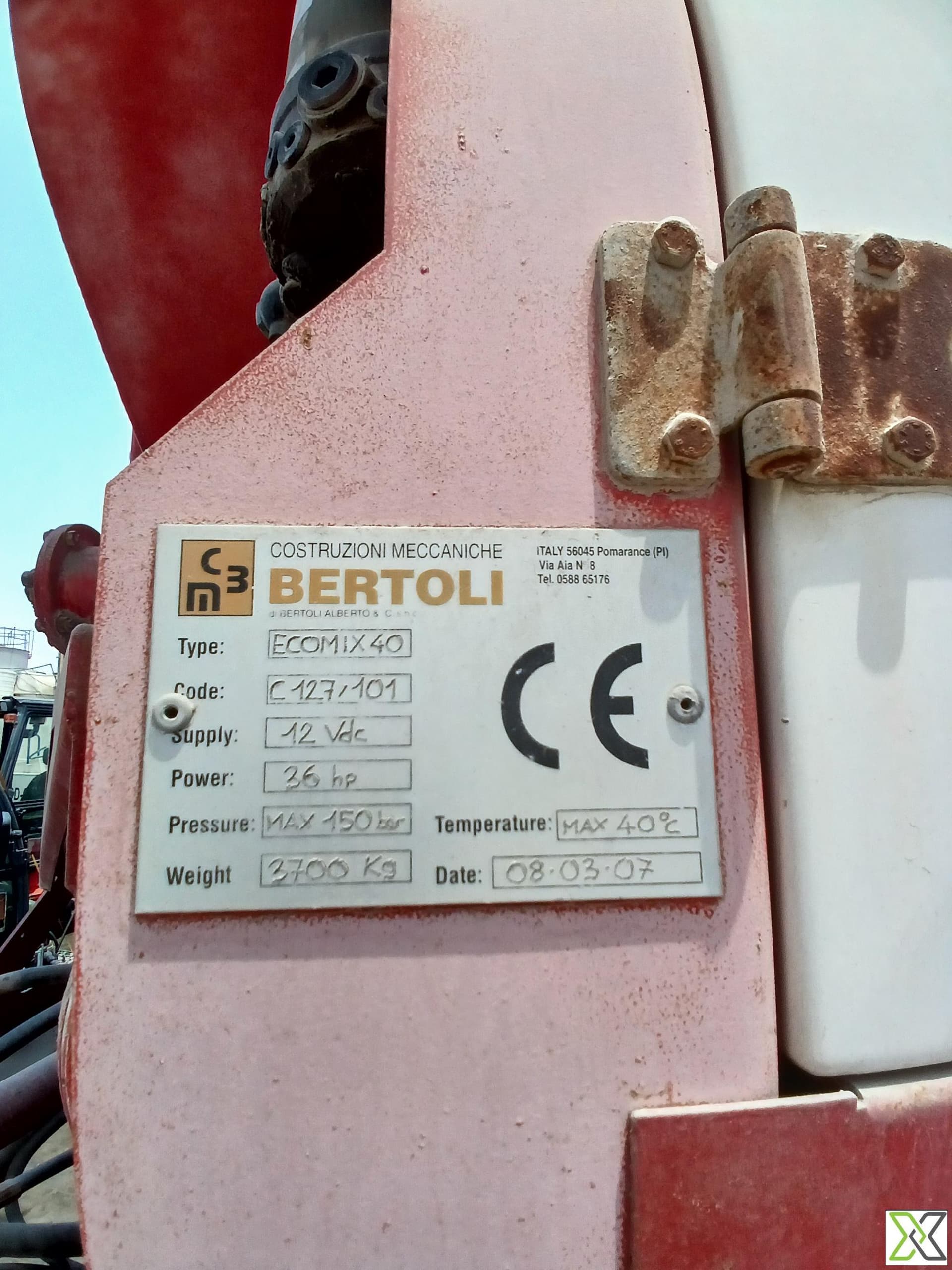

Technical Details

Model Number	ECOMIX 40
Year of Manufacturing	2007
Manufacturer Name	Bertoli S.r.l.
Height	2,800 mm
Width	2,300 mm
Length	6,500 mm
Weight	2,700 kg
Color	Red
Fuel type	Diesel
