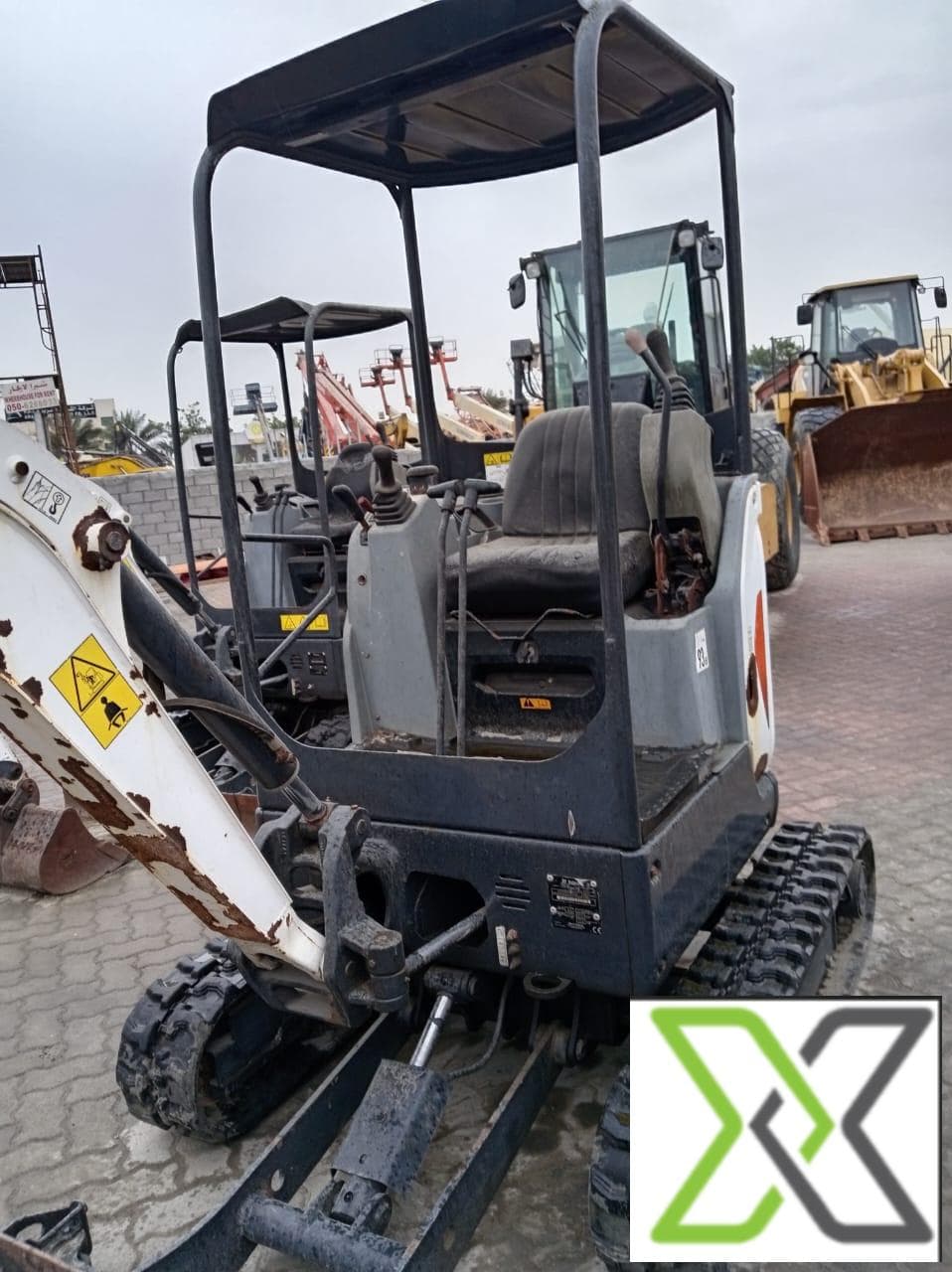

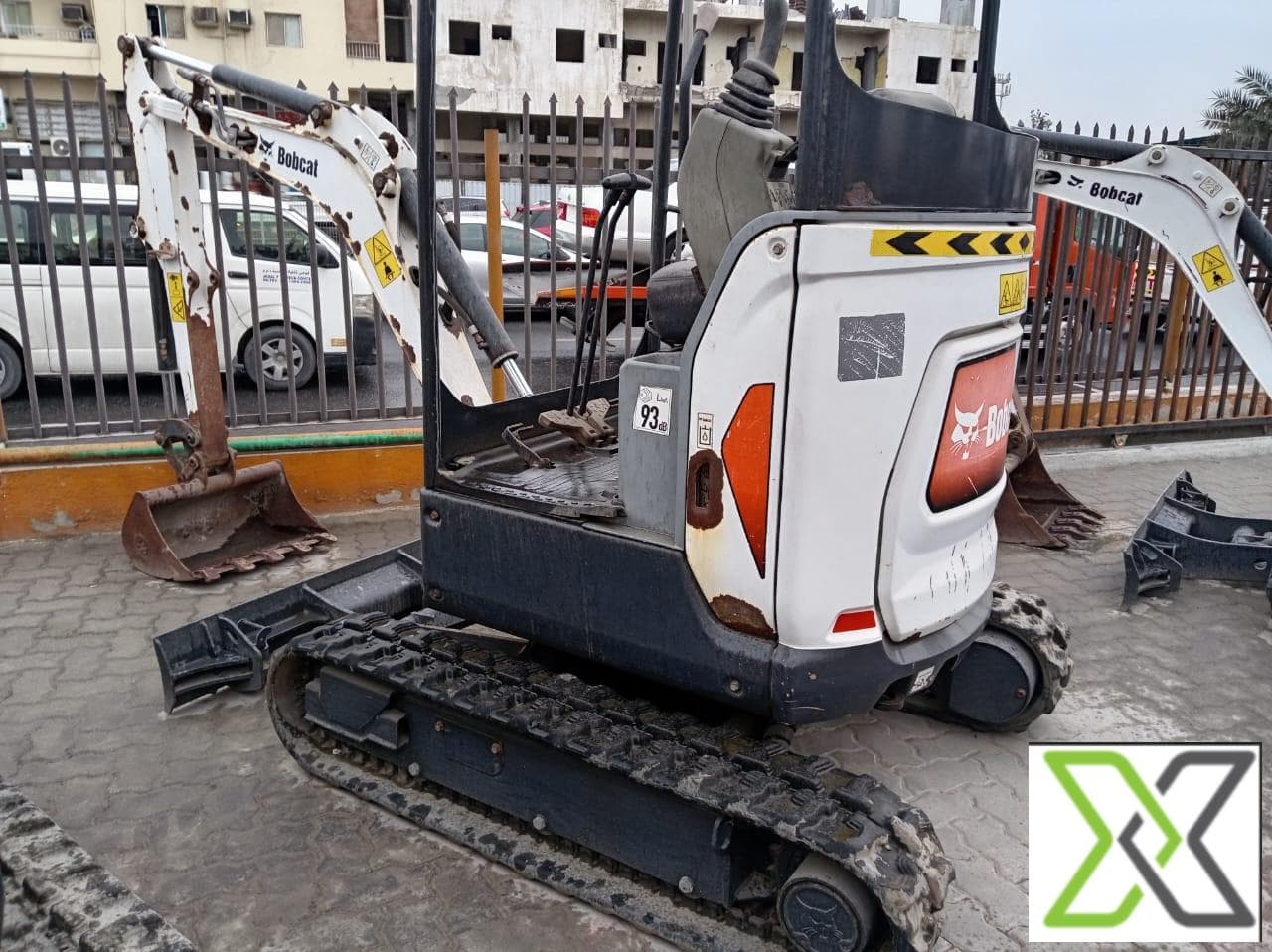

2 Ton Bobcat E20 Mini Excavator MEB107 - 2016

The Bobcat E20 Mini Excavator MEB107 is a versatile and compact 2-ton machine manufactured in 2016, ideal for light to medium-duty applications in urban construction, landscaping, utilities, and general excavation. Designed for tight workspaces, the E20 features a zero tail swing design that provides unrestricted rotation and operation near walls or other obstacles.

This model is powered by a Kubota D902-E4 diesel engine producing 14.9 kW (20 hp), delivering efficient, reliable performance. With an operating weight of approximately 2,000 kg, the E20 offers excellent stability and maneuverability, capable of working in confined areas while maintaining impressive performance specs.

Its hydraulic system offers a main flow of 55.4 l/min, with 22.5 l/min auxiliary flow—supporting a wide range of attachments. The excavator has a maximum digging depth of 2,445 mm, a dump height of 2,660 mm, and a ground reach of 4,150 mm. It offers a travel speed range of 2.0 to 4.0 km/h, allowing quick repositioning around the jobsite.

With a lift capacity of 700 kg and bucket digging force of 1,225 kg, the Bobcat E20 is a reliable choice for efficient small-scale excavation and material handling.

Specifications:

– Product Type: Mini Excavator
– Brand: Bobcat
– Model: E20 MEB107
– Year: 2016
– Operating Weight: 2,000 kg (4,409 lbs)
– Engine Power: 14.9 kW (20 hp)
– Engine Model: Kubota D902-E4
– Engine Type: Diesel
– Displacement: 0.9 L (56.1 cu in)
– Fuel Tank Capacity: 24.5 liters (6.5 gallons)
– Hydraulic System Flow: 55.4 l/min (14.6 gpm)
– Auxiliary Hydraulic Flow: 22.5 l/min (5.9 gpm)
– Travel Speed: 2.0 / 4.0 km/h (Low/High)
– Maximum Digging Depth: 2,445 mm (96.3 inches)
– Maximum Dump Height: 2,660 mm (104.7 inches)
– Maximum Ground Reach: 4,150 mm (163 inches)
– Tail Swing Radius: 1,000 mm (39.4 inches)
– Overall Dimensions (L×W×H): 3,830 × 1,550 × 2,410 mm
– Max Digging Force: 1,625 kg (3,580 lbs)
– Bucket Digging Force: 1,225 kg (2,698 lbs)
– Lift Capacity: 700 kg (1,543 lbs)
– Applications: Urban excavation, landscaping, utilities, small-scale construction

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
