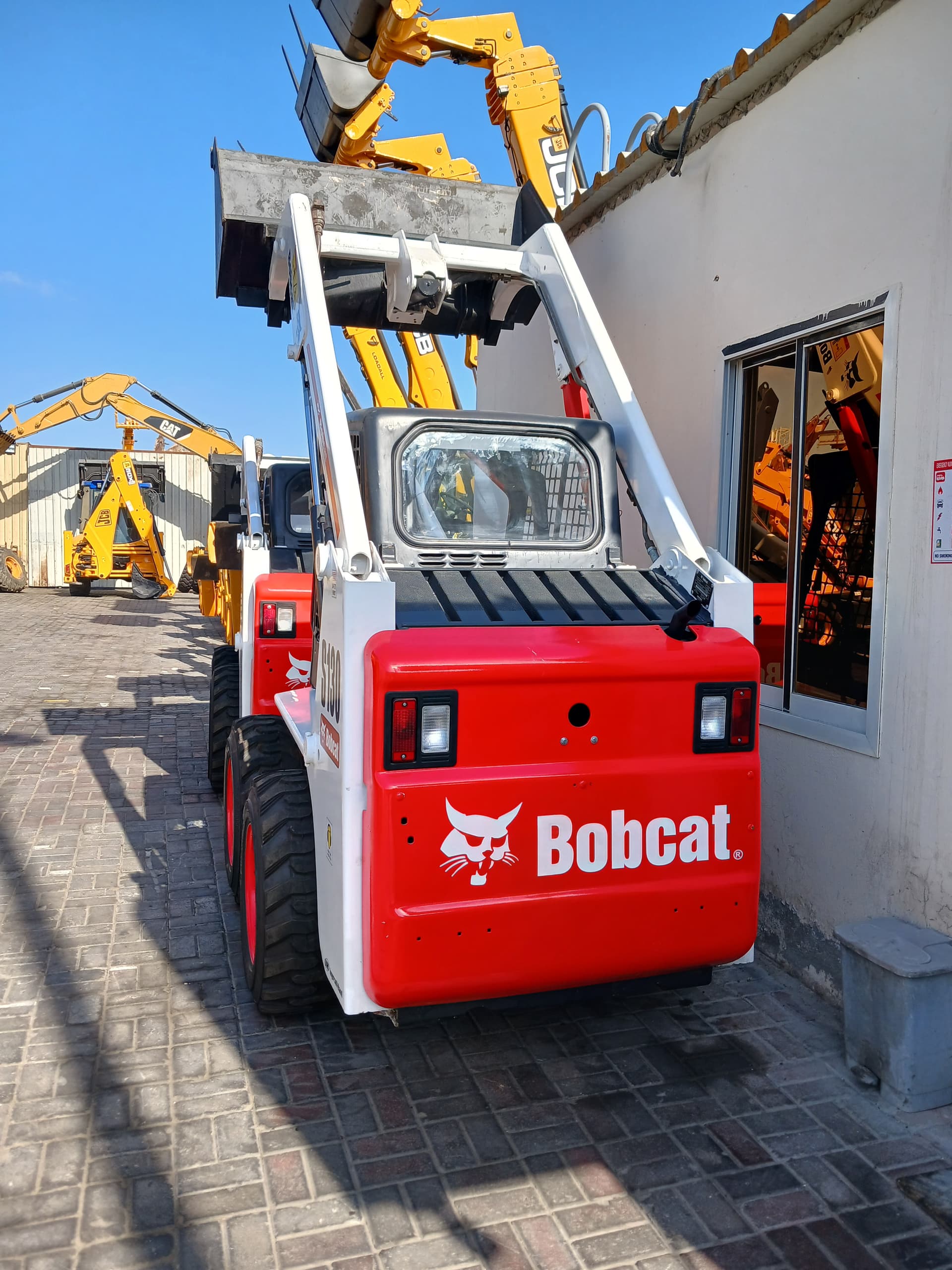

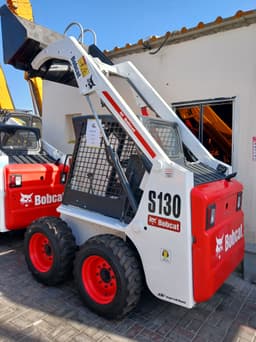

Bobcat S130 Skid Steer Loader, Compact Turbo Diesel Loader– 2014

The Bobcat S130 Skid Steer Loader (2014) is a high-performance, compact machine equipped for demanding lifting, loading, and digging tasks in confined spaces. Powered by a 64 HP turbocharged 4-cylinder Bobcat D24 diesel engine, it delivers robust performance with a displacement of 2.4 liters and a rated power output of 47.6 kW at 2,400 rpm.

This skid steer loader features a rated operating capacity of 590 kg (1,300 lbs), a tipping load of 1,180 kg, and a breakout force of 2,330 kg, making it ideal for construction, landscaping, utility work, and material handling. The hydraulic system supports a flow rate of 76 L/min at 200 bar pressure, enabling the use of a wide variety of attachments.

Designed with operator comfort and maneuverability in mind, the S130 includes 4-wheel drive, a turning radius of just 1,470 mm, and a top travel speed of 10.7 km/h. The unit's bucket capacity is 0.45 m³, with a maximum lift height of 3,050 mm and reach of 700 mm. The larger 74.5-liter fuel tank enhances operational runtime, and its Tier 4 emissions compliance ensures environmentally responsible operation.

Specifications:

– Brand: Bobcat
– Model: S130
– Year: 2014
– Type: Skid Steer Loader
– Engine Model: Bobcat D24
– Engine Type: 4-Cylinder, Turbocharged Diesel
– Engine Power: 47.6 kW (64 HP) @ 2,400 rpm
– Displacement: 2.4 L
– Fuel Tank Capacity: 74.5 L
– Emission Standard: Tier 4
– Operating Weight: 2,700 kg (5,952 lbs)
– Rated Operating Capacity: 590 kg (1,300 lbs)
– Tipping Load: 1,180 kg (2,603 lbs)
– Breakout Force (Lift Arm): 2,330 kg (5,135 lbs)
– Bucket Capacity: 0.45 m³ (0.6 yd³)
– Max Lift Height (at Pin): 3,050 mm (10.0 ft)
– Max Reach at Full Lift: 700 mm (2.3 ft)
– Hydraulic Flow: 76 L/min
– Hydraulic Pressure: 200 bar
– Drive Type: 4WD
– Tires: 12-16.5 (Radial)
– Maximum Speed: 10.7 km/h (6.6 mph)
– Turning Radius: 1,470 mm (4.8 ft)
– Gradeability: 30%

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
