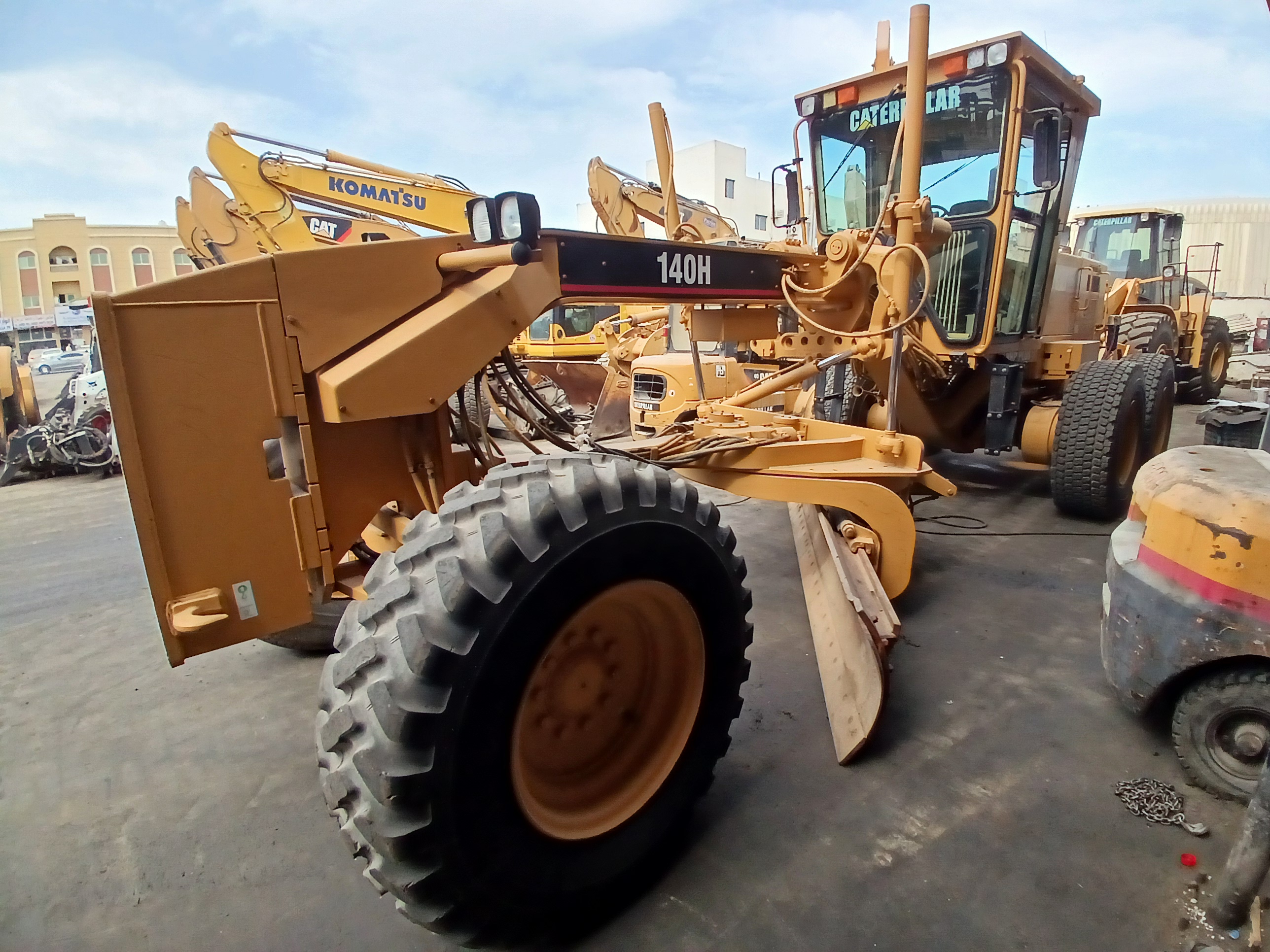

Caterpillar 140H Motor Grade

ReflowX SKU: REF-4708

Product Details

Quantity

1
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

Caterpillar Inc.
Equipment code

Get Quotation Whatsapp

Short Description

Manufacturer: Caterpillar Inc. Model: 140H Product Identification Number (PIN): 2ZK05351 Serial Number (Stamped): 2ZK05351 Type: Motor Grader

Description

Specifications

General Information

Brand: Caterpillar

Model: 140H

Type: Motor Grader

Operating Weight: 16,700 kg (36,800 lbs)

Engine Power: 140 kW (187 HP)

Blade Width: 3.66 m (12 ft)

Blade Lift Height: 395 mm (15.6 in)

Max. Blade Angle: 30°

Engine Specifications

Engine Model: Caterpillar 3306

Engine Type: 6-Cylinder, Turbocharged Diesel

Power Output: 140 kW (187 HP) @ 2,200 rpm

Displacement: 9.3 L

Fuel Tank Capacity: 378 L

Emission Standard: Tier 2

Grading Performance

Maximum Drawbar Pull: 102 kN (22,900 lbs)

Maximum Ripper Depth: 400 mm (15.7 in)

Maximum Blade Cutting Depth: 800 mm (31.5 in)

Maximum Blade Tilt: 30°

Dimensions & Weight

Overall Length (With Blade): 9,030 mm (29.6 ft)

Overall Width: 2,530 mm (8.3 ft)

Overall Height: 3,440 mm (11.3 ft)

Wheelbase: 5,130 mm (16.9 ft)

Ground Clearance: 400 mm (15.7 in)

Operating Weight: 16,700 kg (36,800 lbs)

Undercarriage & Mobility

Tires: 14.00-24 (Radial)

Drive Type: 6x4 Wheel Drive

Maximum Speed: 39 km/h (24 mph)

Turning Radius: 6.4 m (21 ft)

Gradeability: 30%

Operational & Safety Features

Fully Adjustable Hydraulic Blade for Precision Grading

Advanced ROPS/FOPS Certified Cab for Operator Protection

Electro-Hydraulic Controls for Easy Operation

Multi-Function Joystick for Blade and Ripper Control

Blade Lift Control for Smooth and Precise Adjustments

Ripper with Multi-Position Adjustment for Deep Excavation

Enhanced Stability and Traction with 6x4 Drive System

Integrated Diagnostics System for Maintenance Alerts

Variable Steering for Tight Maneuvering

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	Caterpillar - 140H
Height	3,440 mm (11.3 ft)
Width	2,530 mm (8.3 ft)
Length	9,030 mm (29.6 ft)
Weight	16,700 kg
Color	Yellow
Fuel type	Diesel
