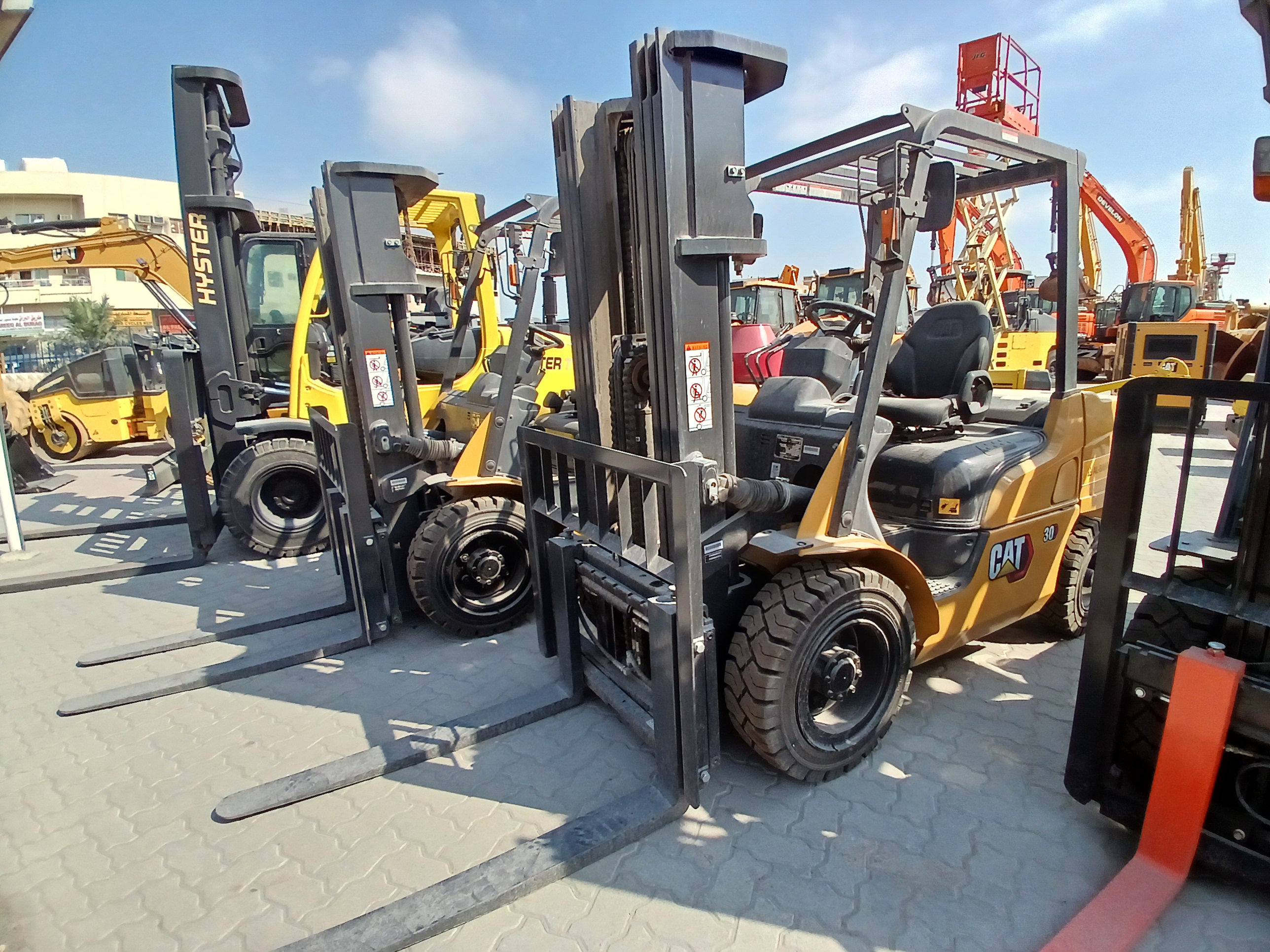

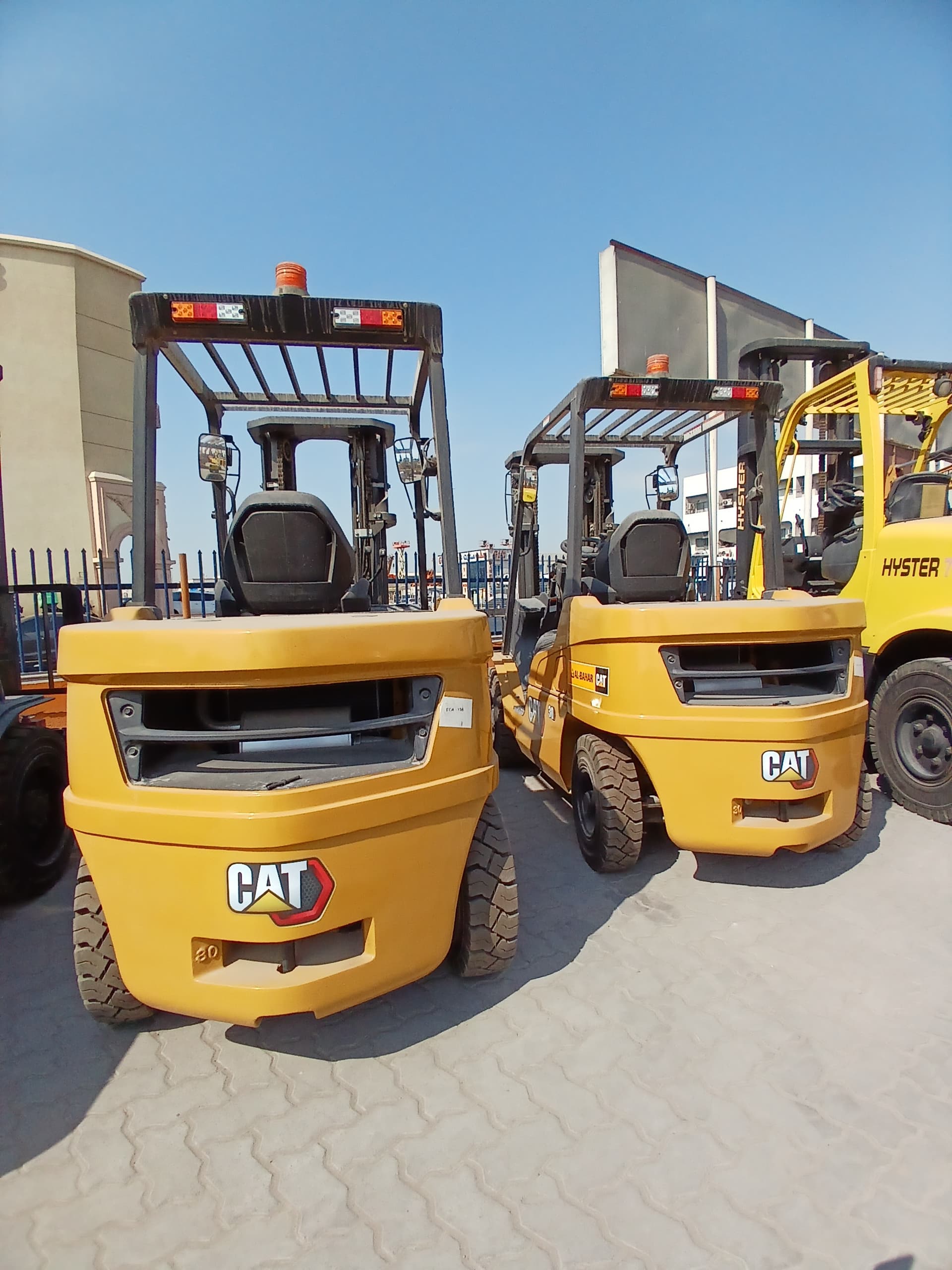

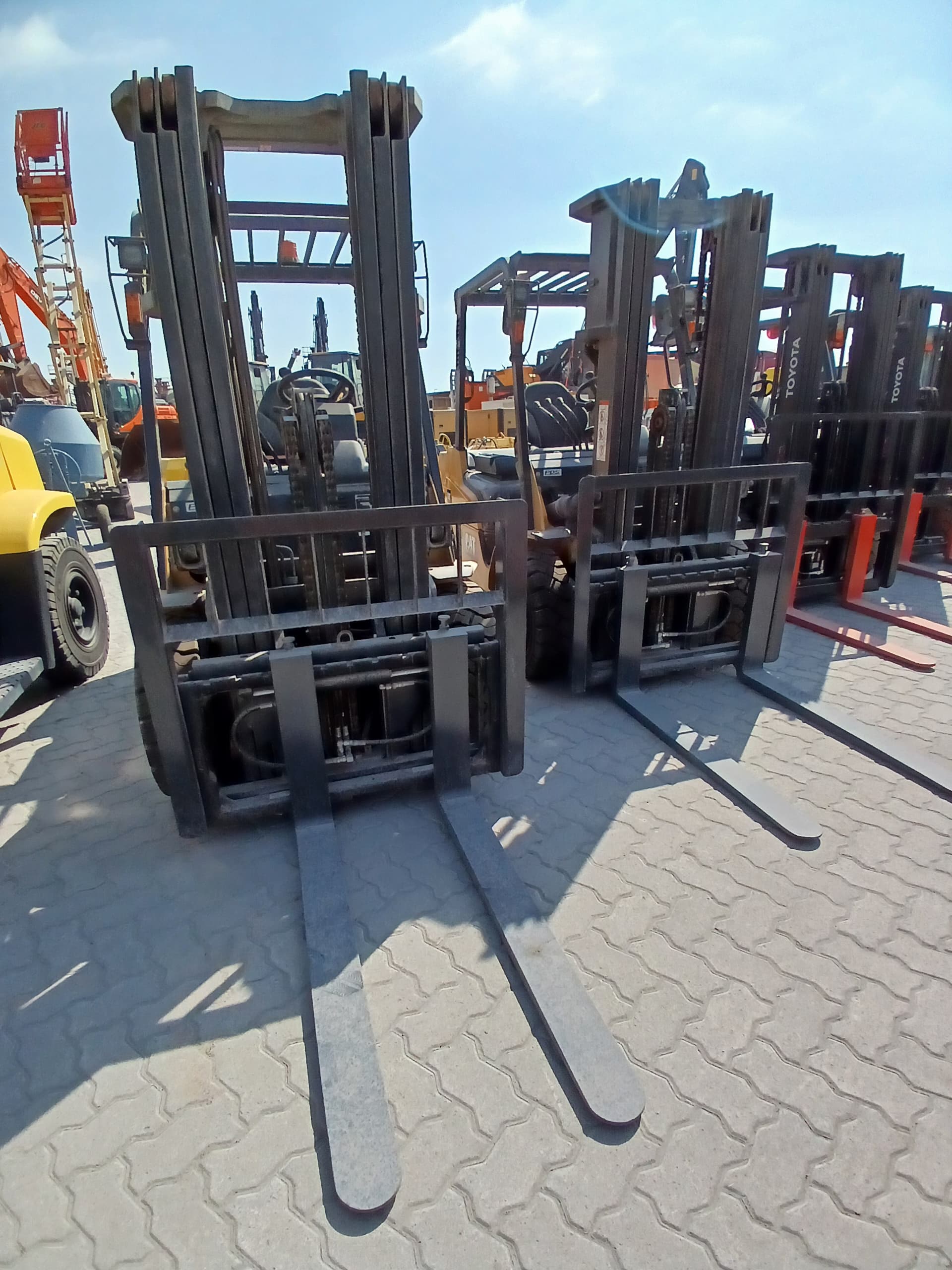

Caterpillar (CAT) Diesel Forklift Truck : DP30N1

ReflowX SKU: REF-3635

Product Details

Quantity

4
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

CAT
Equipment code

Get Quotation Whatsapp

Short Description

Brand: Caterpillar (CAT) Model: DP30N1 Type: Diesel Forklift Truck Serial Number: CT14J-15406 Manufactured by: Mitsubishi Heavy Industries Forklift (Dalian) Co., Ltd. Production Year: 2024

Description

Specifications

General Information

Brand: Caterpillar (CAT)

Model: DP30N1

Type: Diesel Forklift Truck

Load Capacity: 3,000 kg (6,614 lbs)

Load Center: 500 mm (19.7 in)

Lift Height: 3,000 - 6,000 mm (118 - 236 in) (varies based on mast option)

Mast Tilt (Forward/Backward): 6° / 12°

Fork Dimensions (Standard): 1,070 mm (42 in) Length × 125 mm (4.9 in) Width × 45 mm (1.8 in) Thickness

Wheelbase: 1,700 mm (66.9 in)

Engine Specifications

Engine Model: Mitsubishi S4S

Engine Type: 4-Cylinder, Water-Cooled, Diesel

Displacement: 3.3 L (201 in³)

Power Output: 35.3 kW (47.3 HP) @ 2,300 rpm

Torque: 177 Nm (130 lb-ft) @ 1,600 rpm

Fuel Tank Capacity: 60 L (15.9 gal)

Emissions Compliance: Tier 4 Final / EU Stage V

Transmission & Drive System

Transmission Type: Automatic Powershift with 1-speed forward and 1-speed reverse

Drive Axle: Heavy-duty industrial axle with wet disc brakes

Steering System: Hydrostatic Power Steering

Travel Speed (Loaded/Unloaded): 18 km/h (11.2 mph) / 19 km/h (11.8 mph)

Gradeability (Loaded): 35%

Hydraulic System

Hydraulic Flow Rate: 65 L/min (17.2 gal/min)

Hydraulic Pressure: 200 bar (2,900 psi)

Control System: Fingertip hydraulic control levers

Tires & Stability

Tire Type: Pneumatic or Solid (optional)

Front Tires: 28 × 9 - 15

Rear Tires: 6.50 - 10

Turning Radius: 2,300 mm (90.5 in)

Ground Clearance: 135 mm (5.3 in)

Operational & Safety Features

ROPS/FOPS Certified Enclosed Operator Cabin

Ergonomic Adjustable Suspension Seat

Multi-Function LCD Display for Real-Time Monitoring

Hydraulic Steering for Smooth Maneuvering

Automatic Engine Shutdown for Overheat and Low Oil Pressure

Overhead Guard for Enhanced Operator Safety

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Height	2,140 mm
Width	1,225 mm
Length	2,670 mm
Weight	4,340 kg
ISO 15926 Pt 4	8373
PCA RDS Code	RDS11590075
CFIHOS ID	CFIHOS-30000567
