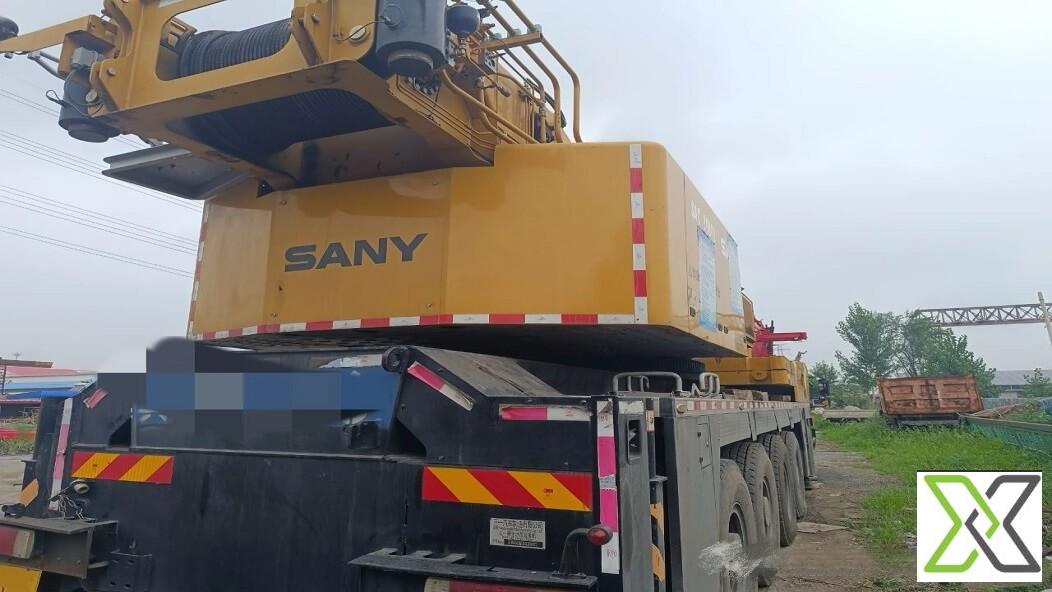

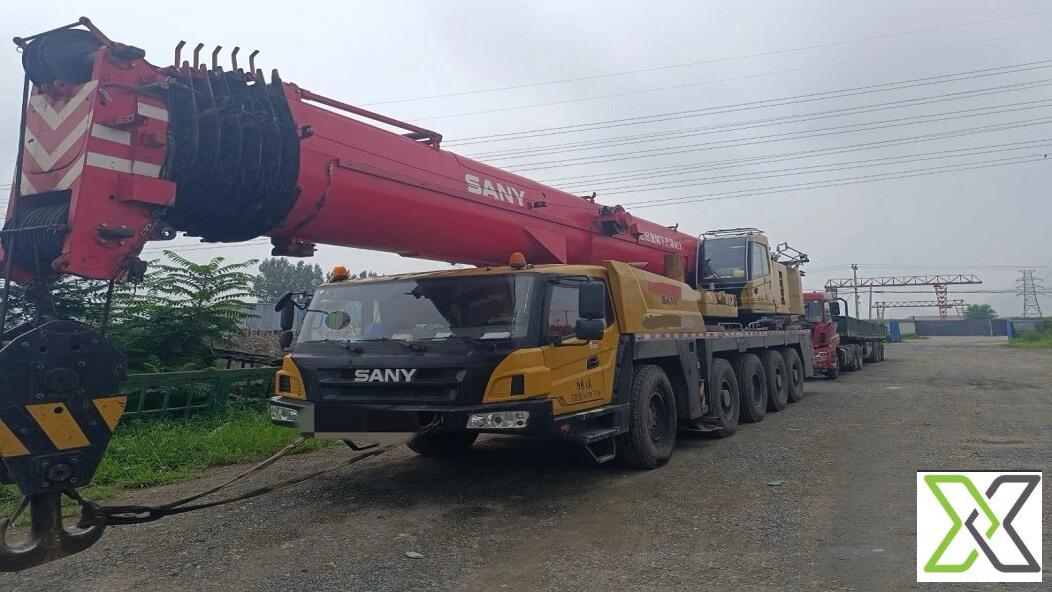

SANY 130-Ton All-Terrain Crane - SAC1300T2

Description:

The SANY SAC1300T2 is an advanced 130-ton all-terrain crane engineered for demanding lifting operations in infrastructure, energy, and industrial sectors. It features a 75-meter 7-section telescopic main boom and a 32-meter jib, enabling a maximum lifting height of 104.5 meters, ideal for tall structures and long-reach applications.

Its powerful Weichai WP12.460E50 engine ensures reliable and consistent performance. The crane boasts a maximum lifting moment of 5174 kN·m and a robust 54.5-ton counterweight, providing exceptional stability during heavy lifts.

With overall dimensions of 15900 × 2800 × 4000 mm, this all-terrain model offers a combination of strength and agility. The estimated operational weight is approximately 61,500 kg, aligning with its high-capacity and heavy-duty profile.

Specifications:

– Product Type: All-Terrain Crane
– Brand: SANY
– Model: SAC1300T2
– Max. Lifting Capacity: 130 tons
– Max. Boom Length: 75 meters
– Max. Jib Length: 32 meters
– Max. Lifting Height: 104.5 meters
– Max. Lifting Moment: 5174 kN·m
– Boom Type: 7-section telescopic boom
– Engine Model: Weichai WP12.460E50
– Engine Power: Approx. 338 kW (460 HP)
– Counterweight: 54.5 tons
– Overall Dimensions (L × W × H): 15900 × 2800 × 4000 mm
– Estimated Operating Weight: **~61,500 kg**
– Turning Radius: ≤9 meters (typical for this class)
– Application Areas: High-rise, petrochemical, wind energy, bridge construction
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
