SANY SAC1300T 130-Ton All-Terrain Crane

ReflowX SKU: REF-4623

Product Details

Quantity

1
Availability (Lead Time)

0-2 Weeks
Product Location

China
Condition

Surplus
OEM

SANY Automobile Manufacturing Co., Ltd.
Equipment code

Get Quotation Whatsapp

Short Description

The SANY SAC1300T is a 130-ton all-terrain crane with a 73-meter boom and up to 100.2-meter lifting height. Featuring a 50.5-ton counterweight and 5116 kN·m lifting moment, its estimated weight is ~60,000 kg.

Description

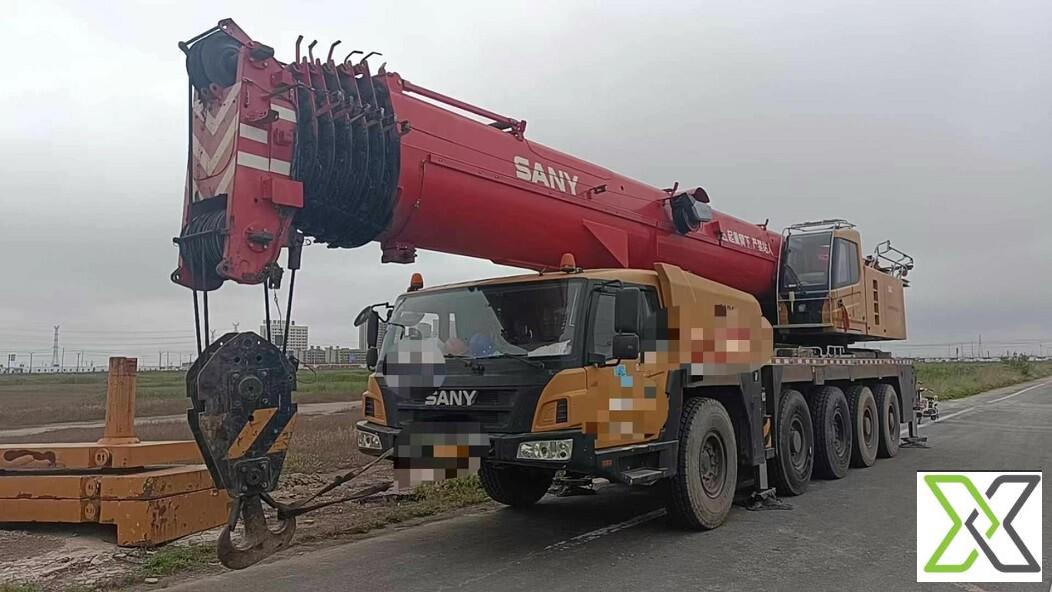

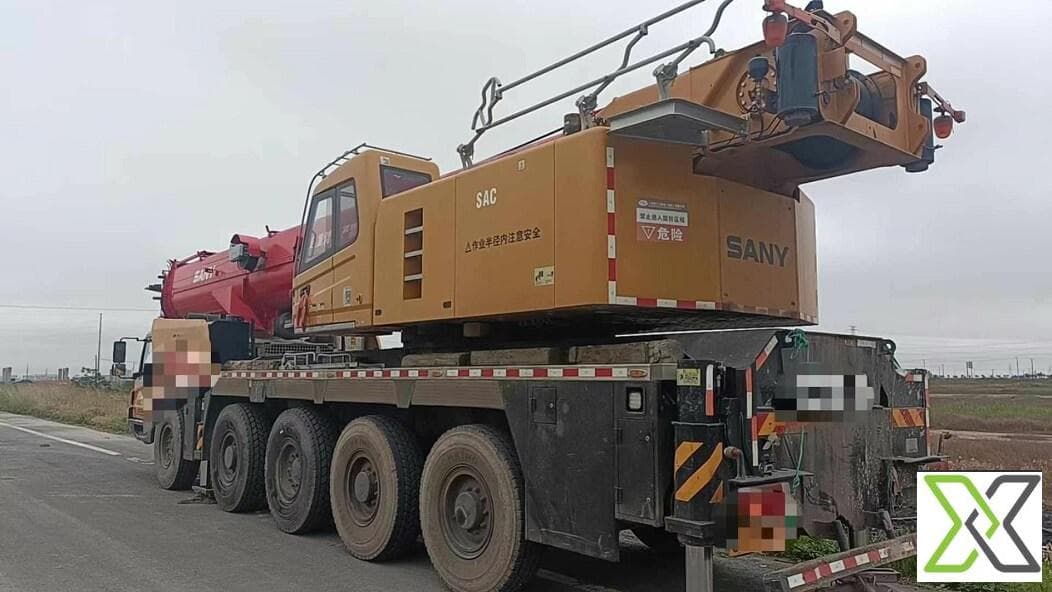

SANY SAC1300T 130-Ton All-Terrain Crane
Description:

The SANY SAC1300T is a high-capacity 130-ton all-terrain crane engineered for demanding lifting operations across industrial, infrastructure, and energy sectors. With a 73-meter main boom and an optional 27.2-meter jib, it can reach a maximum lifting height of 100.2 meters, making it highly suitable for tall structures and extended radius lifts.

The crane is driven by a Weichai WP12.460E50 engine, delivering robust performance under load. Its maximum lifting moment of 5116 kN·m and 50.5-ton counterweight provide enhanced lifting strength and exceptional stability.

Designed for flexibility and ease of movement, the SAC1300T features a minimum turning radius of 8.5 meters, allowing maneuverability even in restricted job sites. With an overall dimension of 15530 × 2800 × 4000 mm, and an estimated operating weight of around 60,000 kg, the SAC1300T delivers both power and precision for high-stakes lifting operations.

Specifications:

– Product Type: All-Terrain Crane
– Brand: SANY
– Model: SAC1300T
– Max. Lifting Capacity: 130 tons
– Max. Boom Length: 73 meters
– Max. Jib Length: 27.2 meters
– Max. Lifting Height: 100.2 meters
– Max. Lifting Moment: 5116 kN·m
– Boom Type: 6 or 7-section telescopic main boom
– Engine Model: Weichai WP12.460E50
– Engine Power: Approx. 338 kW (460 HP)

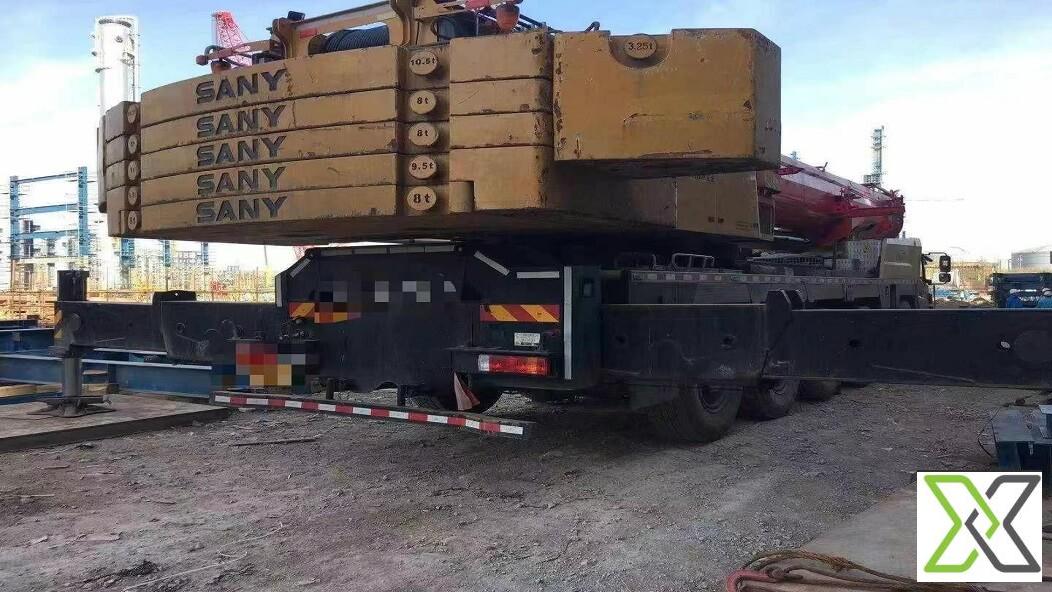

– Counterweight: 50.5 tons
– Min. Turning Radius: 8.5 meters
– Overall Dimensions (L × W × H): 15530 × 2800 × 4000 mm
– Estimated Operating Weight: **~60,000 kg**
– Application Areas: Large-scale infrastructure, energy plants, heavy equipment installation
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	SAC1300T
Manufacturer Name	SANY
Counterweight	50.5 tons
Max. Lifting Capacity	130 tons
Max. Boom Length	73 meters
Max. Jib Length	27.2 meters
Max. Lifting Moment(KN.m)	5116 kN·m
Engine Model	Weichai WP12.460E50
Overall dimensions (length x width x height) (mm)	15530 × 2800 × 4000 mm
