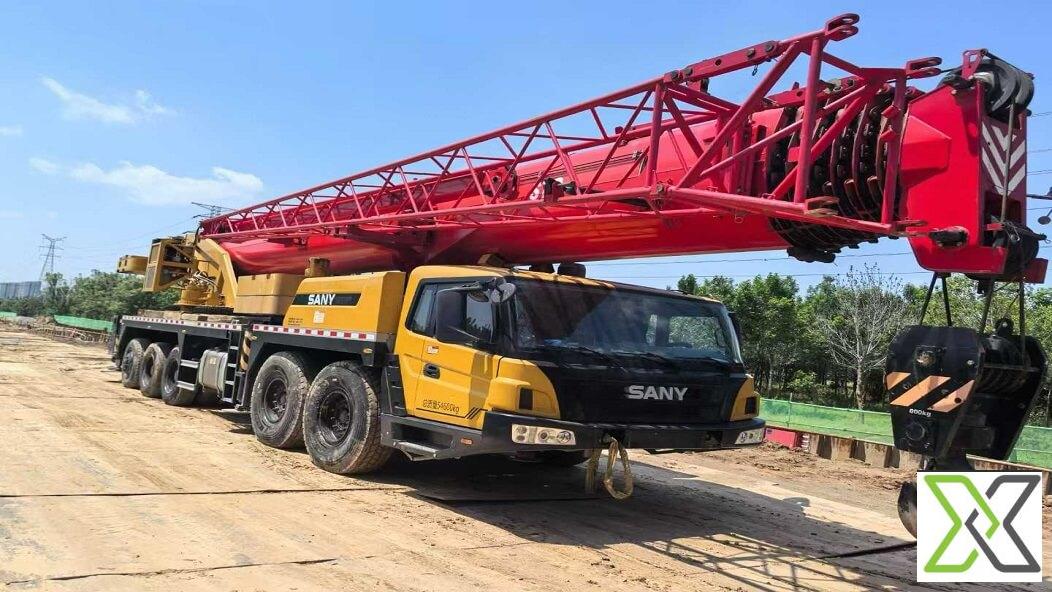

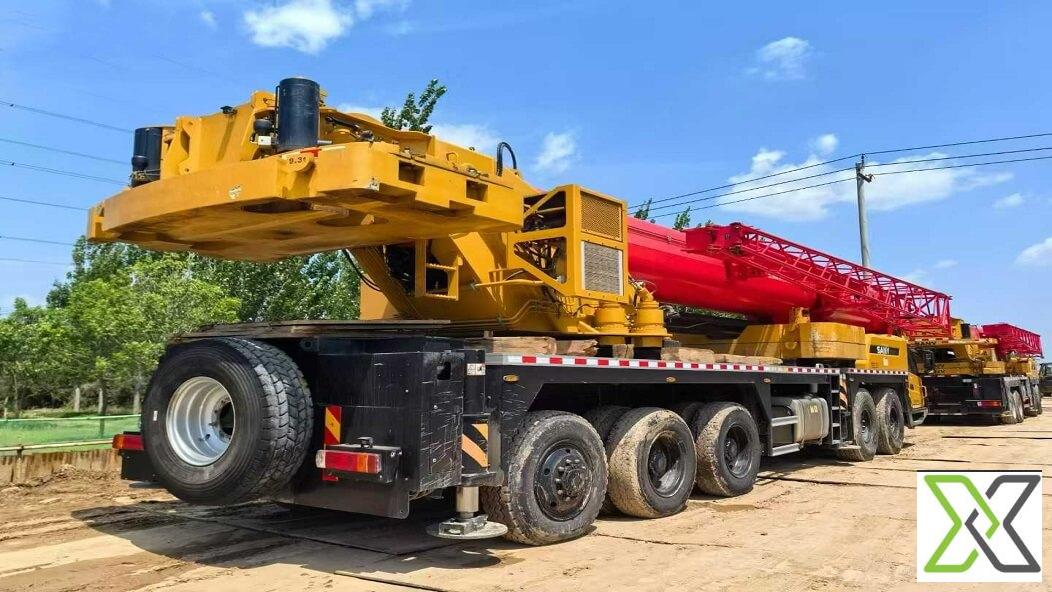

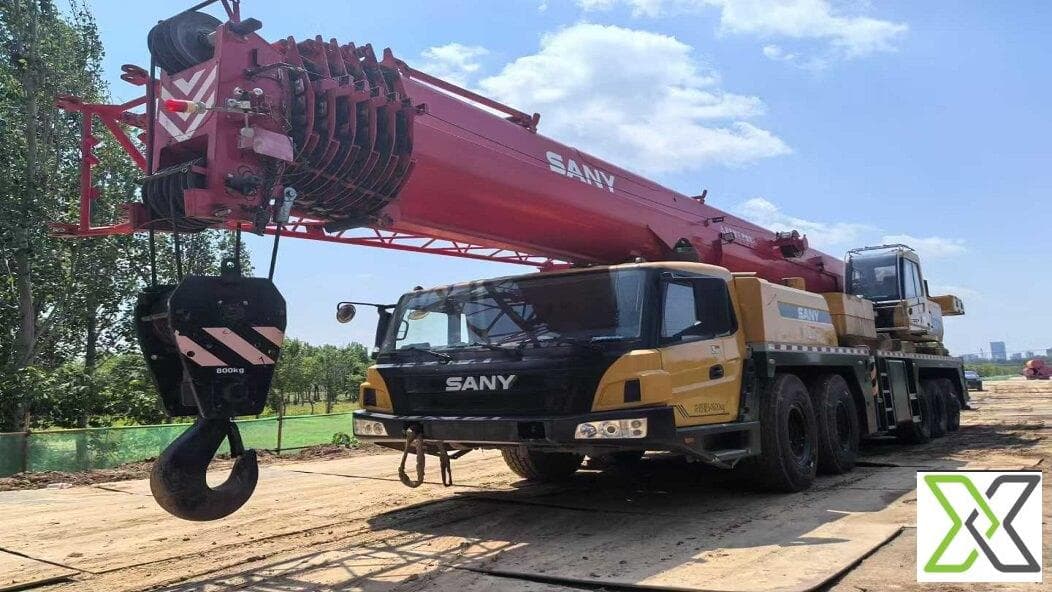

SANY STC1000C7 100-Ton Truck Crane
Description:

The SANY STC1000C7 truck crane offers outstanding performance for demanding construction projects with its 100-ton lifting capacity and advanced lifting geometry. The crane comes with a 7-section, 75.5-meter oval-shaped telescopic boom, extendable with a 17.5-meter jib for a maximum lifting height of 102.5 meters, making it suitable for high-rise building and infrastructure operations.

Powered by the Weichai WP12.400E62 diesel engine, it delivers consistent output and operational reliability. The crane achieves a maximum lifting moment of 4057 kN·m at the base boom. Its counterweight system, rated at 41 tons and expandable to 46 tons, ensures enhanced lifting stability.

With an outrigger span of 8.1 meters, the STC1000C7 provides a wide and firm stance during heavy lifts. It has an overall transport dimension of 16240 × 3000 × 3995 mm, and the estimated operating weight is approximately 51,500 kg, ensuring road mobility and jobsite readiness.

Specifications:

– Product Type: Truck Crane
– Brand: SANY
– Model: STC1000C7
– Max. Lifting Capacity: 100 tons
– Max. Boom Length: 75.5 meters
– Max. Jib Length: 17.5 meters
– Max. Lifting Height: Up to 102.5 meters
– Max. Lifting Moment: 4057 kN·m
– Boom Type: 7-section oval-shaped telescopic boom
– Engine Model: Weichai WP12.400E62
– Engine Power: Approx. 294 kW
– Counterweight: 41 tons (expandable to 46 tons)
– Outrigger Span: 8.1 meters
– Overall Dimensions (L × W × H): 16240 × 3000 × 3995 mm
– Estimated Operating Weight: **~51,500 kg**
– Applications: High-rise construction, industrial installations, infrastructure development
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
