SANY STC550T 55-Ton Hydraulic Truck Crane

ReflowX SKU: REF-8147

Product Details

Quantity

1
Availability (Lead Time)

0-2 Weeks
Product Location

China
Condition

Surplus
OEM

FC Machinery Equipment Co. Limited
Equipment code
Shipping Rate

Get Quotation Whatsapp

Short Description

The SANY STC550T is a high-performance 55-ton truck crane featuring a 46-meter boom, 16.5-meter jib, and 2107 kN·m lifting moment. It offers excellent stability, powerful lifting, and fast transport for demanding job sites.

Description

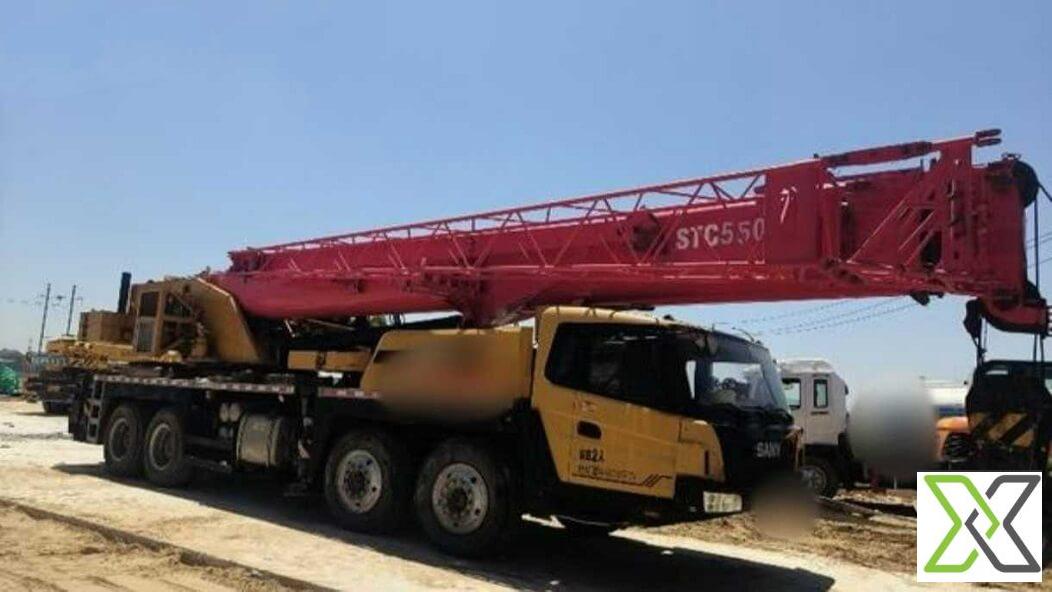

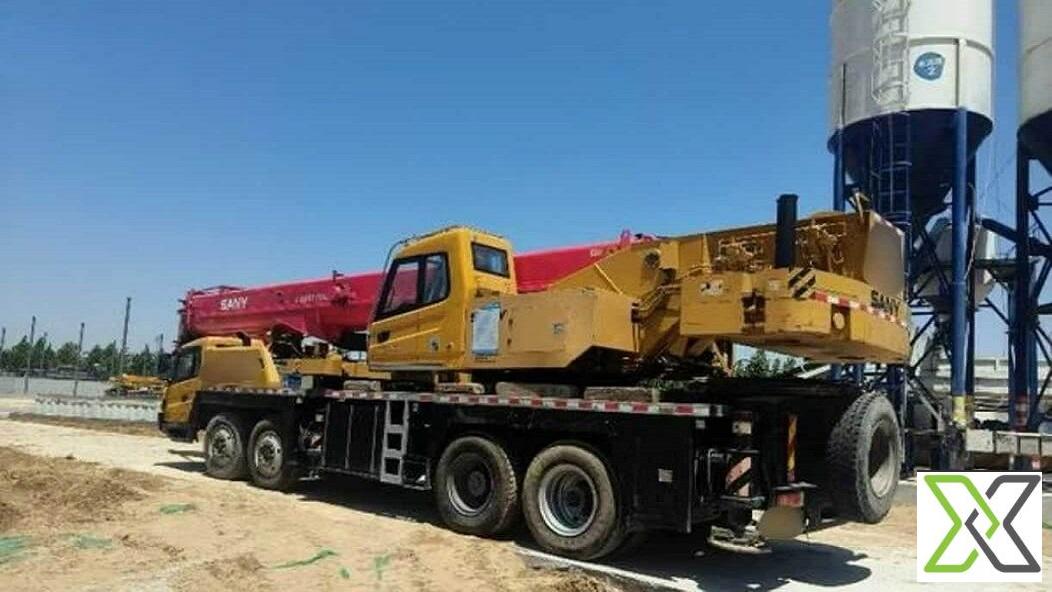

SANY STC550T 55-Ton Hydraulic Truck Crane
Description:

The SANY STC550T is a robust and reliable 55-ton truck crane, designed for modern construction, infrastructure, and industrial lifting operations. It combines high load capacity, intelligent control systems, and fast operation to meet the demands of heavy lifting projects with precision and safety.

Equipped with a Weichai WP10.375E53 engine, the STC550T generates 276 kW of power, providing reliable performance and high fuel efficiency. Its maximum lifting moment of 2107 kN·m enables handling of heavy loads with ease. The 46-meter main boom, extendable with a 16.5-meter jib, delivers excellent reach and versatility for complex lifting tasks.

The crane's maximum lifting height reaches 62.5 meters, and the single-rope winch speed of 145 m/min ensures quick hoisting operations. With a 10.5-ton counterweight and outrigger spans of 6.13 meters (longitudinal) and 7.4 meters (transverse), the STC550T maintains exceptional stability, even on uneven ground.

The driving performance includes a top speed of 90 km/h and gradeability of 47%, making it adaptable for fast transfer between job sites and effective in hilly terrain.

The operator cab is spacious and ergonomically designed, with intuitive controls and advanced monitoring systems to improve safety, comfort, and overall efficiency.

Specifications:
– Product Type: Hydraulic Truck Crane
– Brand: SANY
– Model: STC550T
– Rated Lifting Capacity: 55 tons
– Max. Boom Length: 46 meters
– Max. Jib Length: 16.5 meters
– Max. Lifting Height: 62.5 meters (with jib)
– Max. Lifting Moment: 2107 kN·m
– Winch Speed (Single Rope): 145 m/min
– Counterweight: 10.5 tons
– Outrigger Span (Longitudinal × Transverse): 6.13 × 7.4 meters
– Engine Model: Weichai WP10.375E53
– Engine Power: 276 kW (375 HP)
– Drive Type: 6×4 or 8×4 heavy-duty chassis
– Top Travel Speed: 90 km/h
– Gradeability: 47%
– Operating Weight: Estimated 42,000–46,000 kg
– Overall Dimensions (L × W × H): 14,350 × 2800 × 3820 mm
– Cab Features: Ergonomic, air-conditioned, multifunctional control panel
– Use Cases: Civil construction, bridge erection, plant installations, infrastructure
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	STC550T
Manufacturer Name	SANY
Counterweight	10.5
Max. Lifting Capacity	55
Max. Boom Length	46
Max. Jib Length	16.5
Max. Lifting Moment(KN.m)	2107
Engine Model	Weichai WP10.375E53
Overall dimensions (length x width x height) (mm)	14350 x 2800x3820
